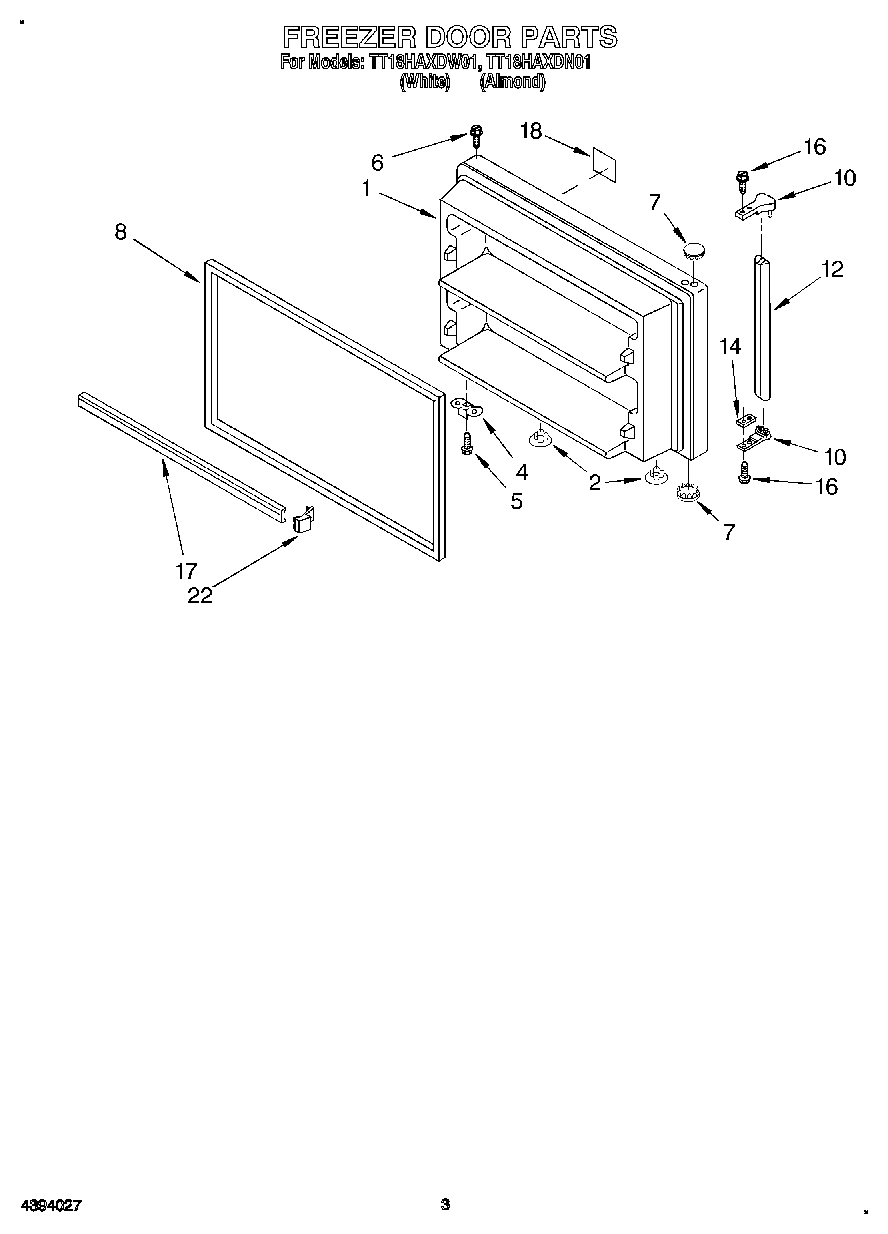

TT18HAXDW01 02 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Almond)
1Freezer Door Panel (White)
2Hole Plug (2)
2Hole Plug (2) (Almond)
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
82159327 Whirlpool Refrigerator Door Gasket
10Handle End
12Handle, Center (White)
12Handle, Center (Almond)
14Spa
16WP488920 Whirlpool Refrigerator Screw
17TRIM-DOOR
182200749 Whirlpool Refrigerator Nameplate
18Nameplate (Almond Model)
22WP2156003 Whirlpool Refrigerator Door Shelf End Cap
