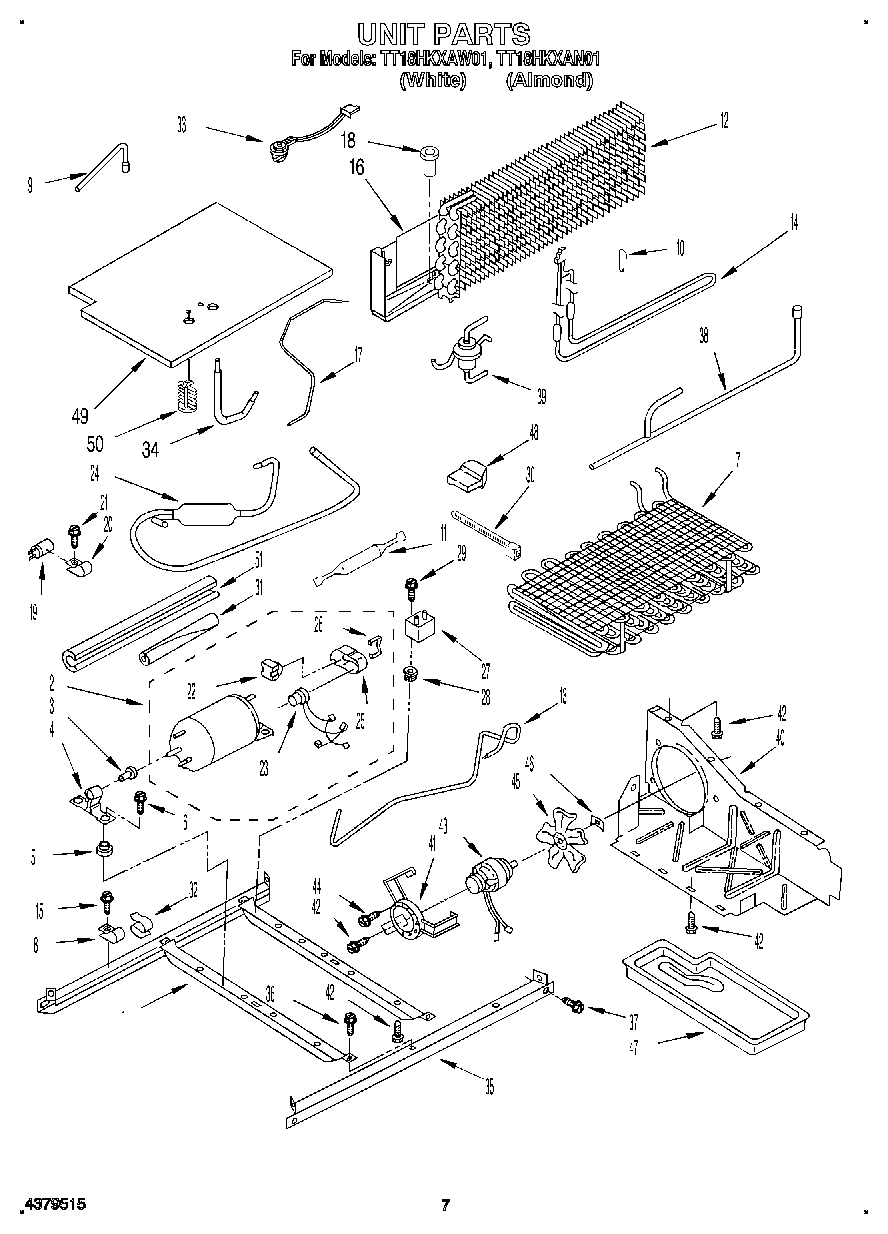

TT18HKXAN01 06 – UNIT

Products

PositionProduct
1Unit, Frame
2Compressor KIt Includes Items 22 (23, 25, 26 & 27)
3Grommet, Compressor Bracket
4Bracket, Mounting
5Grommet, Compressor (4)
6Screw (4)
7Condenser Assembly
8Clamp Tube
9Tube, Process
10Support, Heater
11W10843121 Whirlpool Refrigerator Tube
12Evaporator
13Tube, Discharge
14Heater, Defrost
15WP489478 Whirlpool Refrigerator Screw
16Drain Pan & Heat Shield
17Tube, Condenser To Fluid Valve
18Drain Fitting
19Capacitor, Start
20Tube Clamp
21WP489128 Whirlpool Refrigerator Screw
22Relay, Start (See Overload)
23Overload (Production (Includes Relay))
23Overload (Service (Includes Relay))
24Muffler
25Terminal Cover (Service)
26Strap, Cover
27WPW10662129 Whirlpool Refrigerator Run Capacitor
28Screw Grommet
29W11693756 Whirlpool Screw Assembly
30WPW10339879 Whirlpool Wire Tie
31Sleeve
32Clip, Wire (2)
33WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
34Tube Fluid Valve To Heat Loop
35Unit, Rail
36WP489427 Whirlpool Refrigerator Screw
37489340 Whirlpool Refrigerator Screw
38Tube Assembly, Suction Line
39Fluid Control Valve
40Air, Baffle
41Fan, Mounting Bracket
42WP489464 Whirlpool Refrigerator Screw
43833697 Whirlpool Condenser Fan Motor
44681390 Whirlpool Refrigerator Screw
45Fan Blade
46WP486692 Whirlpool Refrigerator Nut
47Tray, Evaporator
48Wedge, Air Baffle
49Cover, Unit Bottom
50489396 Whirlpool Refrigerator Clip
51978026 Whirlpool Refrigerator Primary Valve
51WP2002171 Whirlpool Refrigerator Sleeve
51VALVE, ACCESS (5/8“)
51VALVE, ACCESS (1/2“)
51WP978025 Whirlpool Refrigerator Valve
51978030 Whirlpool Refrigerator Valve
51978027 Whirlpool Refrigerator Primary Valve
51876764 Whirlpool Refrigerator Primary Valve
