TT18HPXLQ01 05 – LINER

TT18HPXLQ01 05 – LINER

Written by

in

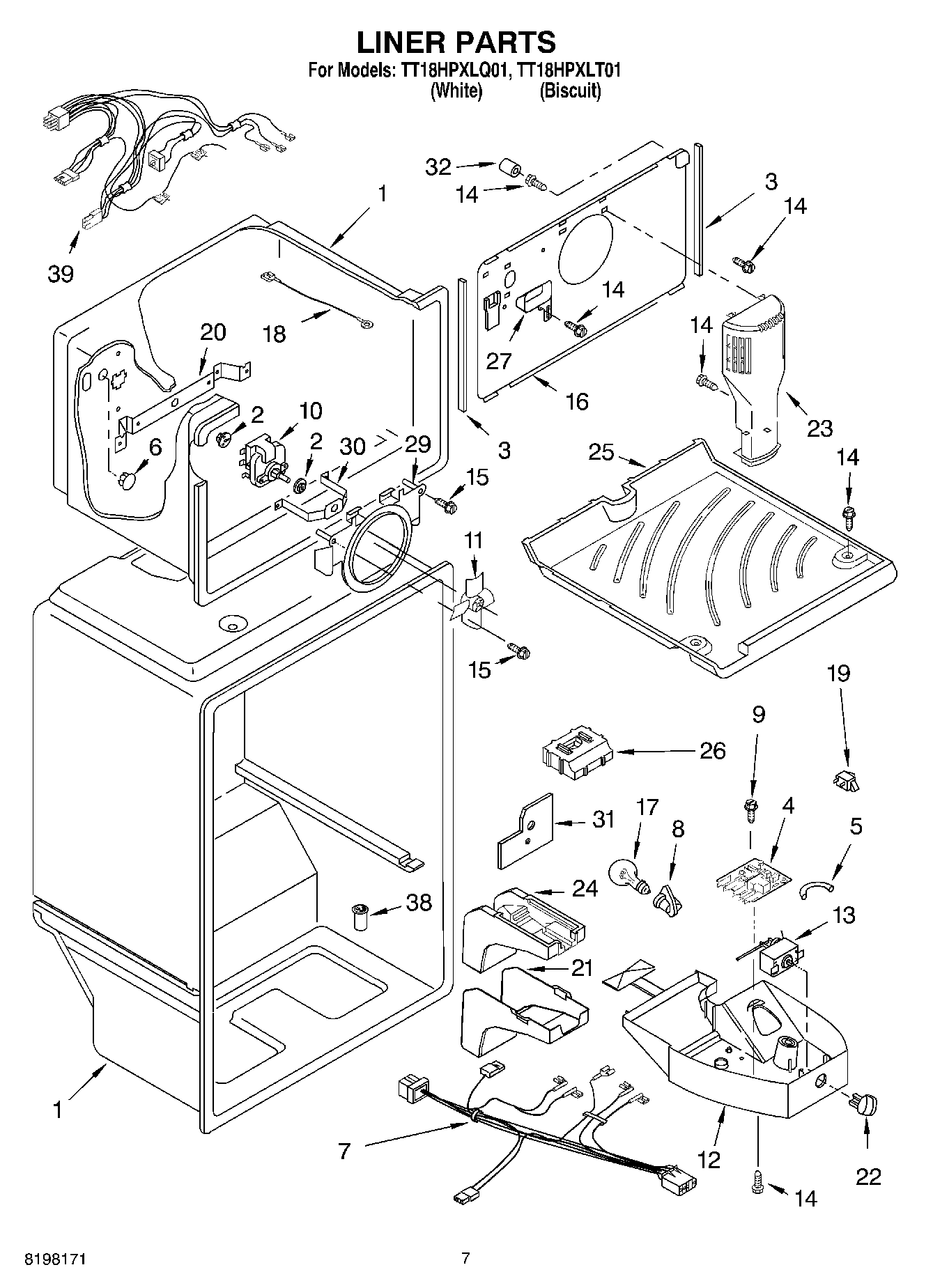

TT18HPXLQ01 05 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control
5WP2196003 Whirlpool Refrigerator Bar Riser
6WP941839 Whirlpool Refrigerator Button Plug
7Defrost Bi-metal
84387478 Whirlpool Refrigerator Light Socket
9WP98129 Whirlpool Screw
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13WP2204605 Whirlpool Refrigerator Thermostat
14WP489478 Whirlpool Refrigerator Screw
15WP489464 Whirlpool Refrigerator Screw
16Cover-Evaporator
17W10887190 Whirlpool Refrigerator Light Bulb
18Wire Assembly, Ground
19W11384469 Whirlpool Door Switch
20Bracket, Evap. Fan, Rear
21Cover, Air Diffuser
22WP2202885 Whirlpool Refrigerator Thermal Knob
23Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25Freezer Floor
26Air Diffuser, Top
27Cover, Hole
29Bracket, Fan Motor
30Bracket, Evap. Fan, Front
31Shield, heat
32WP487996 Whirlpool Refrigerator Cap Tube
38WP2210509 Whirlpool Refrigerator Tub Valve
39Wire Assembly, Freezer Compartment
