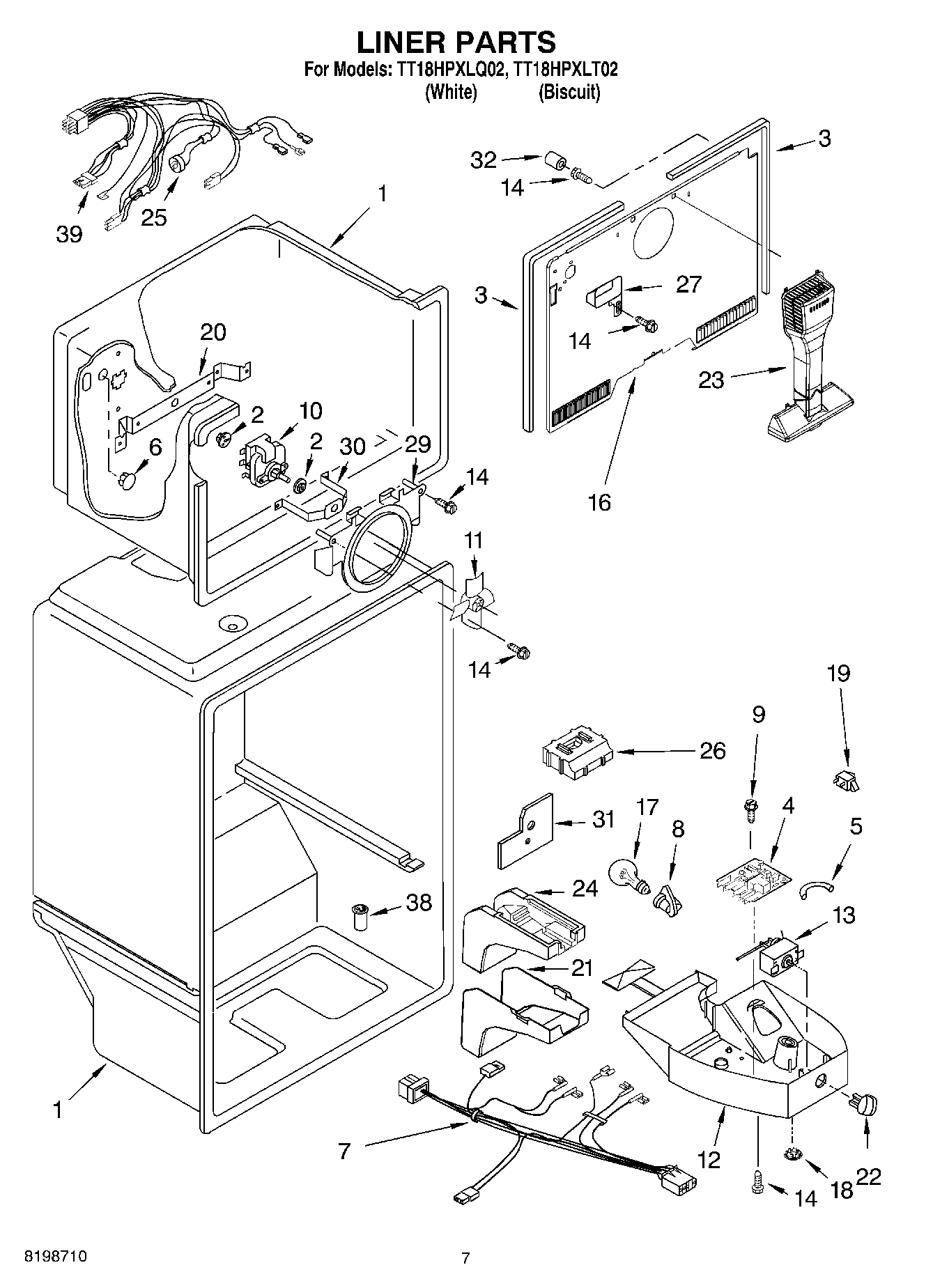

TT18HPXLT02 05 – LINER PARTSadmin2025-04-26T12:56:03+00:00TT18HPXLT02 05 – LINER PARTS
Products
| Position | Product |
|---|
| 1 | Liner (Not A Serviceable Part) |
| 2 | WP2264462 Whirlpool Refrigerator Grommet |
| 3 | WP2254360 Whirlpool Refrigerator Gasket |
| 4 | WP2304099-includeCORE Whirlpool WP2304099 Refrigerator Electronic Control |
| 5 | WP2196003 Whirlpool Refrigerator Bar Riser |
| 6 | WP941839 Whirlpool Refrigerator Button Plug |
| 7 | Defrost Bi-metal |
| 8 | 4387478 Whirlpool Refrigerator Light Socket |
| 9 | WP98129 Whirlpool Screw |
| 10 | WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor |
| 11 | WP2163777 Whirlpool Refrigerator Fan Blade |
| 12 | Control Box |
| 13 | WP2204605 Whirlpool Refrigerator Thermostat |
| 14 | WP489478 Whirlpool Refrigerator Screw |
| 16 | Cover-Evaporator |
| 17 | W10887190 Whirlpool Refrigerator Light Bulb |
| 18 | 940014 Whirlpool Refrigerator Primary Button Plug |
| 19 | W11384469 Whirlpool Door Switch |
| 20 | Bracket, Evap. Fan, Rear |
| 21 | Cover, Air Diffuser |
| 22 | WP2202885 Whirlpool Refrigerator Thermal Knob |
| 23 | WP2254354 Whirlpool Refrigerator Air Tower |
| 24 | WP2189452 Whirlpool Refrigerator Diffuser |
| 25 | WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat |
| 26 | Air Diffuser, Top |
| 27 | Cover, Hole |
| 29 | Bracket, Fan Motor |
| 30 | Bracket, Evap. Fan, Front |
| 31 | Shield, heat |
| 32 | WP487996 Whirlpool Refrigerator Cap Tube |
| 38 | WP2210509 Whirlpool Refrigerator Tub Valve |
| 39 | Wire Assembly, Freezer Compartment |
