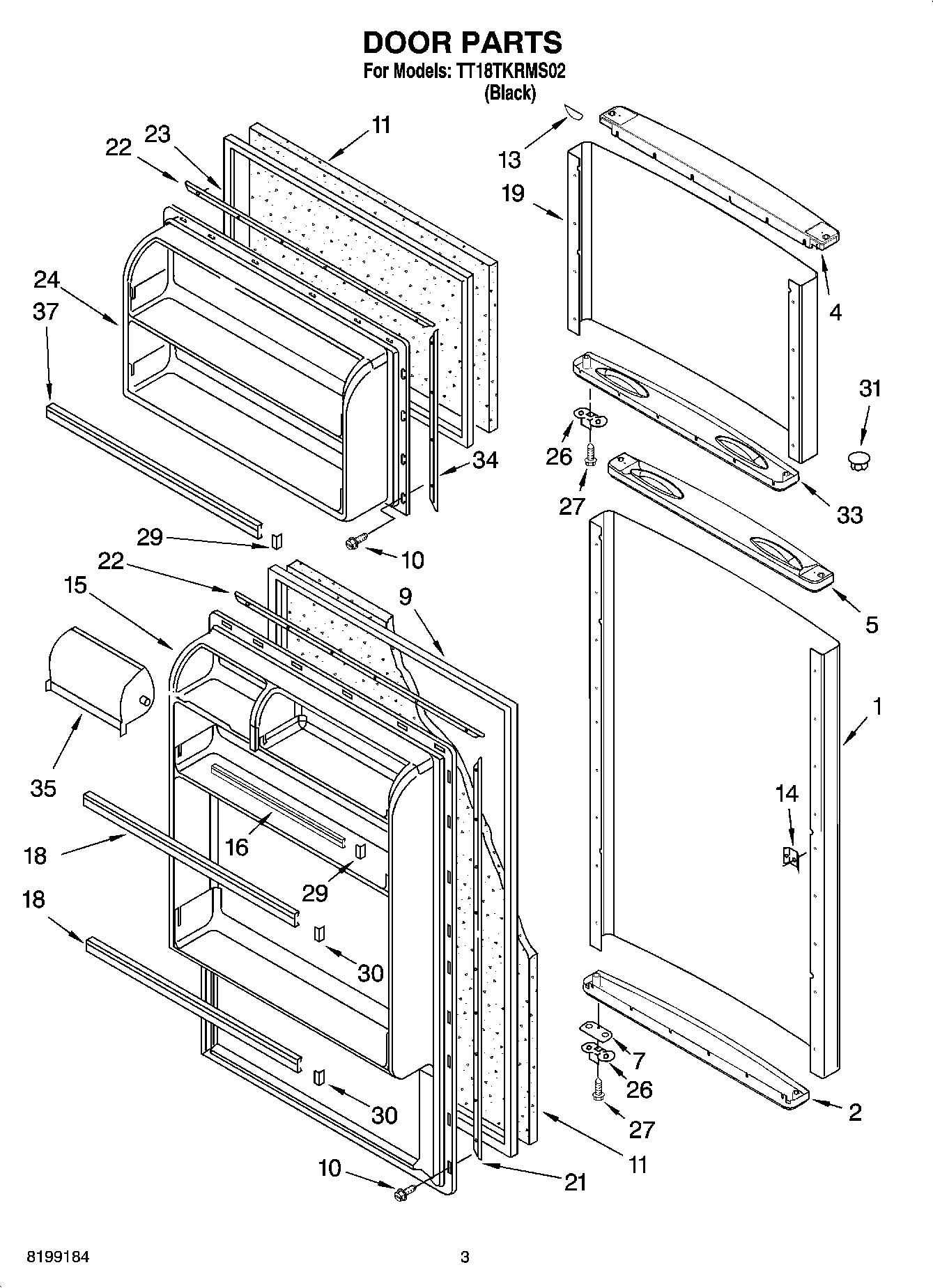

TT18TKRMS02 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel (Includes Items 5 & 6) (Also Order Item 11) (Stainless Steel)
2	End Cap-Bottom
4	2252863 Whirlpool Refrigerator Door Trim
5	Endcap, Handle (Refrigerator)
7	2258681B Whirlpool Refrigerator Shim
9	WP2319264B Whirlpool Door Gasket
10	WP489442 Whirlpool Refrigerator Screw
11	WPL 876029
13	2200749 Whirlpool Refrigerator Nameplate
14	WP939101 Whirlpool Refrigerator Plate
15	Interior Door Panel (Refrigerator)
18	Trim, Door (Middle)
19	Freezer Door Panel (Includes Items 2 & 33) (Also order Item 11) (Stainless Steel)
21	Retainer, Gasket
22	Retainer, Gasket
23	Door Gasket, Magnetic (Black)
24	Interior Door Panel (Freezer)
26	W11745278 Whirlpool Bracket
27	SCREW
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2212651 Whirlpool Refrigerator Button Plug
33	Endcap, Handle (Freezer)
34	Retainer, Gasket
35	DOOR-COMP
37	WP2163629 Whirlpool Refrigerator Door Trim
