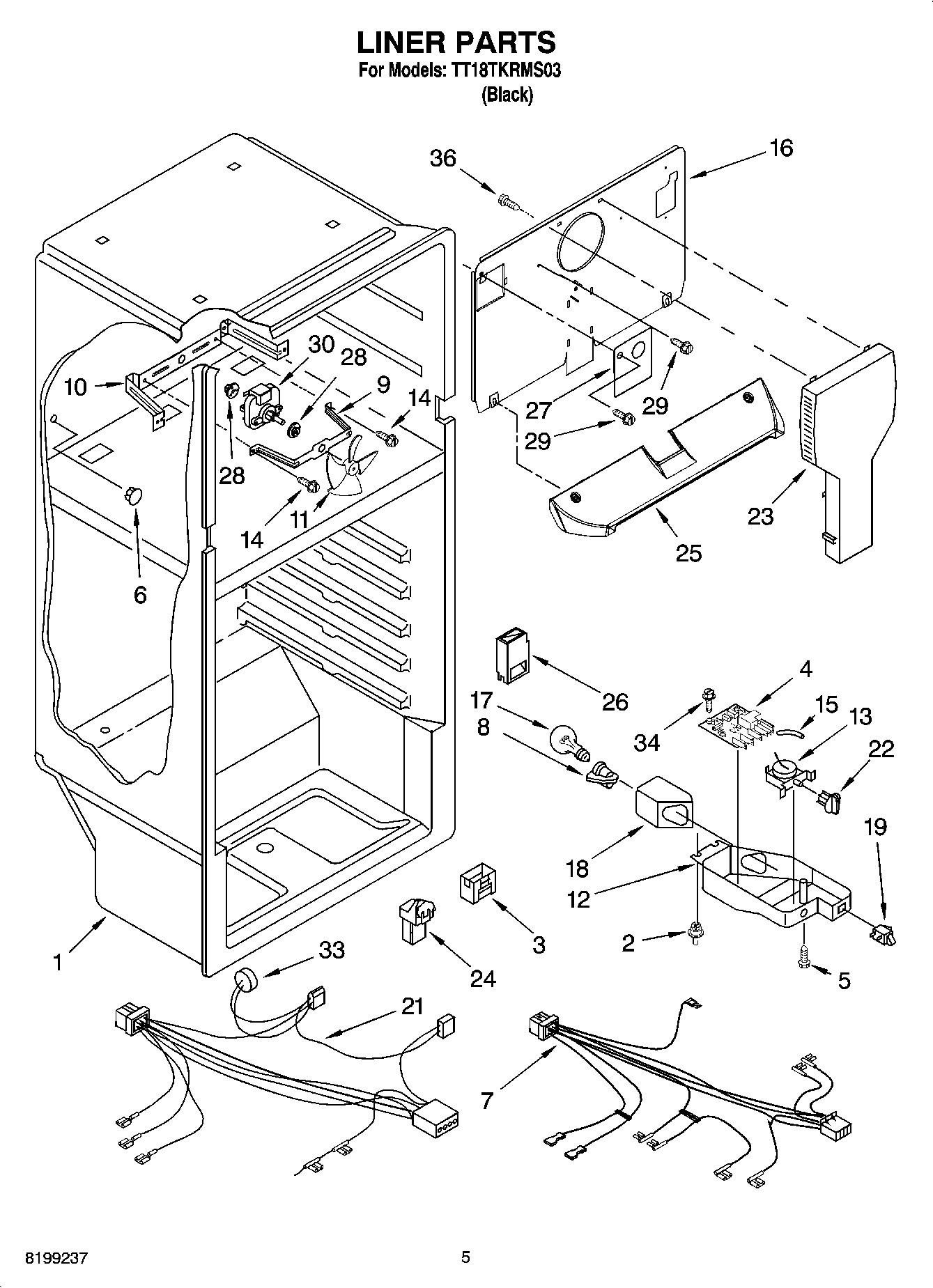

TT18TKRMS03 03 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Cover, Air Diffuser
4	4388931 Whirlpool Defrost Timer
5	WP489174 Whirlpool Refrigerator Screw
6	WP941839 Whirlpool Refrigerator Button Plug
7	2265930 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	WPW10180172 Whirlpool Refrigerator Bracket
10	Fan Mounting Bracket
11	WP2169142 Whirlpool Fan Blade
12	2215210 Whirlpool Refrigerator Control Box
13	WPW10511937 Whirlpool Thermostat Control
14	WP489399 Whirlpool Refrigerator Screw
15	WP2196003 Whirlpool Refrigerator Bar Riser
16	Cover-Evaporator
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	W11034434 Whirlpool Refrigerator Light Lens
19	W11384469 Whirlpool Door Switch
21	2319442 Whirlpool Refrigerator Wire Harness
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	9790408 Whirlpool Refrigerator Air Tower
24	Hood And Foil Assembly
25	Cover, Air Return
26	Air Diffuser
27	WP2217784 Whirlpool Refrigerator Cover
28	WP2264462 Whirlpool Refrigerator Grommet
29	WP489474 Whirlpool Refrigerator Screw
30	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
33	WP4387490 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
34	WP487353 Whirlpool Refrigerator Screw
36	WP489478 Whirlpool Refrigerator Screw
