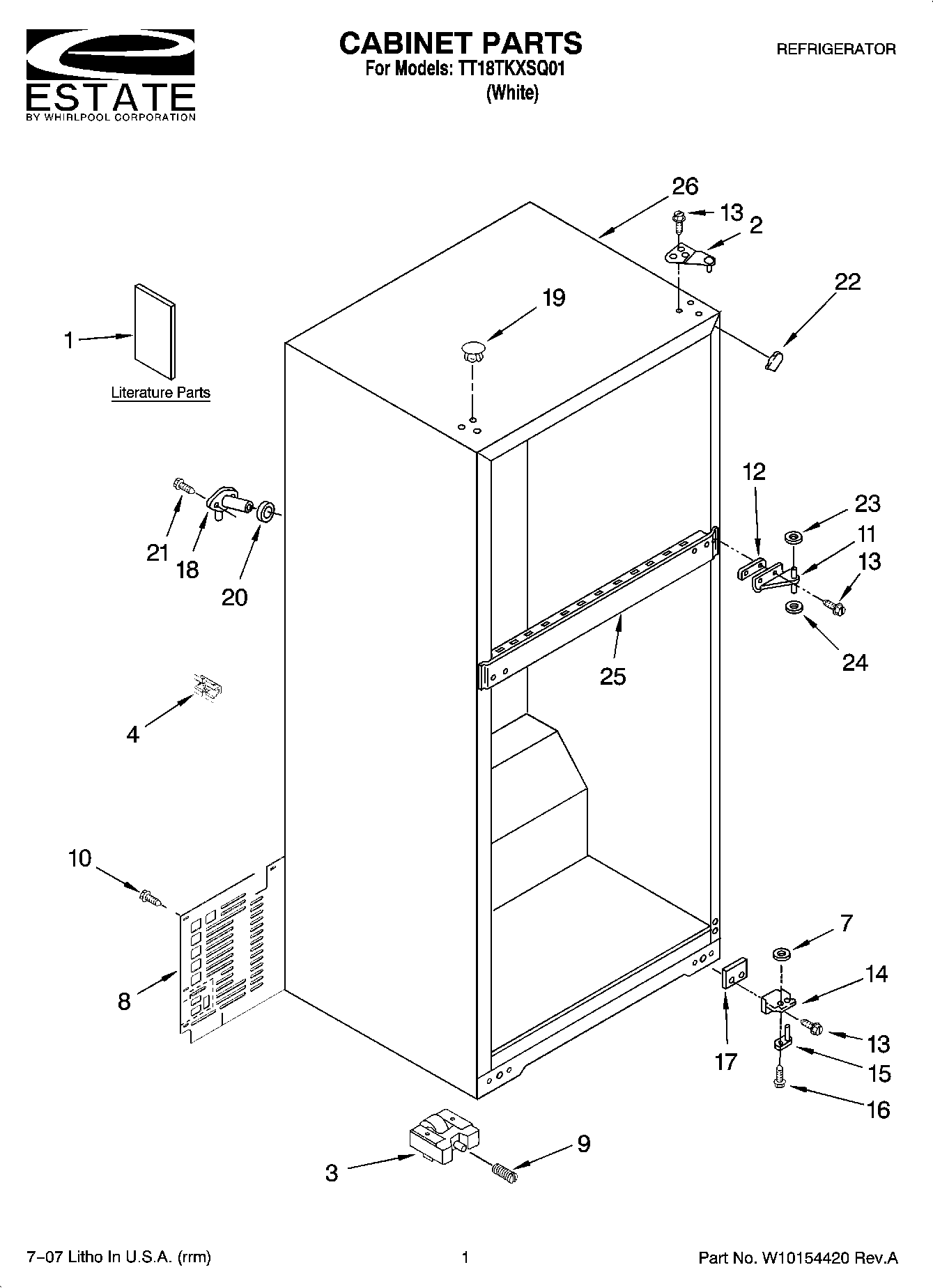

TT18TKXSQ01 01 – CABINET PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Service & Wiring Sheet
1	Energy Label
1	Use & Care Guide
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	2324094 Whirlpool Refrigerator Cabinet Roller
4	2266506 Whirlpool Refrigerator Spacer
7	WP488296 Whirlpool Washer Refrigerator
8	WP2264132 Whirlpool Refrigerator Unit Cover
9	2222100 Whirlpool Refrigerator Screw
10	WP489442 Whirlpool Refrigerator Screw
11	WP2166037 Whirlpool Refrigerator Door Hinge
12	2166043 Whirlpool Refrigerator Shim
13	WP489497 Whirlpool Screw
14	WP2325482 Whirlpool Bottom Hinge
15	Hinge-Pin Bott.
16	WP3428970 Whirlpool Refrigerator Screw
17	WP2201567 Whirlpool Hinge Shim
18	WP2196157 Whirlpool Fill Tube
19	WP2151652 Whirlpool Refrigerator Button Plug
20	WP1106508 Whirlpool Refrigerator Gasket
21	WP488729 Whirlpool Refrigerator Door Screw
22	W10859322 Whirlpool Refrigerator Filler
23	WP489467 Whirlpool Hinge Shim
24	WP487576 Whirlpool Washer
25	Rail, Center (Not Serviced)
26	Cabinet, (Not A Serviceable Part)
