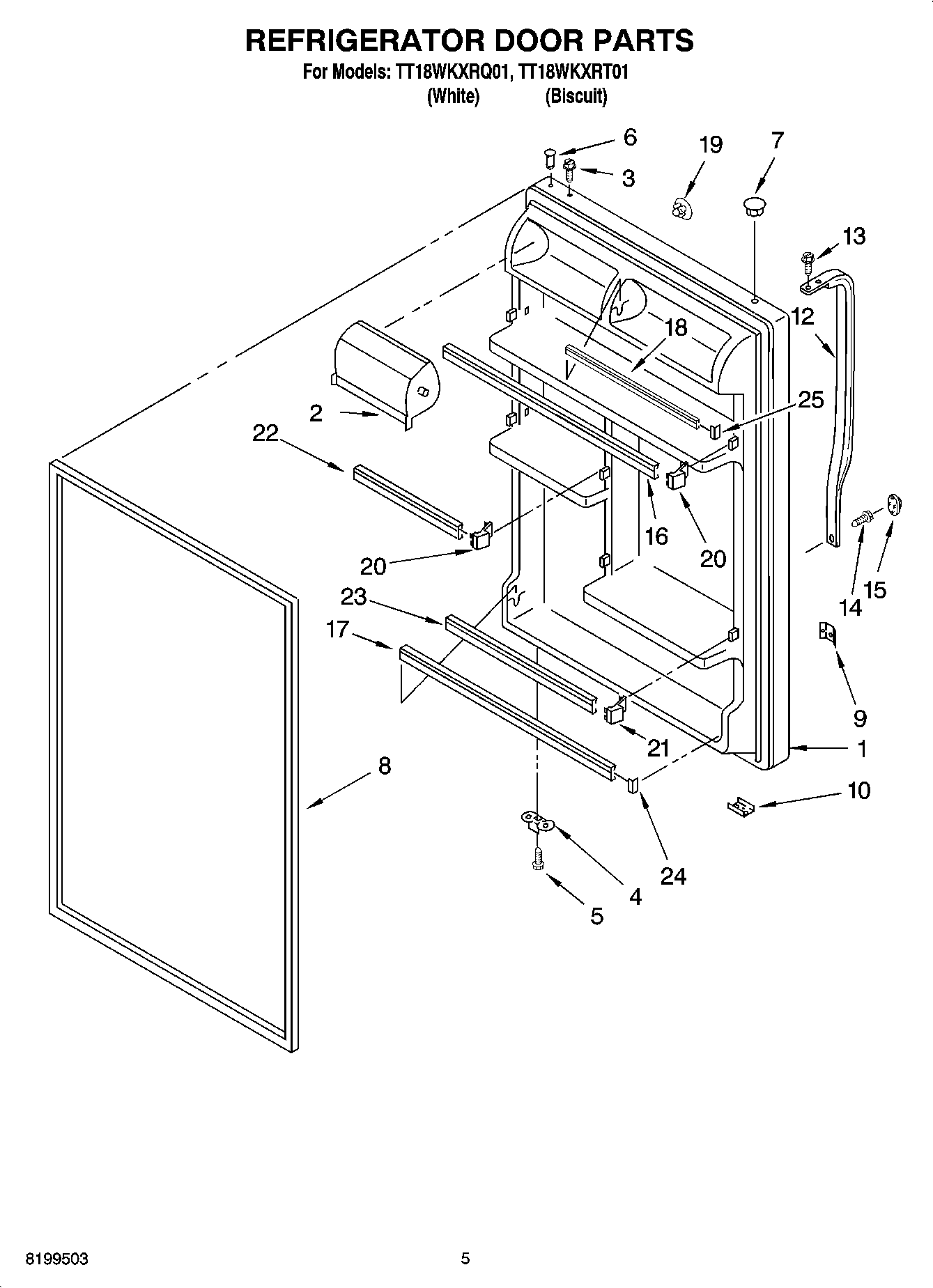

TT18WKXRQ01 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes No.9 & No.22) (Biscuit)
1	Refrigerator Door (Includes No.9 & No.22) (White)
2	Compartment Door
3	WP8281206 Whirlpool Refrigerator Screw
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	WP2212649 Whirlpool Refrigerator Button Plug
8	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
9	WP939101 Whirlpool Refrigerator Plate
10	W10833053 Whirlpool Refrigerator Plate
12	Handle Center (Biscuit)
12	WP2202807W Whirlpool Handle Door
13	WP489357 Whirlpool Recessed Screw
14	WP8281146 Whirlpool Screw
15	Cover, Screw (Biscuit)
15	WP2202819W Whirlpool Refrigerator Cover
16	Trim, Door Shelf
17	WPW10421484 Whirlpool Refrigerator Door Trim
18	TRIM-DOOR
19	WP2200936 Whirlpool Refrigerator Handle Plug
19	WP2189000 Whirlpool Refrigerator Handle Plug
20	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
21	WP2195915 Whirlpool Door Shelf Support
22	Trim, Door
23	WP2195943 Whirlpool Shelf Retainer Bar
24	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
25	ENDCAP-TRM
