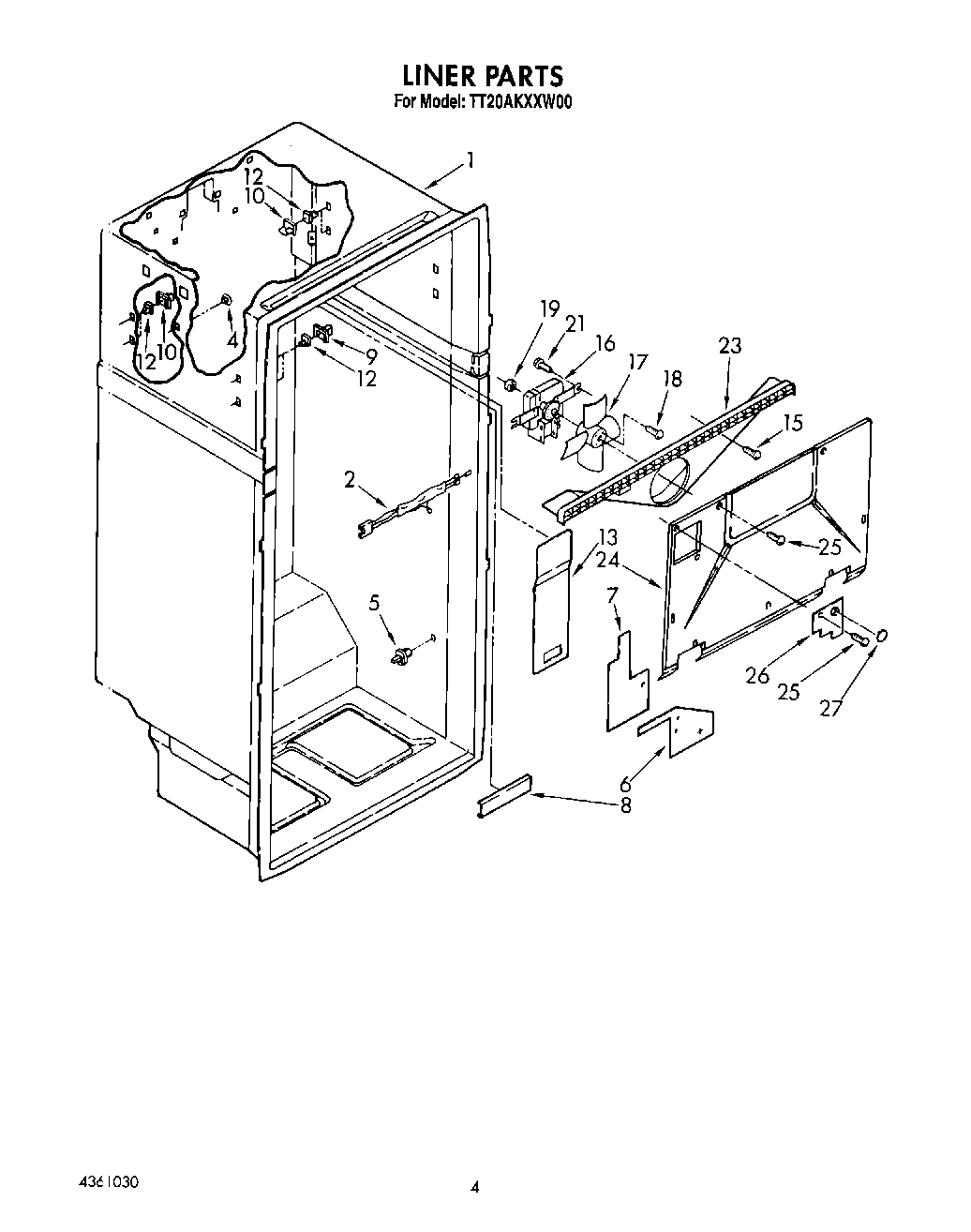

TT20AKXXW00 02 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Wiring, Fan Motor
4WP941839 Whirlpool Refrigerator Button Plug
5W10854959 Whirlpool Refrigerator Shelf Stud
6Electrical Shield
7Electrical Shield
8Electrical, Shield
9Stud, Front R.S.
10819091 Whirlpool Refrigerator Shelf Stud
12Stud, Support
13Cover, Air Duct
15WP489478 Whirlpool Refrigerator Screw
16482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17WP1100938 Whirlpool Refrigerator Fan Blade
18WP487887 Whirlpool Refrigerator Screw
19Grommet
21Screw (2)
23Scroll, Fan
24Evaporator Cover
25WP488729 Whirlpool Refrigerator Door Screw
26WP2217784 Whirlpool Refrigerator Cover
27Hole Plug
