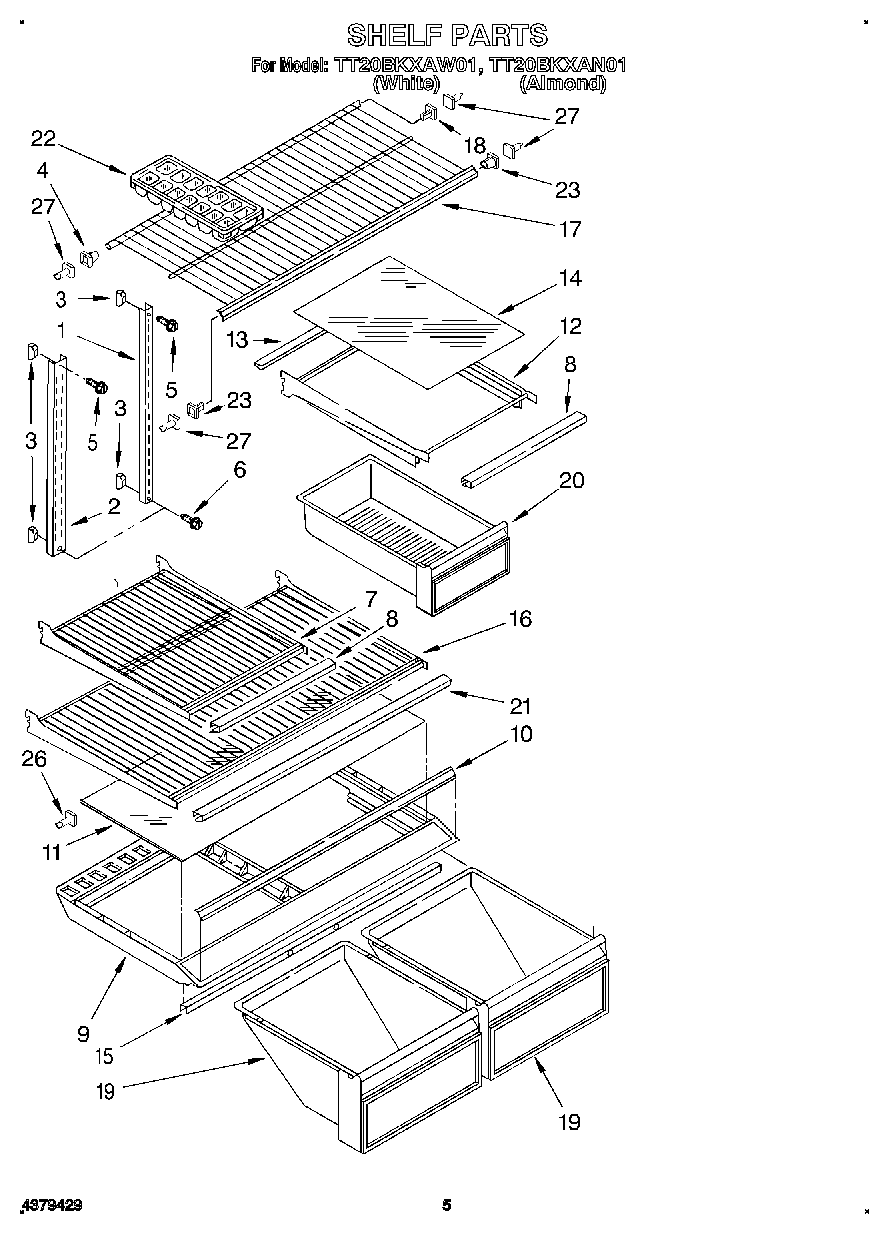

TT20BKXAN01 04 – SHELF

TT20BKXAN01 04 – SHELF

Written by

in

TT20BKXAN01 04 – SHELF

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
5Screw (3)
6WP488163 Whirlpool Refrigerator Screw
7Shelf, Cantilever
8Trim, Shelf
9WP2151749 Whirlpool Refrigerator Cover
10Trim, Crisper Cover
11Glass, Crisper Cover
12Pan Shelf, Cantilever
13Retainer, Glass
14Glass, Shelf
15WP2172748 Whirlpool Drawer Support
16Shelf, Full Cantilever
17Shelf, Freezer
18819091 Whirlpool Refrigerator Shelf Stud
19Pan, Crisper
20Pan, Meat
21Trim, Shelf
22WP841180A Whirlpool Microwave Glass Turntable Tray
23Stud, Front R.S.
26W10854959 Whirlpool Refrigerator Shelf Stud
27Stud, Support
