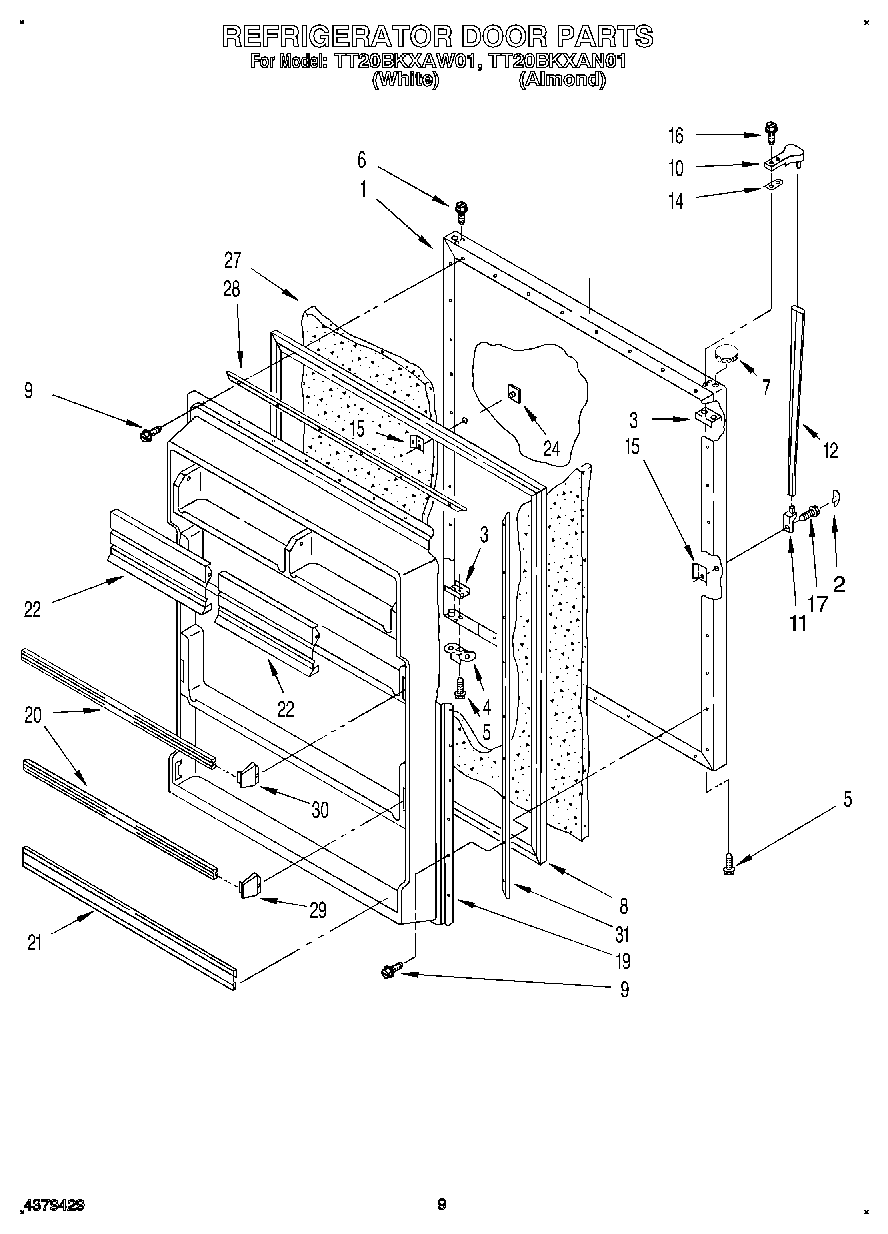

TT20BKXAW01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

TT20BKXAW01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

TT20BKXAW01 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2163262
	WPL LIT2154075
	WPL LIT2163507
	Torx Key
1	Panel, Refrigerator Door (Also Order Item 27) (White)
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
2	WP1101634 Whirlpool Refrigerator Cover
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	WP2191883 Whirlpool Refrigerator Handle Endcap
11	WP2183139 Whirlpool Refrigerator Handle End Cap
12	Handle, Center (Golden Harvest)
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
19	Interior Door Panel
20	Trim, Door (2)
21	Trim, Door
22	Compartment Door (R.S.)
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
28	Gasket Retainer, Top & Bottom
29	4318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
30	4386917 Whirlpool Endcap Kit
31	WPL 876029
31	212643 Whirlpool Refrigerator Permagum Sealer
31	Leveler (Thinner)
31	Gasket, Retainer
31	Almond (Uncut)
31	WP72107 Whirlpool Touchup
31	799344 Whirlpool Refrigerator Paint
31	72017 Whirlpool Appliance Touch-Up Paint White
31	350956 Whirlpool Spray Assembly
31	350930 Whirlpool White Spray Paint
31	350942 Whirlpool Spray Paint
31	511873 Whirlpool Refrigerator Paint
31	WPL 799833
31	285006 Whirlpool Spray
31	72032 Whirlpool Touch Up Paint Black
31	TAPE, VINYL (3/4 X 108“)
31	CEMENT, ALUMILASTIC (1 1/4 OZ.)
31	WP542638 Whirlpool Refrigerator Grease
31	WP505587 Whirlpool Refrigerator Sealer
31	WP503695 Whirlpool Refrigerator Sealer
31	876370 Whirlpool Refrigerator Insulation
31	833938 Whirlpool Refrigerator Terminal
31	606755 Whirlpool Refrigerator Bag
31	Door Reversal Instructions
