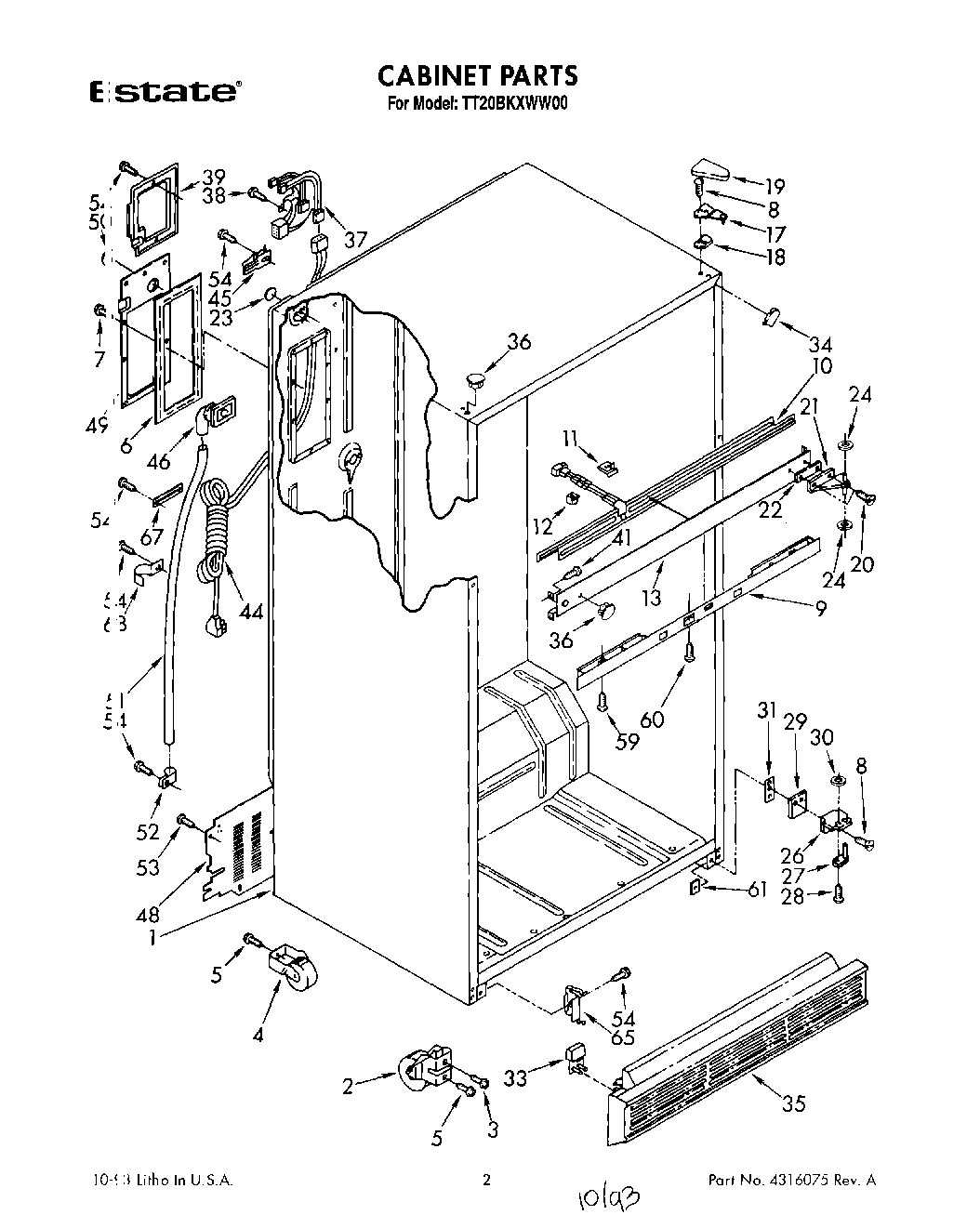

TT20BKXWW00 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Roller, Front
3Screw, 5/16-24 x 1
4Roller, Rear (2)
5WP489427 Whirlpool Refrigerator Screw
6WPL 1114548
7WP489464 Whirlpool Refrigerator Screw
8Screw
9Control, Front Cover
10Heater, Mullion
11Clip, Center Rail (4)
12Spacer (3)
13Center Rail (Almond)
13Center Rail (Golden Harvest)
13Center Rail (White)
17Hinge, Top
18Shim, Hinge Top
19Hinge Cover (Golden Harvest)
191119787 Whirlpool Refrigerator Hinge Cover
20Screw (Repair)
20Screw
21Hinge, Center
22Shim, Hinge Center
22Shim, Hinge Center
23Hole Seal
24WP488296 Whirlpool Washer Refrigerator
26Hinge Butt, Bottom
27Hinge Pin, Bottom
28Screw 10-32 x 5/16
29Shim, Bottom Hinge
30WP489200 Whirlpool Refrigerator Washer
31Spacer, Hinge
33Corner Filler, Grille
34Filler, Wrapper (Golden Harvest)
34Filler, Wrapper (Almond)
34Filler, Wrapper (White)
35Grille (Black)
36Hole Plug (4) (Almond)
36Hole Plug (4) (White)
36Hole Plug (4) (Golden Harvest)
37Cabinet, Wiring Assembly
38WP250830 Whirlpool Refrigerator Screw
39Cover, Wiring
41W11624204 Whirlpool Screw
44Cord, Service
45Clamp
46Fitting, Drain
48Cover, Unit
49Cover, Plug
50WPL 1120224
518316810 Whirlpool Refrigerator Drain Tube
52WPL 836077
54SCREW
54WP489478 Whirlpool Refrigerator Screw
59WP488163 Whirlpool Refrigerator Screw
60WP489174 Whirlpool Refrigerator Screw
61Tap Plate (2)
65WP2155013 Whirlpool Refrigerator Clip
67Tube Clamp (2)
68WPL 1110564
