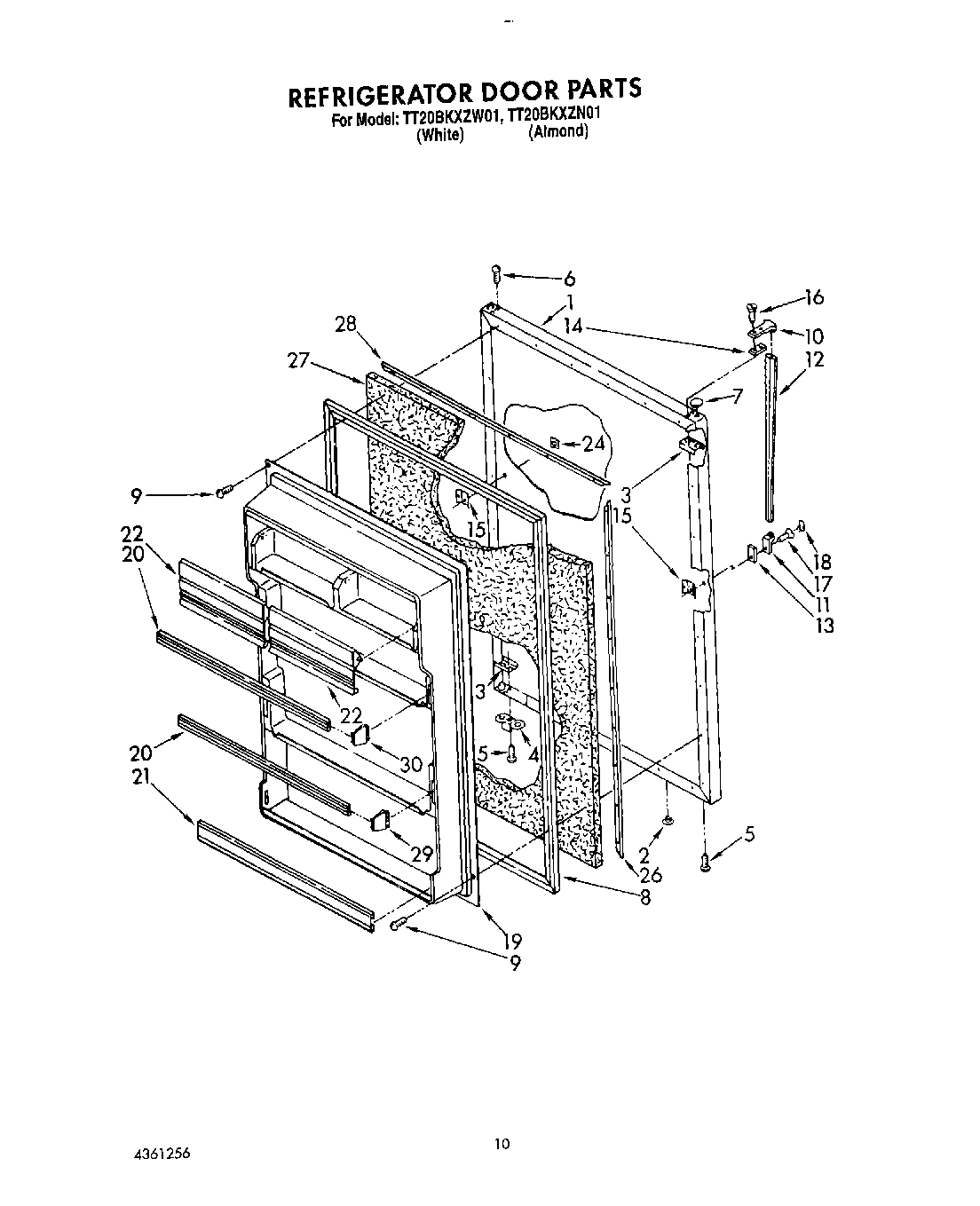

TT20BKXZW01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

TT20BKXZW01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

TT20BKXZW01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT4361256
	WPL LIT2154075
	WPL LIT2152544
	WPL LIT2151712
	Torx Key
1	Panel, Refrigerator Door (Also Order Item 27) (White)
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	819342 Whirlpool Refrigerator Endcap Kit
12	Handle, Center (Golden Harvest)
13	Shim, Handle End
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP1101634 Whirlpool Refrigerator Cover
19	Interior Door Panel
20	Trim, Door (2)
21	Trim, Door
22	Compartment Door
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
26	Gasket, Retainer
28	Gasket Retainer, Top & Bottom
29	4318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
30	212643 Whirlpool Refrigerator Permagum Sealer
30	Golden Harvest (Uncut)
30	350930 Whirlpool White Spray Paint
30	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
30	Almond (Uncut)
30	Leveler (Thinner)
30	WP72107 Whirlpool Touchup
30	799344 Whirlpool Refrigerator Paint
30	72017 Whirlpool Appliance Touch-Up Paint White
30	350942 Whirlpool Spray Paint
30	511873 Whirlpool Refrigerator Paint
30	606755 Whirlpool Refrigerator Bag
30	WPL 876029
30	285006 Whirlpool Spray
30	72032 Whirlpool Touch Up Paint Black
30	WPL 799833
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	TAPE, VINYL (3/4 X 108“)
30	WP542638 Whirlpool Refrigerator Grease
30	WP505587 Whirlpool Refrigerator Sealer
30	WP503695 Whirlpool Refrigerator Sealer
30	4386917 Whirlpool Endcap Kit
30	876370 Whirlpool Refrigerator Insulation
30	833938 Whirlpool Refrigerator Terminal
30	350956 Whirlpool Spray Assembly
