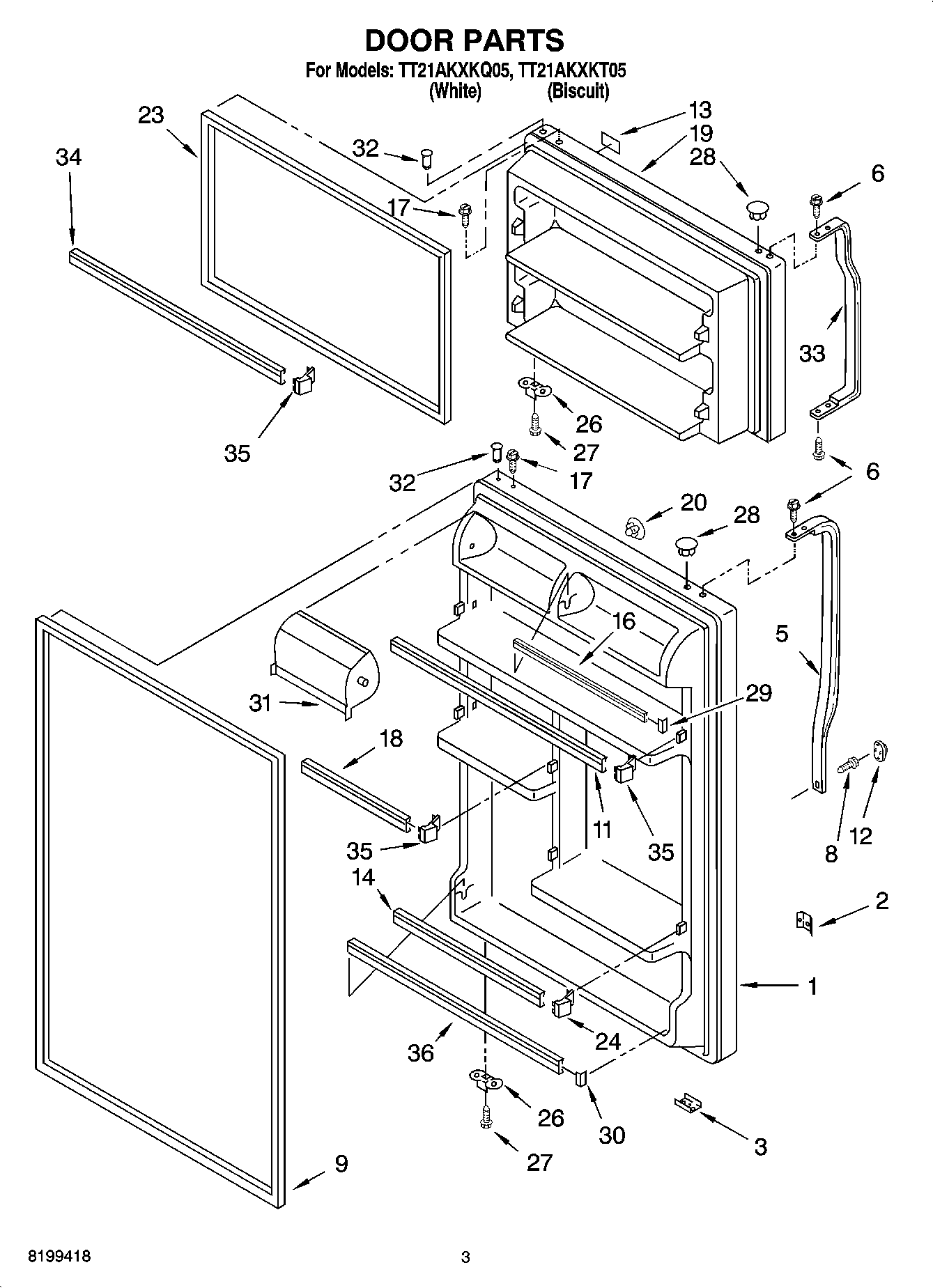

TT21AKXKQ05 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes No.8 & No.9) (Biscuit)
1Refrigerator Door (Includes 8 & 9) (White)
2WP939101 Whirlpool Refrigerator Plate
3W10833053 Whirlpool Refrigerator Plate
5Handle Center (Biscuit)
5WP2202807W Whirlpool Handle Door
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
92159061 Whirlpool Refrigerator Door Gasket
12Cover, Screw (Biscuit)
12WP2202819W Whirlpool Refrigerator Cover
132200749 Whirlpool Refrigerator Nameplate
13Nameplate (Biscuit)
14WP2195943 Whirlpool Shelf Retainer Bar
16TRIM-DOOR
17WP8281206 Whirlpool Refrigerator Screw
18WP2201062 Whirlpool Refrigerator Door Trim
19W11023679 Whirlpool Refrigerator Door Assembly
19W11023688 Whirlpool Refrigerator Door Assembly
20WP2200936 Whirlpool Refrigerator Handle Plug
20WP2189000 Whirlpool Refrigerator Handle Plug
23WHITE DOOR GASKET-FIP
24WP2195915 Whirlpool Door Shelf Support
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28WP2212649 Whirlpool Refrigerator Button Plug
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31WP2218118 Whirlpool Refrigerator Door Compressor
32WP2183003 Whirlpool Thimble
33WP2202806W Whirlpool Refrigerator Handle
33Handle, F.C. (Biscuit)
34WP2201060 Whirlpool Refrigerator Door Trim
35WP2156003 Whirlpool Refrigerator Door Shelf End Cap
36WPW10421486 Whirlpool Refrigerator Door Trim
