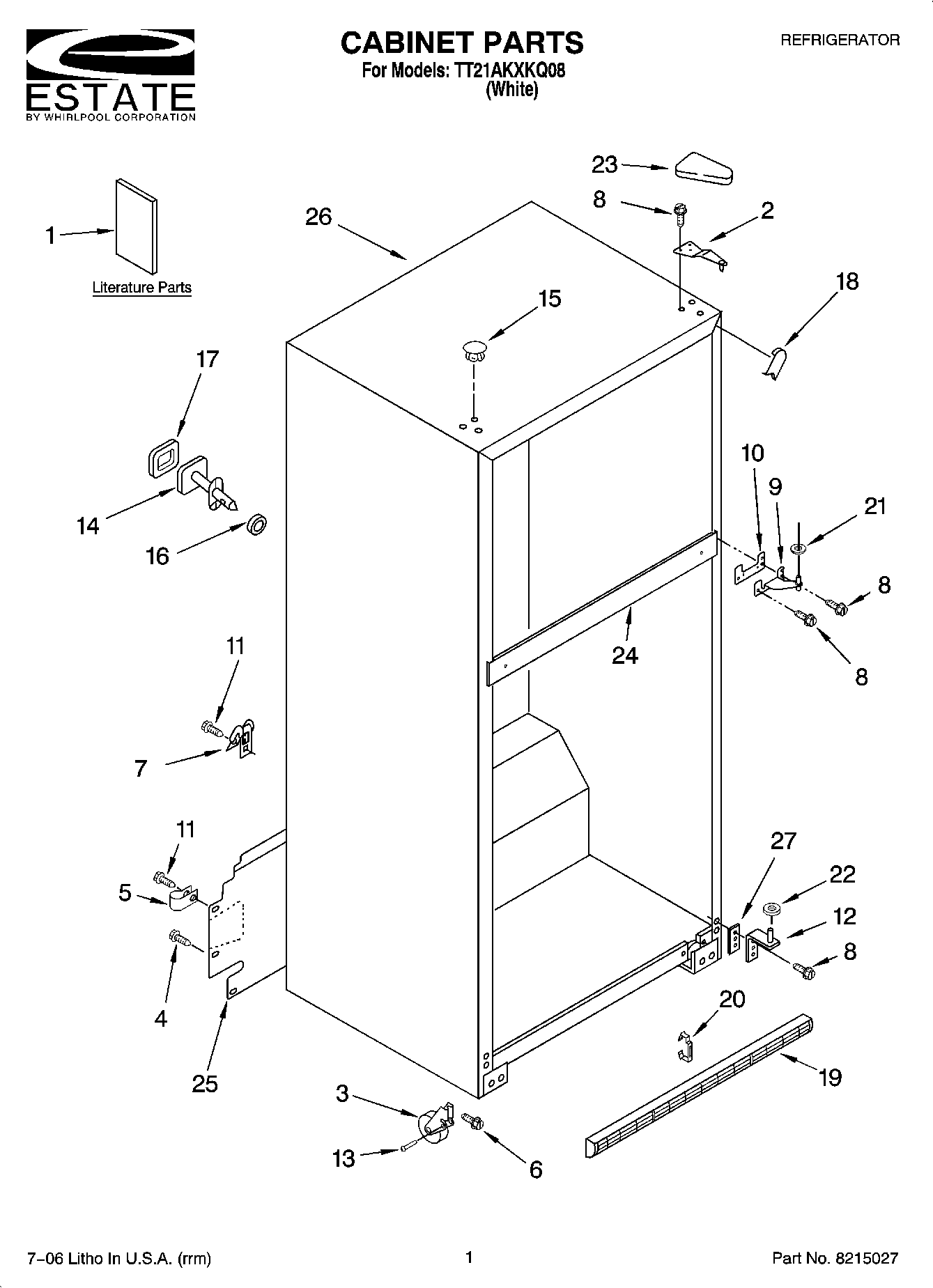

TT21AKXKQ08 01 – CABINET PARTS

TT21AKXKQ08 01 – CABINET PARTS

Written by

in

TT21AKXKQ08 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1Energy Label
1Use & Care Guide
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489427 Whirlpool Refrigerator Screw
5WP488366 Whirlpool Refrigerator Clamp
6WP3400504 Whirlpool Refrigerator Screw
7549193 Whirlpool Refrigerator Power Clamp
8WP489497 Whirlpool Screw
9WP2254618 Whirlpool Center Door Hinge
10WP2183854 Whirlpool Refrigerator Shim
11WP489464 Whirlpool Refrigerator Screw
12WP2254473 Whirlpool Refrigerator Door Hinge
13W11594405 Whirlpool Axle
14Fitting, Water Tube (Not Serviced)
15WP2151652 Whirlpool Refrigerator Button Plug
16Seal, Front (Not Serviced)
17Seal, Rear (Not Serviced)
18WPW10283959 Whirlpool Refrigerator Filler
19Grille (White)
20CLIP, GRILLE
21WP489467 Whirlpool Hinge Shim
22WP487576 Whirlpool Washer
23WP2213360 Whirlpool Refrigerator Cover
24Rail, Center (Not Serviced)
25Cover, Unit
26Cabinet, (Not A Serviceable Part)
27Shim, Bottom Hinge
