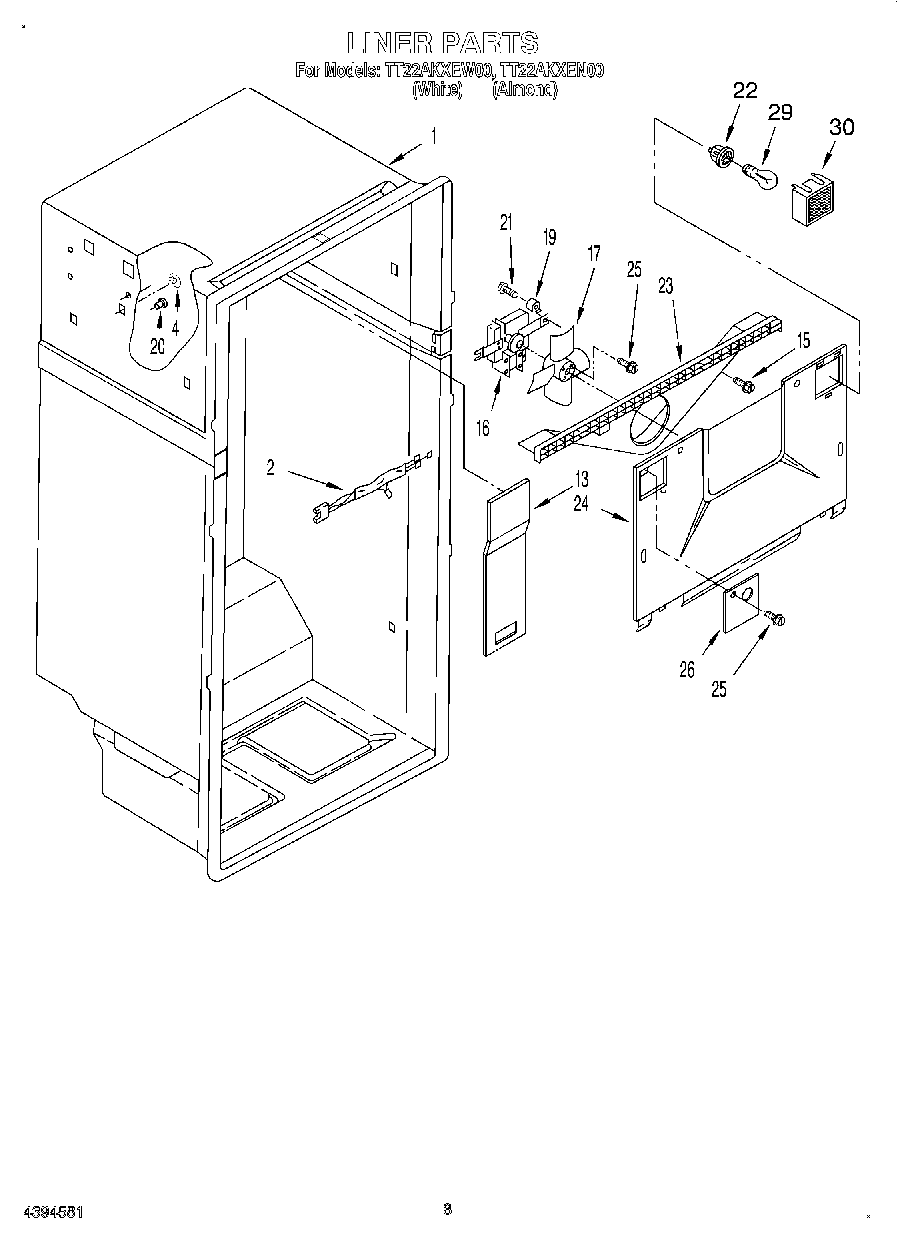

TT22AKXEN00 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Wiring, Fan Motor
4	WP941839 Whirlpool Refrigerator Button Plug
13	Cover, Air Duct
16	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17	WP1100938 Whirlpool Refrigerator Fan Blade
19	Grommet
20	Grommet (8)
21	Screw (2)
22	SOCKET
23	Scroll, Fan
24	Evaporator Cover
25	WP489478 Whirlpool Refrigerator Screw
26	WP2217784 Whirlpool Refrigerator Cover
29	4396822 Whirlpool Refrigerator Light Bulb
30	Light Lens
