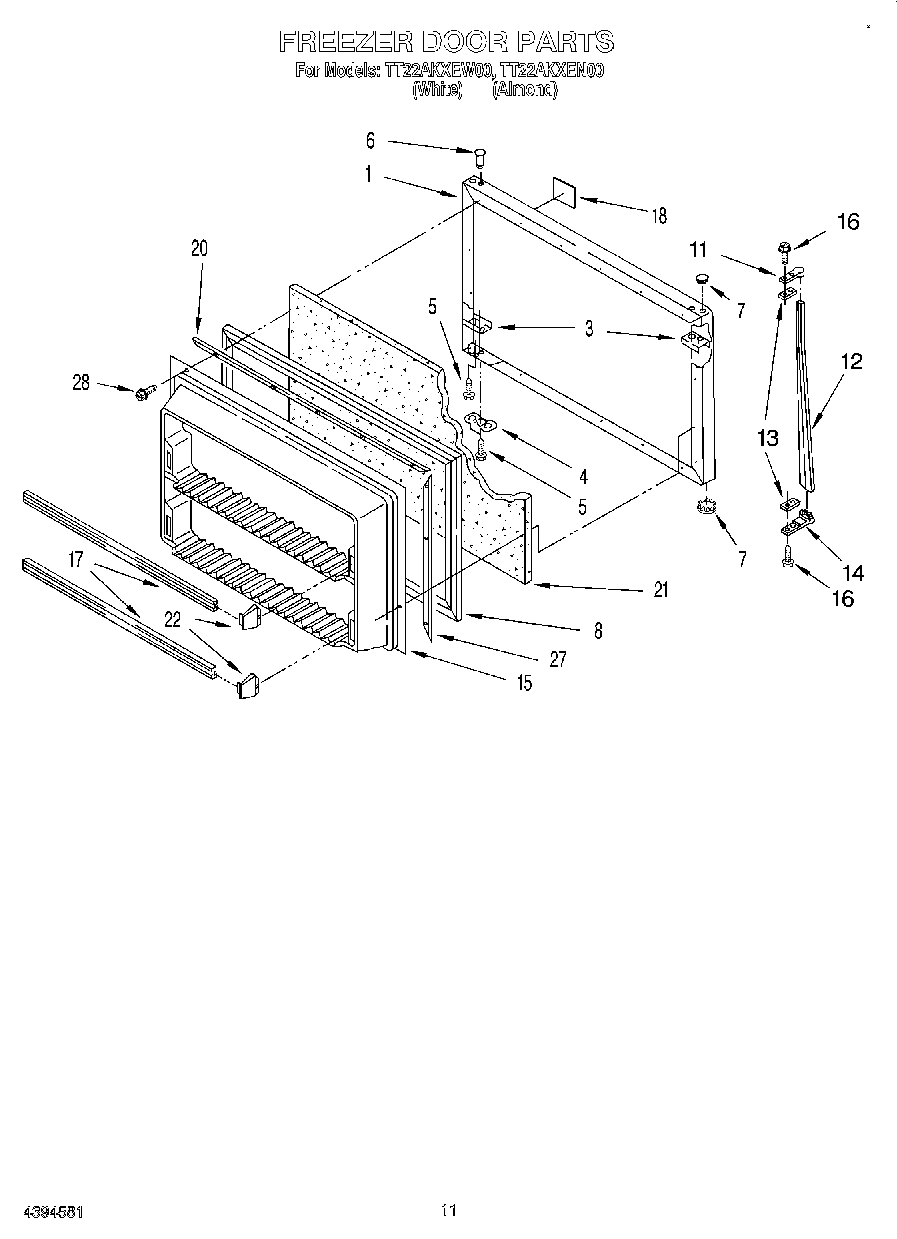

TT22AKXEN00 07 – FREEZER DOOR, LIT/OPTIONAL

TT22AKXEN00 07 – FREEZER DOOR, LIT/OPTIONAL

Written by

in

TT22AKXEN00 07 – FREEZER DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2182590
WPL LIT2177039
WPL LIT2175316
Literature Parts (Do-It-Yourself Manual Ref./Frz.)
WPL LIT677971
Torx Key
1Panel, Freezer Door (Also Order Item 21) (White)
1Panel, Freezer Door (Also Order Item 21) (Almond)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82188460A Whirlpool Refrigerator Door Gasket
11819342 Whirlpool Refrigerator Endcap Kit
12WP2162555 Whirlpool Refrigerator White Door Handle
12Handle, Center (Almond)
13Shim, Handle
15Interior Door Panel
16WP488920 Whirlpool Refrigerator Screw
17Trim, Door Shelf (2)
182200749 Whirlpool Refrigerator Nameplate
18Nameplate (Almond Model)
20Gasket Retainer, Top & Bottom
224386917 Whirlpool Endcap Kit
23Spa
27Retainer, Gasket
28511873 Whirlpool Refrigerator Paint
28350942 Whirlpool Spray Paint
28212643 Whirlpool Refrigerator Permagum Sealer
28350930 Whirlpool White Spray Paint
28Almond (Uncut)
28WP72107 Whirlpool Touchup
28799344 Whirlpool Refrigerator Paint
2872017 Whirlpool Appliance Touch-Up Paint White
28350956 Whirlpool Spray Assembly
28Door Reversal Instructions
28606755 Whirlpool Refrigerator Bag
28833938 Whirlpool Refrigerator Terminal
28WPL 876029
28CEMENT, ALUMILASTIC (1 1/4 OZ.)
28285006 Whirlpool Spray
2872032 Whirlpool Touch Up Paint Black
28TAPE, VINYL (3/4 X 108“)
28WPL 799833
28WP542638 Whirlpool Refrigerator Grease
28WP505587 Whirlpool Refrigerator Sealer
28WP503695 Whirlpool Refrigerator Sealer
28876370 Whirlpool Refrigerator Insulation
28WP489442 Whirlpool Refrigerator Screw
