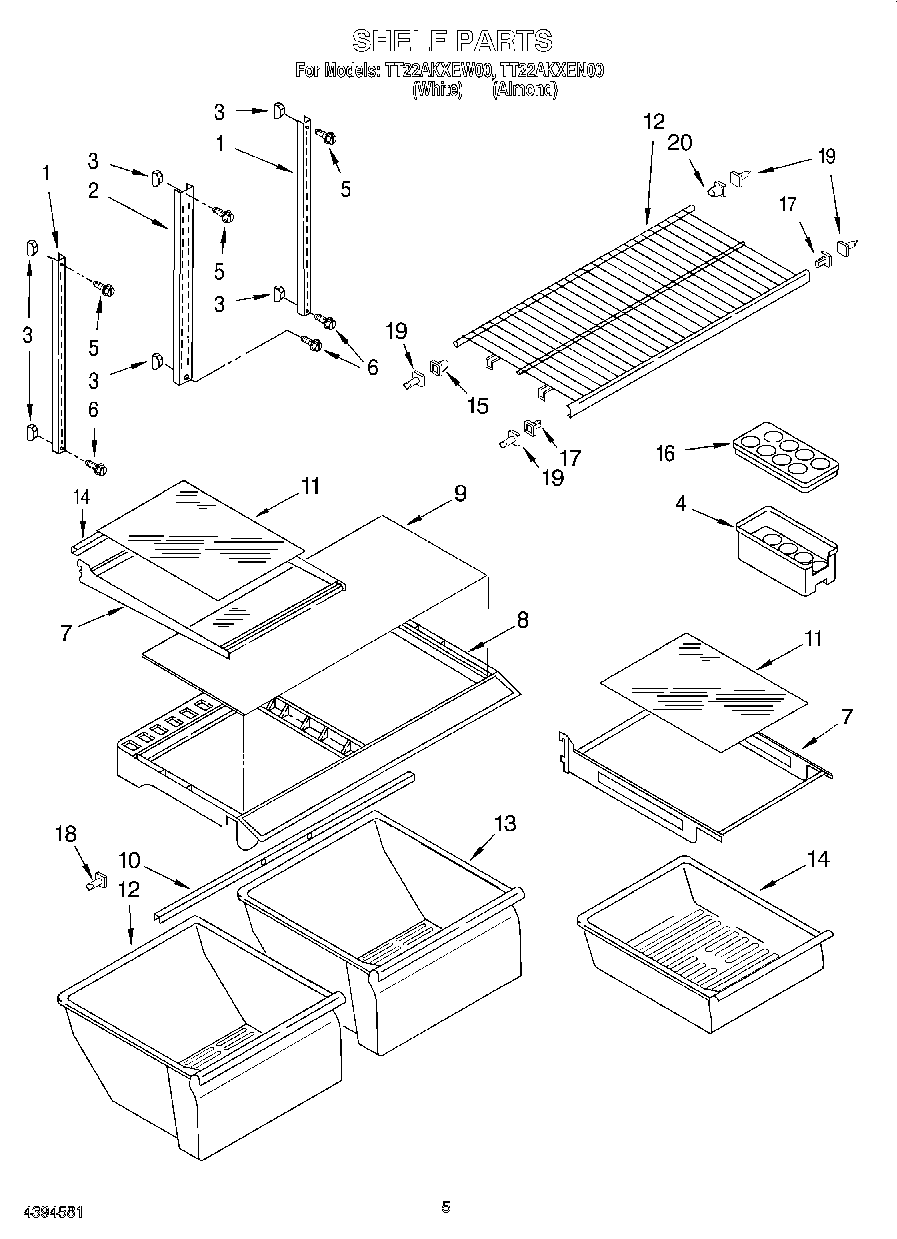

TT22AKXEW00 04 – SHELF

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
4Egg Container, Bottom
5Screw (3)
6WP489474 Whirlpool Refrigerator Screw
7Shelf, Cantilever (3)
8Crisper Cover
9Glass, Crisper Cover
10WP2172748 Whirlpool Drawer Support
11Shelf, Glass
12Shelf, Freezer
13Pan, Crisper
14Pan, Meat
16Egg Container, Top
17Stud, Front R.S.
18W10854959 Whirlpool Refrigerator Shelf Stud
19Stud, Support
20819091 Whirlpool Refrigerator Shelf Stud
