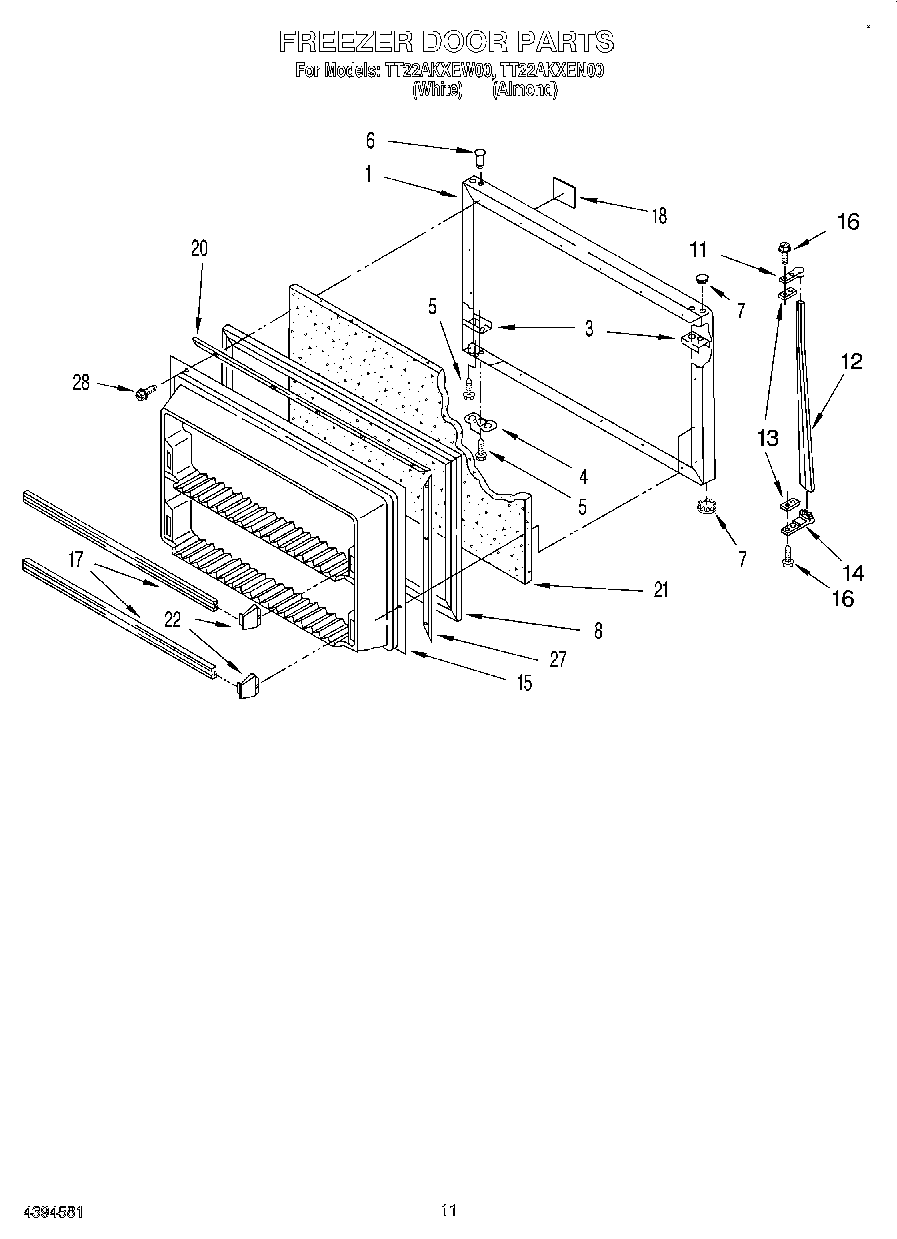

TT22AKXEW00 07 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2182590
	WPL LIT2177039
	WPL LIT2175316
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT677971
	Torx Key
1	Panel, Freezer Door (Also Order Item 21) (White)
1	Panel, Freezer Door (Also Order Item 21) (Almond)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188460A Whirlpool Refrigerator Door Gasket
11	819342 Whirlpool Refrigerator Endcap Kit
12	WP2162555 Whirlpool Refrigerator White Door Handle
12	Handle, Center (Almond)
13	Shim, Handle
15	Interior Door Panel
16	WP488920 Whirlpool Refrigerator Screw
17	Trim, Door Shelf (2)
18	2200749 Whirlpool Refrigerator Nameplate
18	Nameplate (Almond Model)
20	Gasket Retainer, Top & Bottom
22	4386917 Whirlpool Endcap Kit
23	Spa
27	Retainer, Gasket
28	511873 Whirlpool Refrigerator Paint
28	350942 Whirlpool Spray Paint
28	212643 Whirlpool Refrigerator Permagum Sealer
28	350930 Whirlpool White Spray Paint
28	Almond (Uncut)
28	WP72107 Whirlpool Touchup
28	799344 Whirlpool Refrigerator Paint
28	72017 Whirlpool Appliance Touch-Up Paint White
28	350956 Whirlpool Spray Assembly
28	Door Reversal Instructions
28	606755 Whirlpool Refrigerator Bag
28	833938 Whirlpool Refrigerator Terminal
28	WPL 876029
28	CEMENT, ALUMILASTIC (1 1/4 OZ.)
28	285006 Whirlpool Spray
28	72032 Whirlpool Touch Up Paint Black
28	TAPE, VINYL (3/4 X 108``)
28	WPL 799833
28	WP542638 Whirlpool Refrigerator Grease
28	WP505587 Whirlpool Refrigerator Sealer
28	WP503695 Whirlpool Refrigerator Sealer
28	876370 Whirlpool Refrigerator Insulation
28	WP489442 Whirlpool Refrigerator Screw
