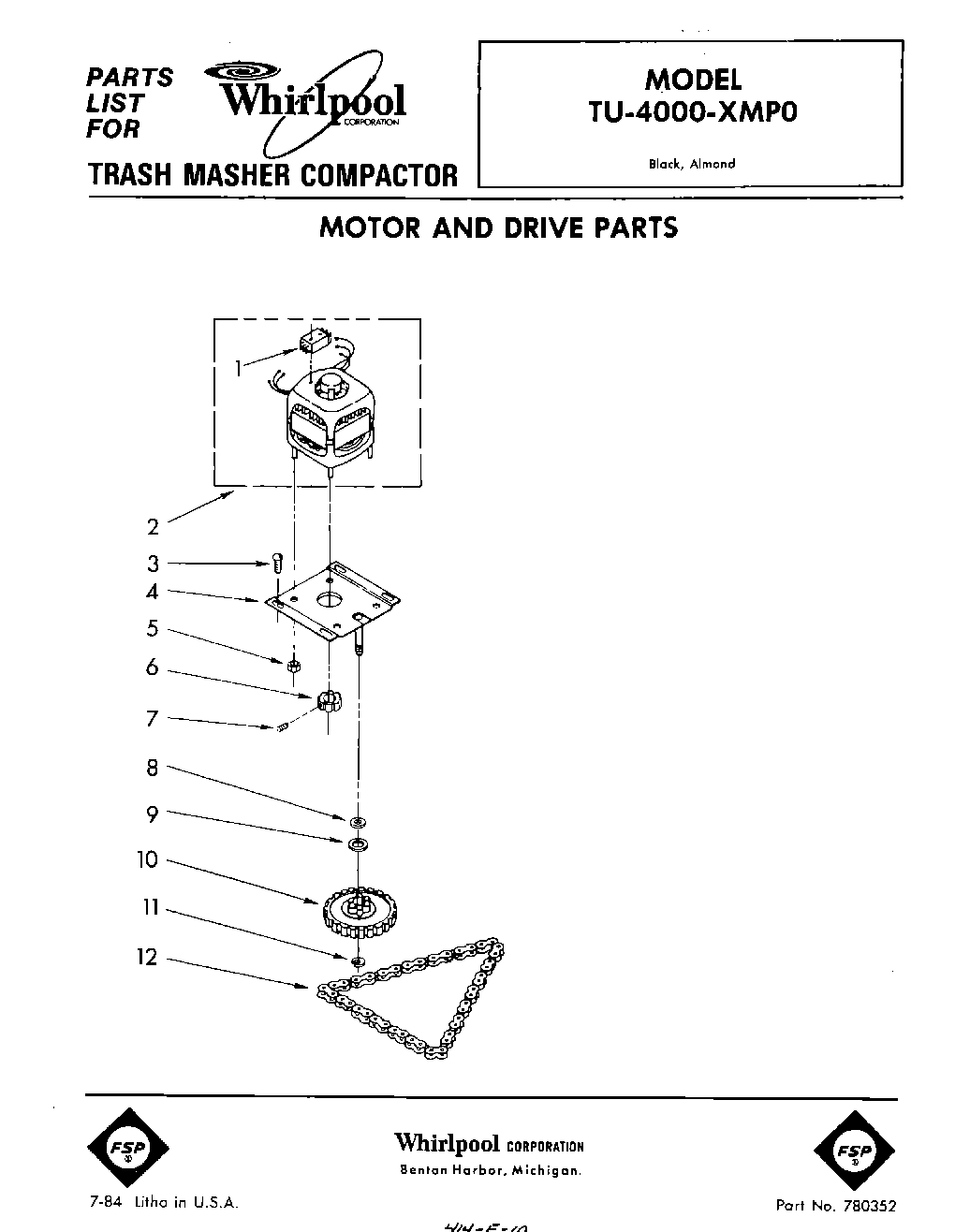

TU4000XMP0 01 – MOTOR AND DRIVE , LIT/OPTIONAL

Products

PositionProduct
1Switch Assembly (Use W/777709 Motor)
2W10439651 Whirlpool Air Conditioner Motor Drive
3Screw. 1/4-20 x 1/2 (4)
4776327 Whirlpool Compactor Motor Plate
5WP776338 Whirlpool Compactor Nut
6GEAR KIT COMPACTOR
7WP454512 Whirlpool Compactor Spring Pin
8776035 Whirlpool Compactor Washer
9W11214485 Whirlpool Compactor Washer
11WP776036 Whirlpool Compactor Clip
12Instructions, Installation
12Guide, Use & Care
12Guide, Consumer`s Buy
12Diagram, Wiring
12Sheet, Tech (Service Information)
12CHAIN-DRVE
12List, Repair Parts
