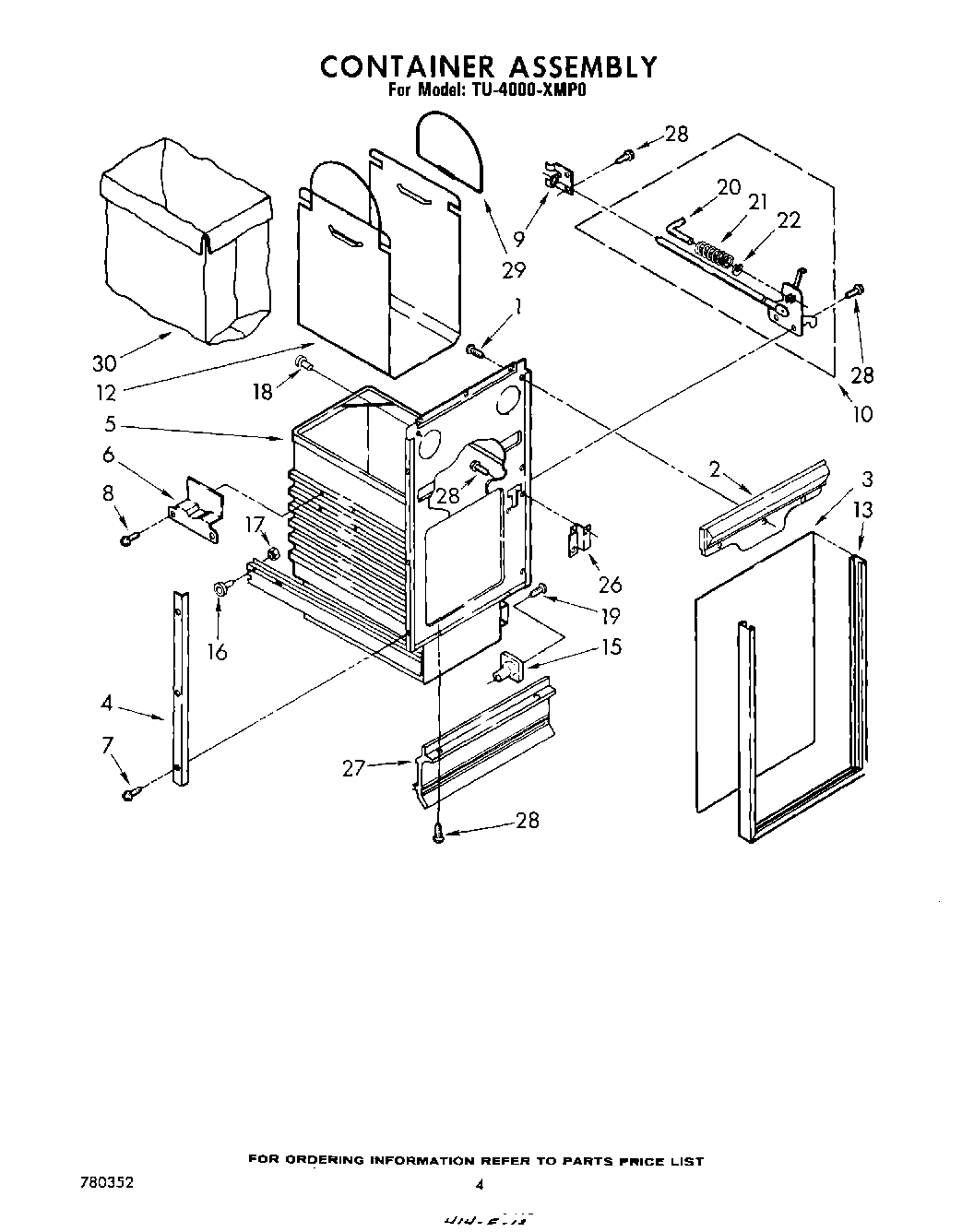

TU4000XMP0 04 – CONTAINER ASSEMBLYadmin2025-04-26T12:59:50+00:00TU4000XMP0 04 – CONTAINER ASSEMBLY
Products
| Position | Product |
|---|
| 2 | Handle, Container |
| 3 | Panel, Container Front (Almond & Black) |
| 4 | Plate, Trim (2) |
| 5 | Container Assembly |
| 6 | Cam, Spray Actuator (2) |
| 7 | Screw, 6-20 x 3/8 |
| 9 | WP776395 Whirlpool Compactor Guide |
| 10 | 675379 Whirlpool Compactor Drawer Latch |
| 12 | 13030RP Whirlpool Compactor Bag Caddy |
| 13 | Trim, Container (Front) |
| 15 | Plate, Nut Assembly |
| 16 | WP9871602 Whirlpool Compactor Bearing |
| 17 | WP776356 Whirlpool Compactor Nut |
| 18 | Bumper, Container (2) |
| 19 | Screw, Shoulder No.8-18 x 1/2 (2) |
| 20 | Pin |
| 21 | 775736 Whirlpool Compactor Spring |
| 22 | Ring, ``E`` |
| 26 | 775665 Whirlpool Compactor Plate Latch |
| 27 | Plate, Toe |
| 28 | WP489069 Whirlpool Compactor Screw |
| 29 | WP777108 Whirlpool Compactor Bag Handle |
| 30 | 15PK-15"COMP BGS W/ODOR |
