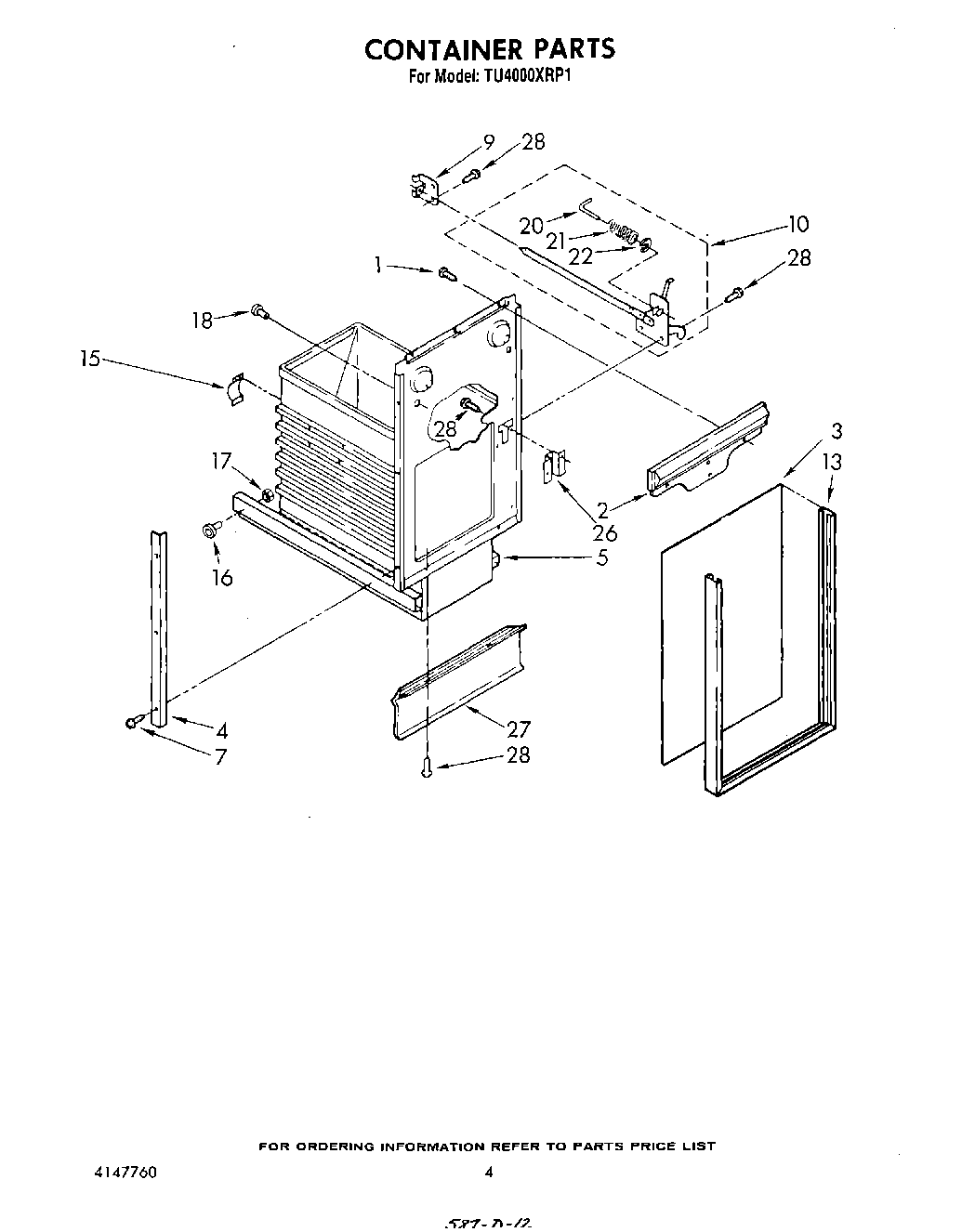

TU4000XRP1 04 – CONTAINER

Products

Position	Product
2	WP608732 Whirlpool Compactor Handle
3	Panel, Container Front (Almond & Black)
4	Plate, Trim (2)
5	Container Assembly
7	Screw, 6-20 x 3/8
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
13	Trim, Container (Front)
15	Spring, Safety Switch
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	Bumper, Container (2)
20	Pin
21	775736 Whirlpool Compactor Spring
22	Ring, “E“
26	775665 Whirlpool Compactor Plate Latch
27	Plate, Toe
28	WP489069 Whirlpool Compactor Screw
