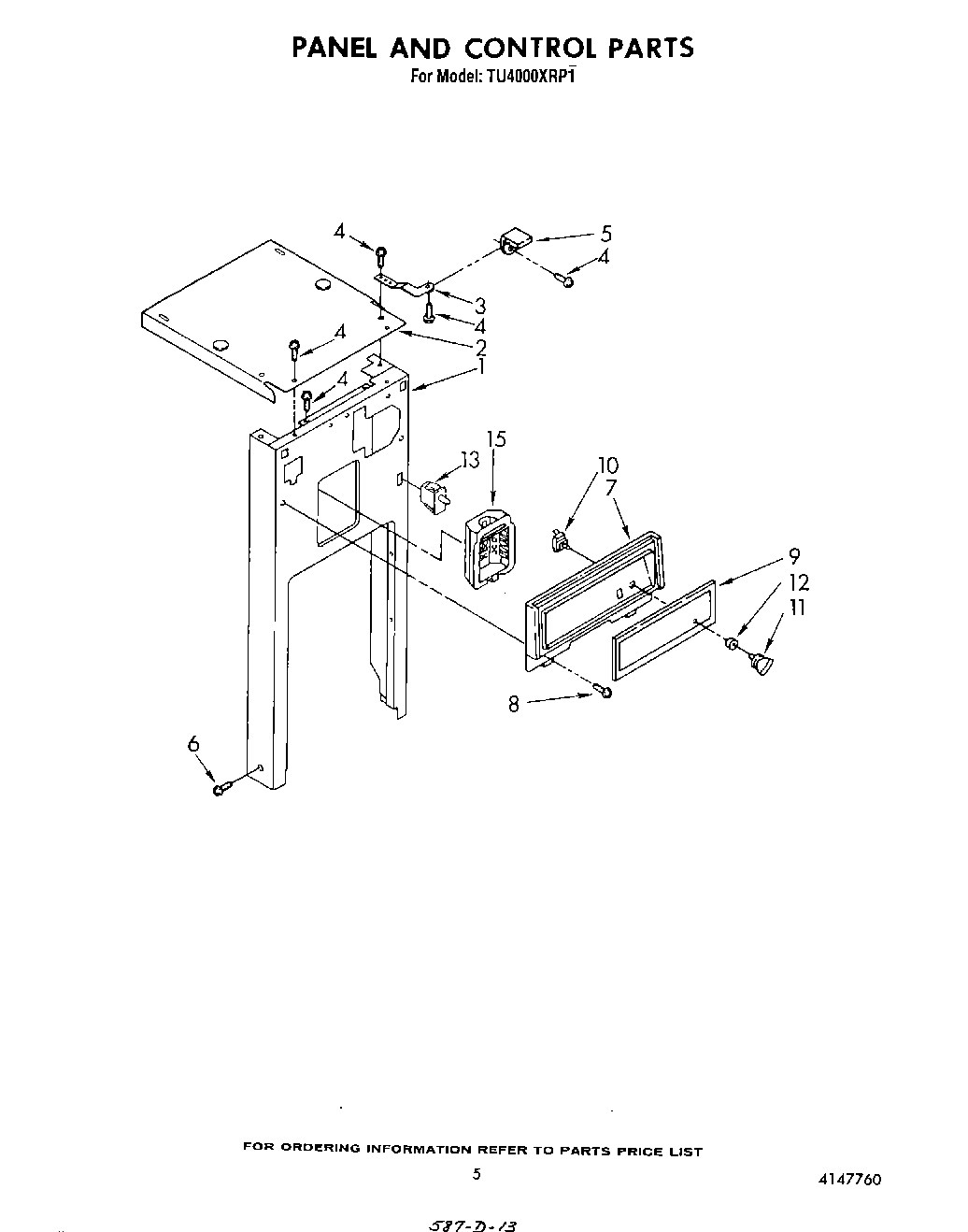

TU4000XRP1 05 – PANEL AND CONTROL

Products

PositionProduct
1Panel, Front Frame
2Cover, Top
3W11729437 Whirlpool Retaining Bracket
4WP302868 Whirlpool Screw
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489069 Whirlpool Compactor Screw
7Escutcheon, Control
8Screw, 6-20 x 3/8 (2)
9Insert, Escutcheon
10675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11Knob, Rotary Switch
12WP777383 Whirlpool Compactor Nut
13Switch, Drawer Tilt
15Holder, Deodorant Storage
15harness, wiring
