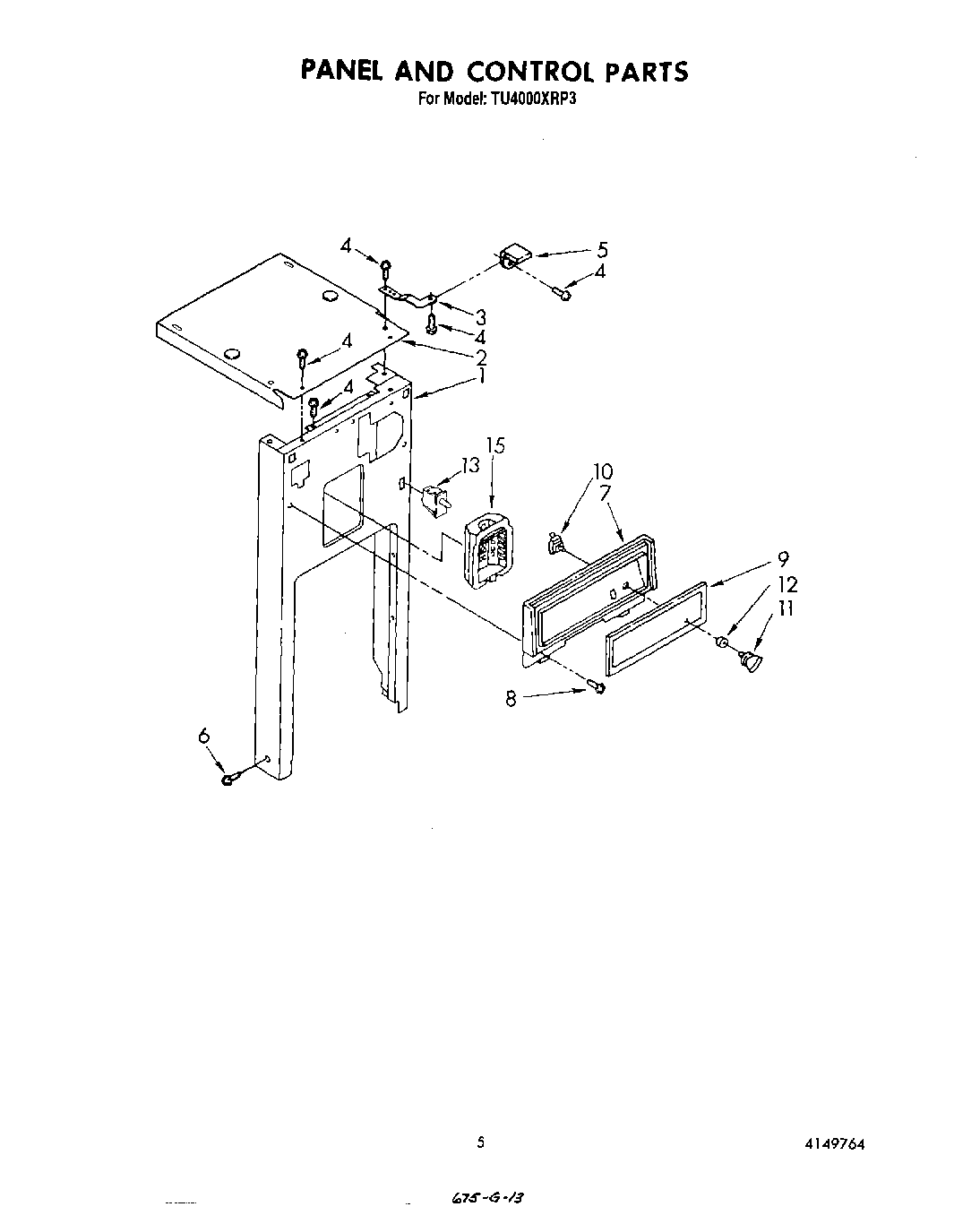

TU4000XRP3 05 – PANEL AND CONTROL

Products

Position	Product
1	Panel, Front Frame
2	Cover, Top
3	W11729437 Whirlpool Retaining Bracket
4	WP302868 Whirlpool Screw
5	WP780239 Whirlpool Compactor Bracket Retainer
6	WP489069 Whirlpool Compactor Screw
7	Escutcheon, Control
8	Screw, 6-20 x 3/8 (2)
9	Insert, Escutcheon
10	675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11	Knob, Rotary Switch
12	WP777383 Whirlpool Compactor Nut
13	Switch, Drawer Tilt
15	Holder, Deodorant Storage
15	Harness, Wiring
