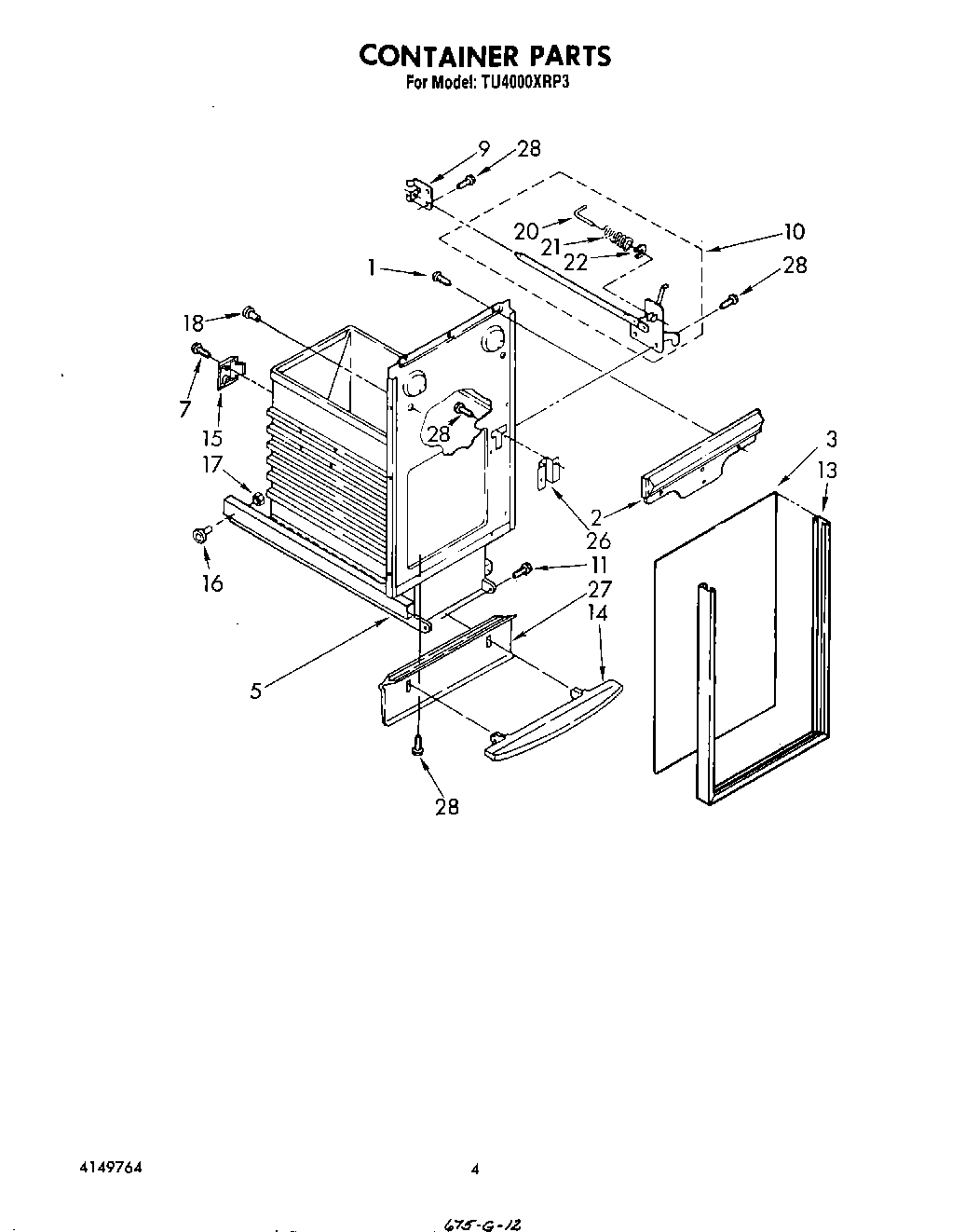

TU4000XRPE 04 – CONTAINER

Products

Position	Product
2	WP608732 Whirlpool Compactor Handle
3	Panel, Container Front (Almond & Black)
5	Container Assembly
7	Screw (2)
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
11	WP780263 Whirlpool Compactor Screw
13	Trim, Container (Front)
14	882657 Whirlpool Compactor Foot Pedal
15	9871125 Whirlpool Compactor Actuator
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	Bumper, Container (2)
20	Pin
21	775736 Whirlpool Compactor Spring
22	Ring, “E“
26	775665 Whirlpool Compactor Plate Latch
27	WP777328 Whirlpool Compactor Guard
28	WP489069 Whirlpool Compactor Screw
