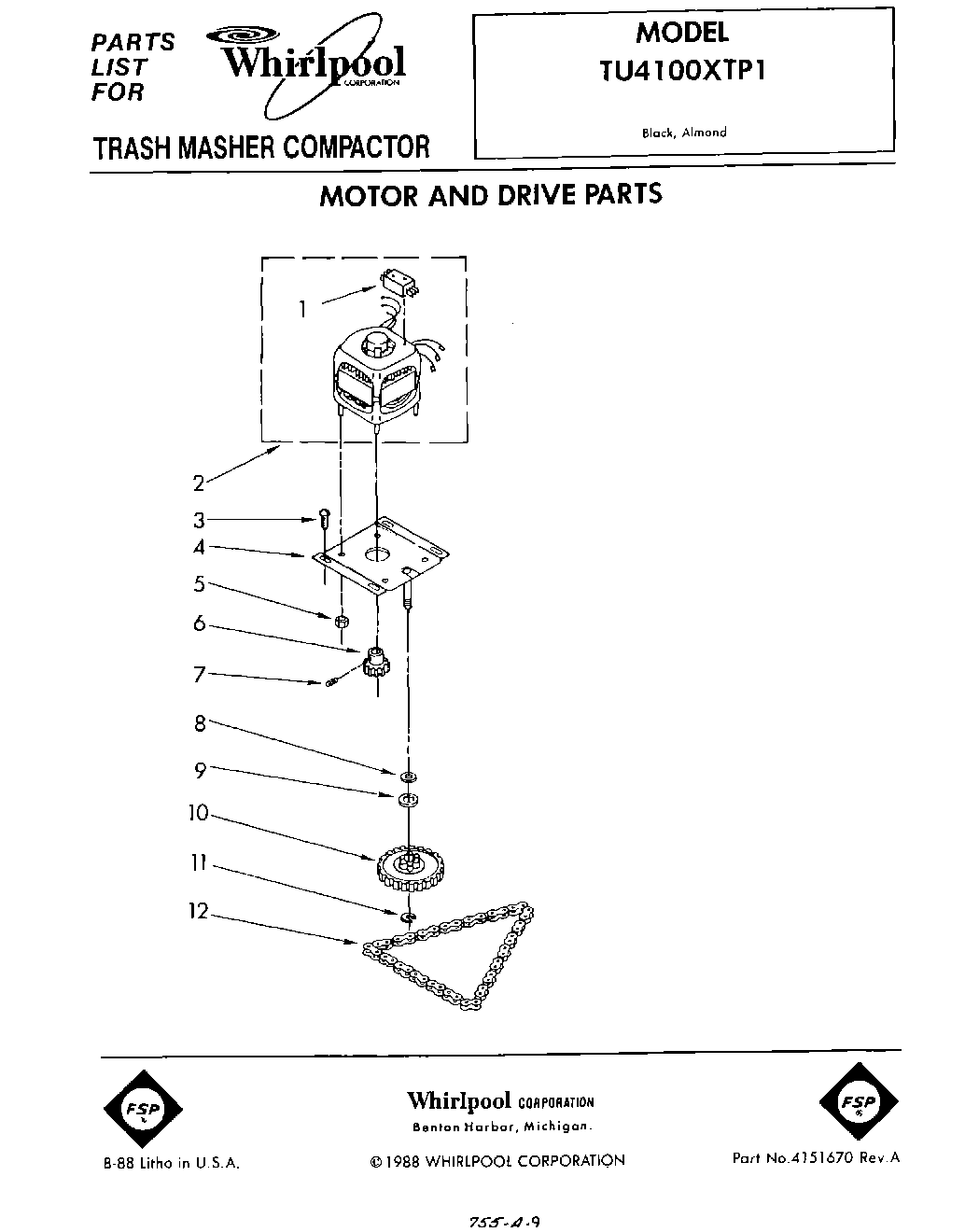

TU4100XTP1 01 – MOTOR AND DRIVE

TU4100XTP1 01 – MOTOR AND DRIVE

Written by

in

TU4100XTP1 01 – MOTOR AND DRIVE

Products

PositionProduct
List, Repair Parts
Instructions, Installation
Guide, Use and Care
ENGLISH (Sheet, Tech)
1W10439651 Whirlpool Air Conditioner Motor Drive
3Screw. 1/4-20 x 1/2 (4)
4776327 Whirlpool Compactor Motor Plate
5WP776338 Whirlpool Compactor Nut
6GEAR KIT COMPACTOR
7WP454512 Whirlpool Compactor Spring Pin
8776035 Whirlpool Compactor Washer
9W11214485 Whirlpool Compactor Washer
11WP776036 Whirlpool Compactor Clip
12Harness, Wiring
12CHAIN-DRVE
