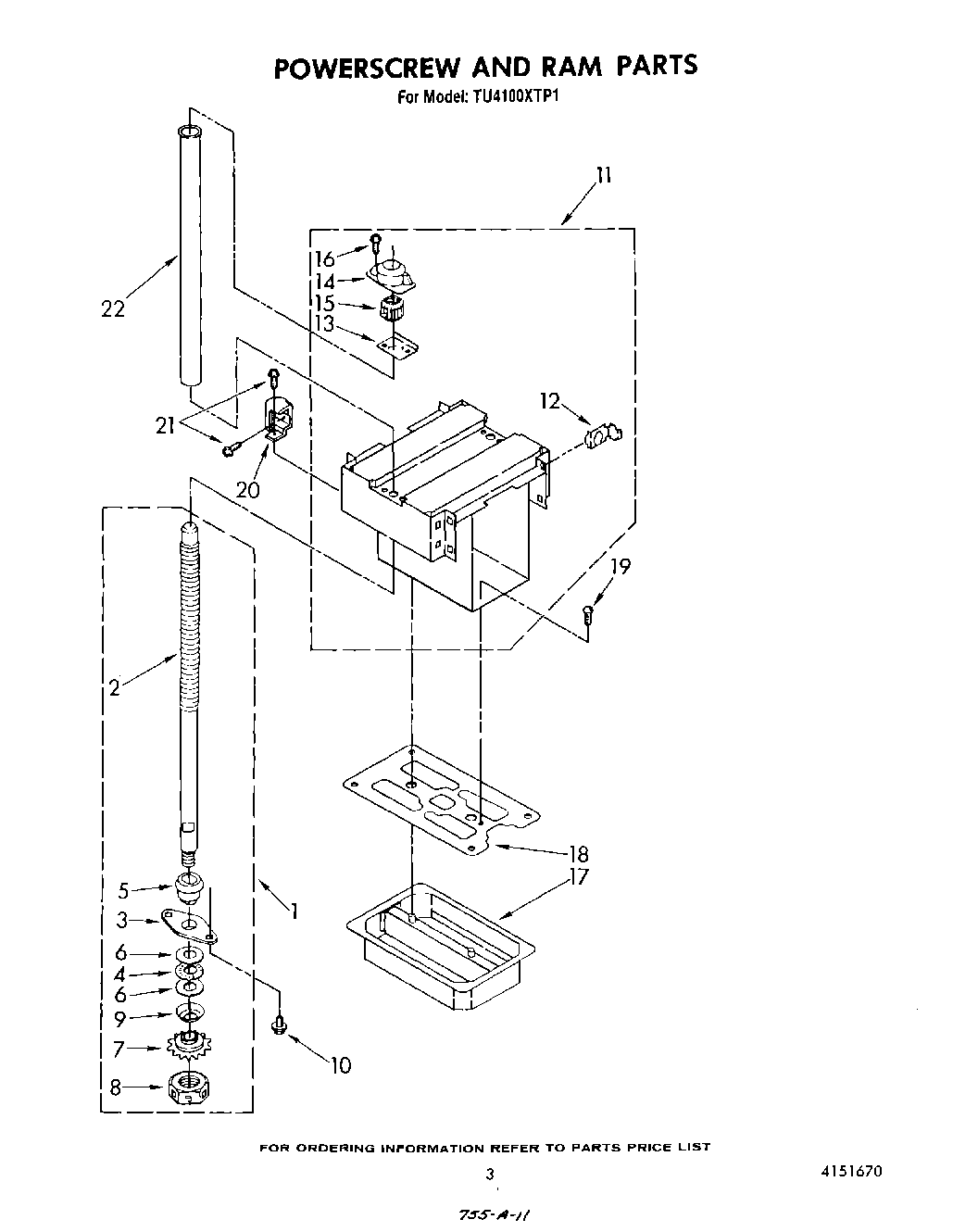

TU4100XTP1 03 – POWERSCREW AND RAMadmin2025-04-26T13:01:42+00:00TU4100XTP1 03 – POWERSCREW AND RAM
Products
| Position | Product |
|---|
| 1 | Screw, Power Complete Assembly (2) |
| 2 | Screw, Power (Available Only As Complete Assembly) |
| 3 | 779121 Whirlpool Compactor Plate |
| 4 | W10917043 Whirlpool Compactor Bearing |
| 5 | 776941 Whirlpool Compactor Power Crew Hub |
| 6 | 775481 Whirlpool Compactor Bearing |
| 7 | SPROCKET |
| 8 | 4154842 Whirlpool Compactor Nut |
| 9 | WP777332 Whirlpool Compactor Washer |
| 10 | Screw, 1/4-20 x 3/4 (4) |
| 11 | Ram Assembly |
| 12 | Pad, Ram (8) |
| 13 | Plate, Doubler (2) |
| 14 | Retainer, Nut (2) |
| 15 | WP777533 Whirlpool Trash Compactor Power Nut |
| 16 | WP3351614 Whirlpool Screw |
| 17 | Cover, Ram |
| 18 | Wiper, Ram |
| 19 | SCREW |
| 20 | Block, Container Stop |
| 21 | WP90767 Whirlpool Screw |
| 22 | Protector, Powerscrew (2) |
