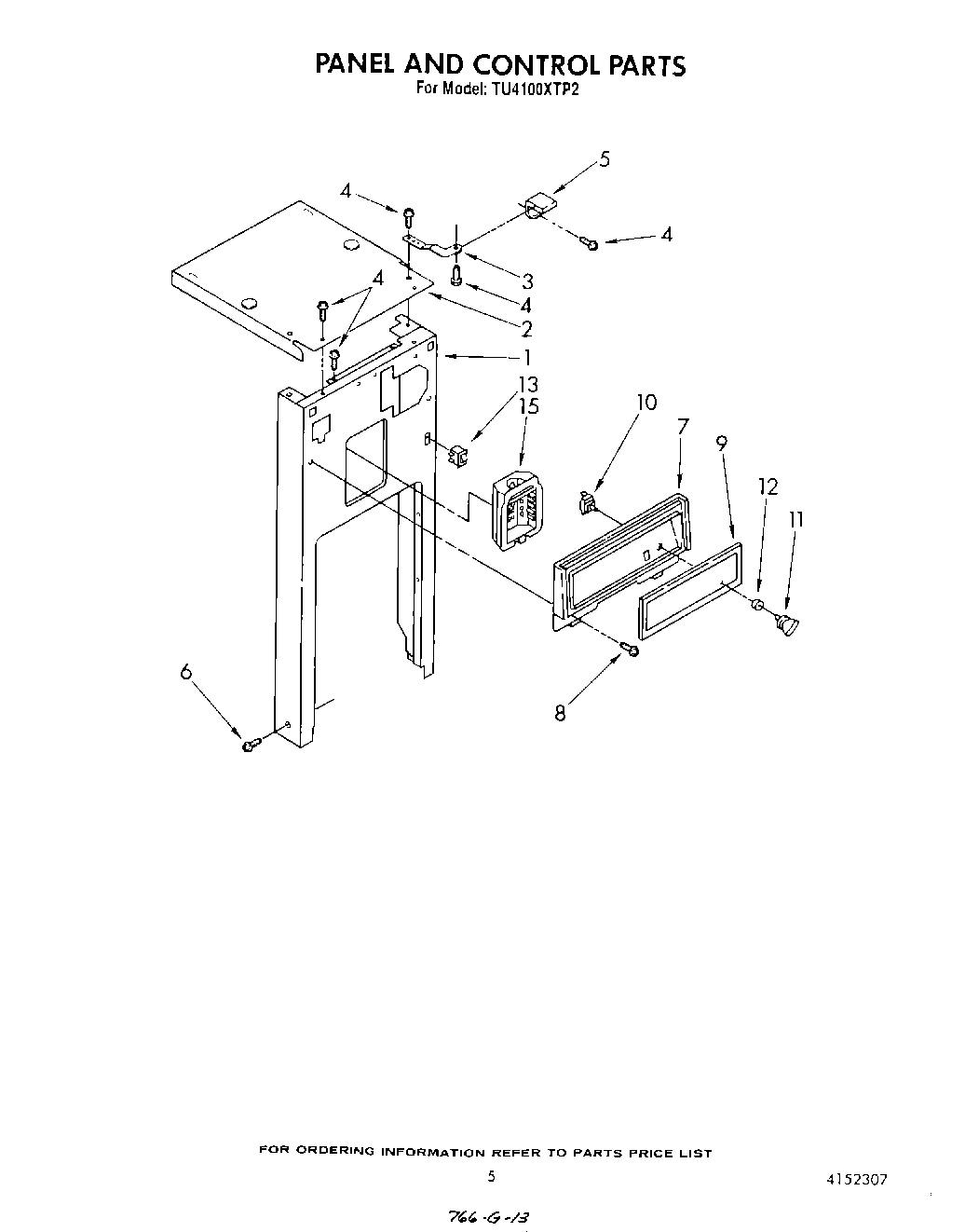

TU4100XTP2 05 – CABINET AND CONTROL

Products

Position	Product
1	Panel, Front Frame
2	Cover, Top
3	W11729437 Whirlpool Retaining Bracket
4	WP302868 Whirlpool Screw
5	WP780239 Whirlpool Compactor Bracket Retainer
6	WP489069 Whirlpool Compactor Screw
7	Escutcheon, Control
8	Screw, 6-20 x 3/8 (2)
9	Insert, Decorative
10	675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11	Knob, Rotary Switch
12	WP777383 Whirlpool Compactor Nut
13	WP4387911 Whirlpool Refrigerator Switch
15	Holder, Deodorant Storage
