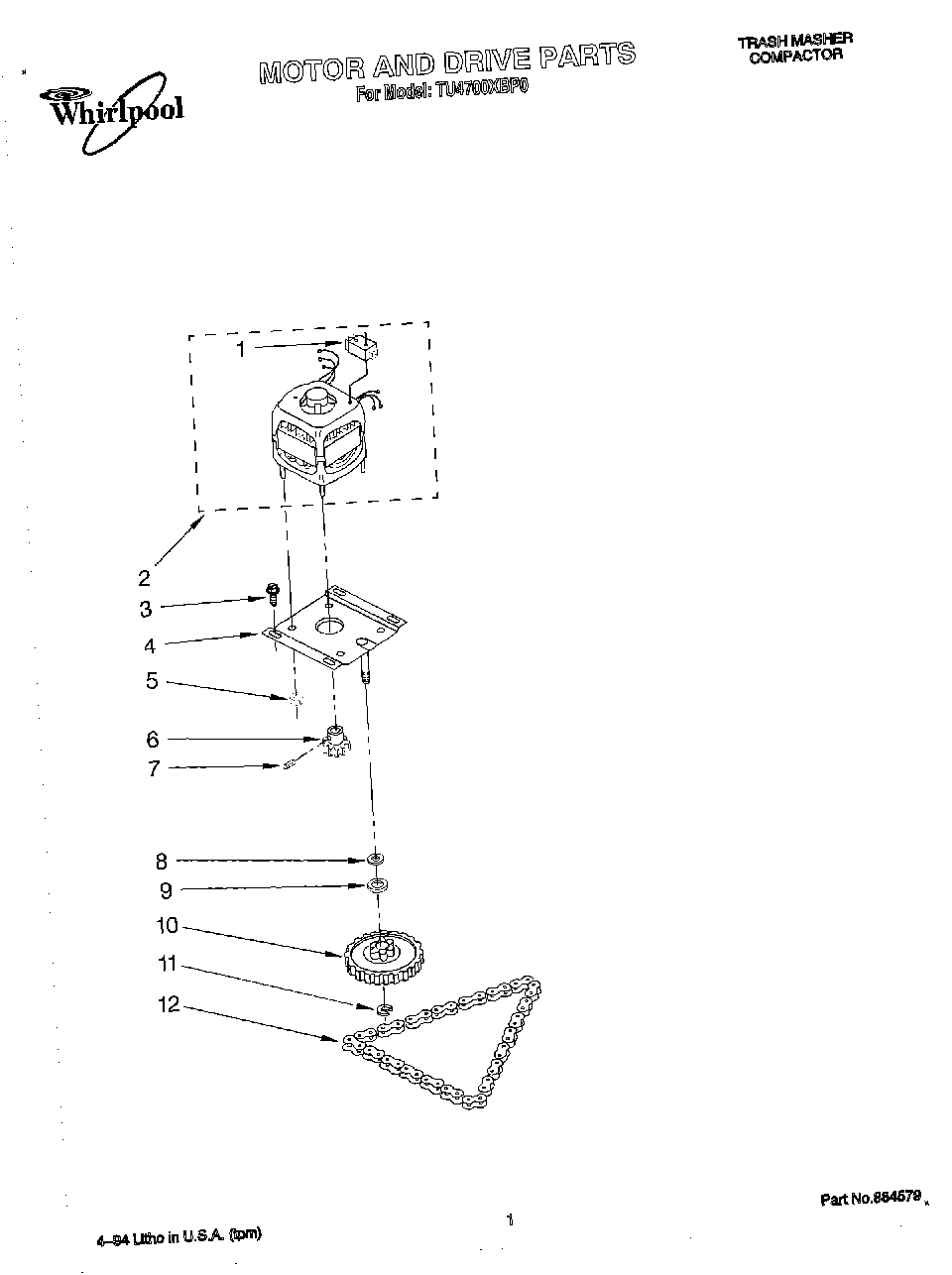

TU4700XBP0 01 – MOTOR AND DRIVE, LITERATURE

Products

PositionProduct
Guide, Use and Care
Wiring Diagram
Instructions, Installation
ENGLISH (Sheet, Tech)
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
1W10439651 Whirlpool Air Conditioner Motor Drive
3Screw. 1/4-20 x 1/2 (4)
4776327 Whirlpool Compactor Motor Plate
5WP776338 Whirlpool Compactor Nut
6GEAR KIT COMPACTOR
7WP454512 Whirlpool Compactor Spring Pin
8776035 Whirlpool Compactor Washer
9W11214485 Whirlpool Compactor Washer
11WP776036 Whirlpool Compactor Clip
12Harness, Wiring
12CHAIN-DRVE
