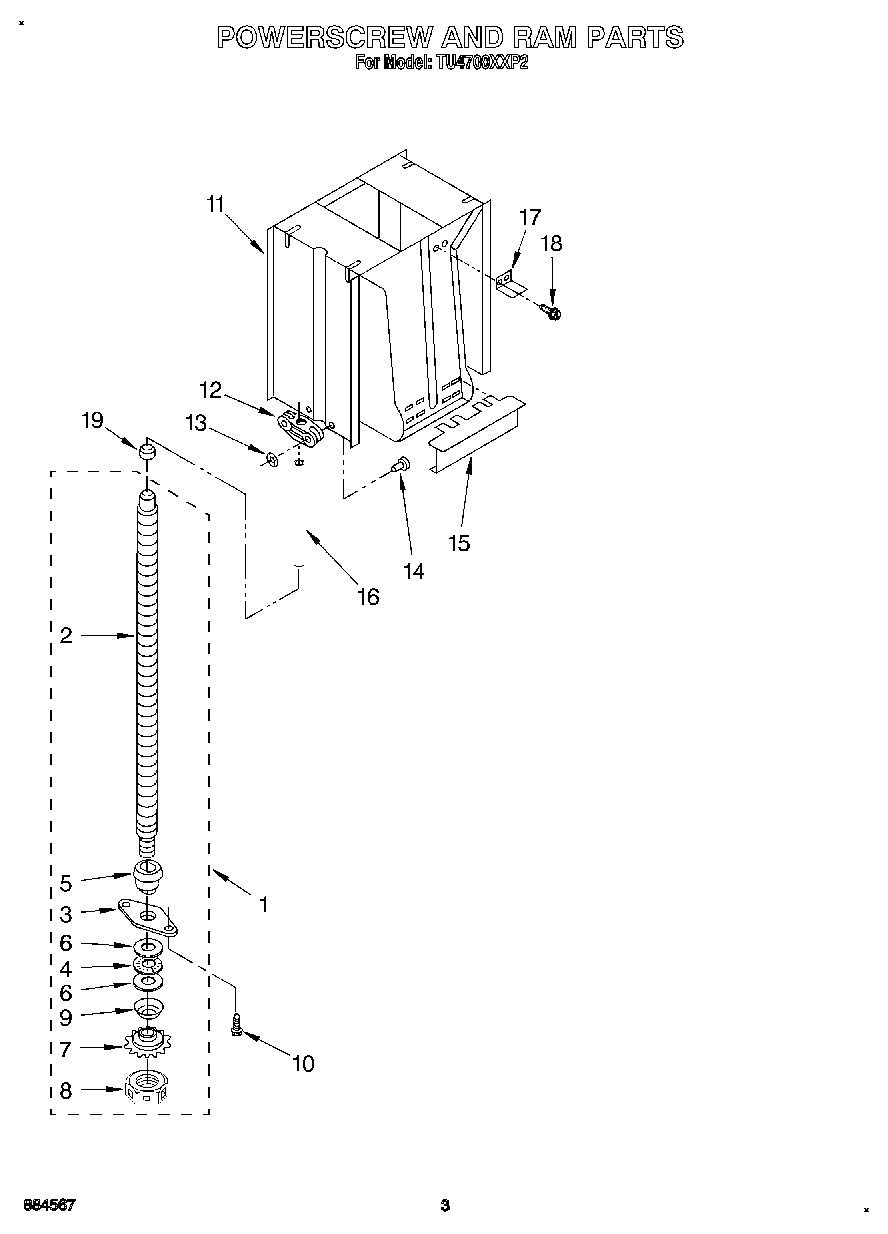

TU4700XXP2 03 – POWERSCREW AND RAM

Products

Position	Product
1	WPW10451272 Whirlpool Trash Compactor Power Screw
2	Screw, Power (Available Only As Complete Assembly)
3	779121 Whirlpool Compactor Plate
4	W10917043 Whirlpool Compactor Bearing
5	776941 Whirlpool Compactor Power Crew Hub
6	775481 Whirlpool Compactor Bearing
7	SPROCKET
8	4154842 Whirlpool Compactor Nut
9	WP777332 Whirlpool Compactor Washer
10	Screw, 1/4-20 x 3/4 (4)
11	Ram Assembly (Not Serviceable)
12	WP9870163 Whirlpool Compactor Trunnion Nut
13	WP90296 Whirlpool Clip
14	882694 Whirlpool Compactor Stud
15	Wiper
16	WP9870037 Whirlpool Ram Stop
17	Bracket, Top Limit Switch
18	WP3351614 Whirlpool Screw
19	WP9870775 Whirlpool Compactor Power Screw Cap
