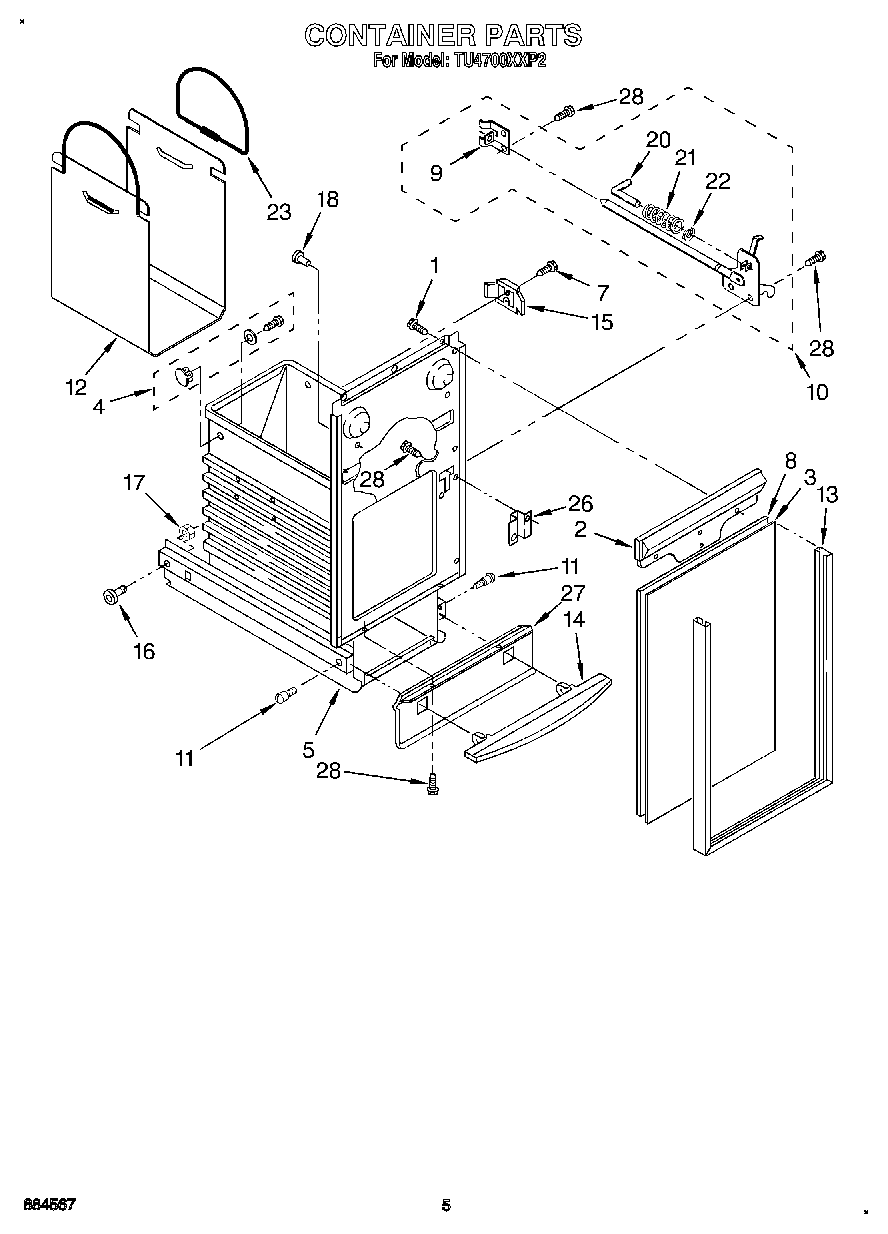

TU4700XXP2 05 – CONTIANER

TU4700XXP2 05 – CONTIANER

Written by

in

TU4700XXP2 05 – CONTIANER

Products

PositionProduct
2WP608732 Whirlpool Compactor Handle
3Panel, Container Front (Almond & Black)
4RETAINER, BAG
5Container Assembly
7Screw (2)
8Spacer, Center Panel
9WP776395 Whirlpool Compactor Guide
10675379 Whirlpool Compactor Drawer Latch
11Screw
1213030RP Whirlpool Compactor Bag Caddy
13Trim, Container (Front)
14W11679165 Whirlpool Foot Pedal
159871125 Whirlpool Compactor Actuator
16WP9871602 Whirlpool Compactor Bearing
17WP776356 Whirlpool Compactor Nut
18Bumper, Container (2)
20Pin
21775736 Whirlpool Compactor Spring
22Ring, “E“
23WP777108 Whirlpool Compactor Bag Handle
26775665 Whirlpool Compactor Plate Latch
27WP777328 Whirlpool Compactor Guard
28WP489069 Whirlpool Compactor Screw
