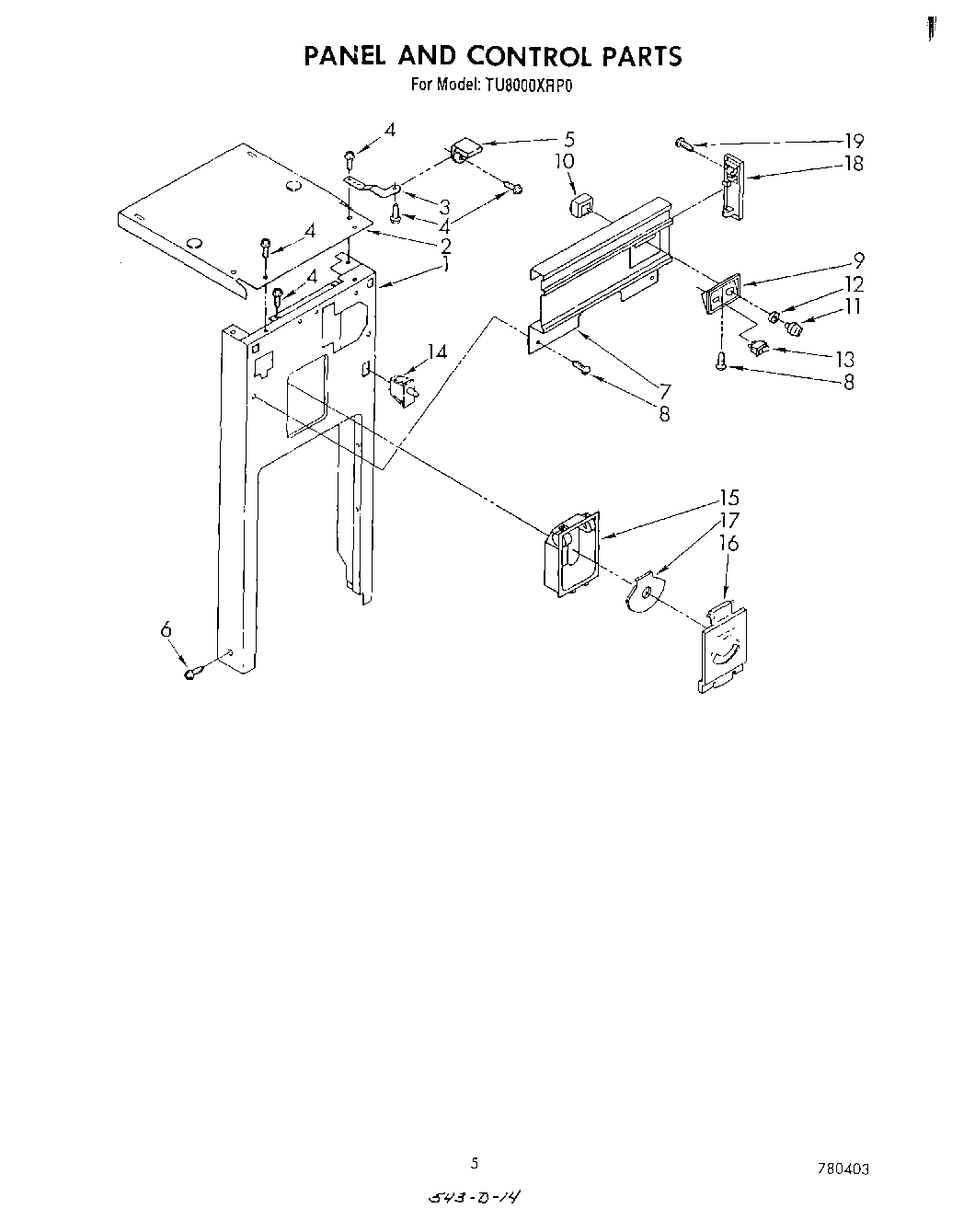

TU8000XRP0 05 – PANEL AND CONTROL

TU8000XRP0 05 – PANEL AND CONTROL

Written by

in

TU8000XRP0 05 – PANEL AND CONTROL

Products

PositionProduct
1Panel, Front Frame
2Cover, Top
3W11729437 Whirlpool Retaining Bracket
4WP302868 Whirlpool Screw
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489069 Whirlpool Compactor Screw
7Escutcheon, Control
8Screw, 6-20 x 3/8 (2)
9Bezel
10675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11776594 Whirlpool Power Switch Knob
12WP777383 Whirlpool Compactor Nut
13WP4314961 Whirlpool Lite Switch
14Switch, Drawer Tilt
15Compartment, Air Flow
16Cover, Air Flow
17Dail, Air Flow
18End Cap, Escutcheon (L.H.)
18End Cap, Escutcheon R.H.
19WPL 675167
19Paint, Touch-Up 1/2 Oz. (Stanford Brown)
19Paint, Spray 13 Oz. (Stanford Brown)
19Paint, Spray 13 Oz. (Avocado)
19350956 Whirlpool Spray Assembly
1972017 Whirlpool Appliance Touch-Up Paint White
19WP72107 Whirlpool Touchup
1972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1972113 Whirlpool Touch-Up Paint
19Golden Harvest
19Toast
19Paint, Spray (13 Oz.) (Platinum)
19WPL 72112
19Deodorizer, Solid Stick-Ups (2-Pack)
19285006 Whirlpool Spray
1972032 Whirlpool Touch Up Paint Black
1972109 Whirlpool Dacor Avocado Touch-Up Paint
19Paint, Touch-Up 1/2 Oz. (Coffee)
19paint, spray 13 oz. (coffee)
19350930 Whirlpool White Spray Paint
