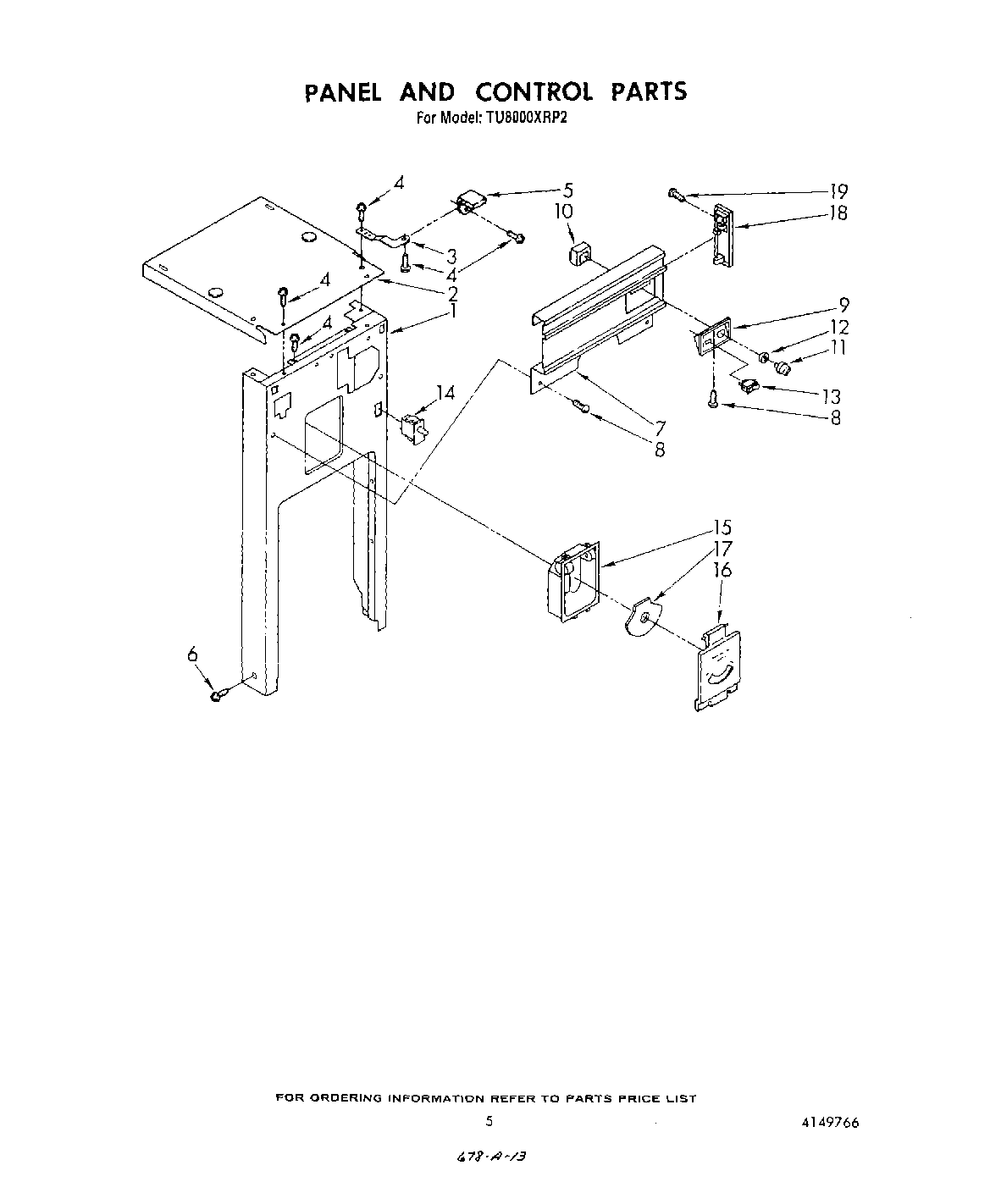

TU8000XRP2 05 – PANEL AND CONTROL

TU8000XRP2 05 – PANEL AND CONTROL

Written by

in

TU8000XRP2 05 – PANEL AND CONTROL

Products

PositionProduct
1Panel, Front Frame
2Cover, Top
3W11729437 Whirlpool Retaining Bracket
4WP302868 Whirlpool Screw
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489069 Whirlpool Compactor Screw
7Escutcheon, Control
8Screw, 6-20 x 3/8 (2)
9Bezel
10675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11776594 Whirlpool Power Switch Knob
12WP777383 Whirlpool Compactor Nut
13WP4314961 Whirlpool Lite Switch
14Switch, Drawer Tilt
15Compartment, Air Flow
16Cover, Air Flow
17Dail, Air Flow
18End Cap, Escutcheon (L.H.)
18End Cap, Escutcheon R.H.
19Harness, Wiring (Complete Assembly)
