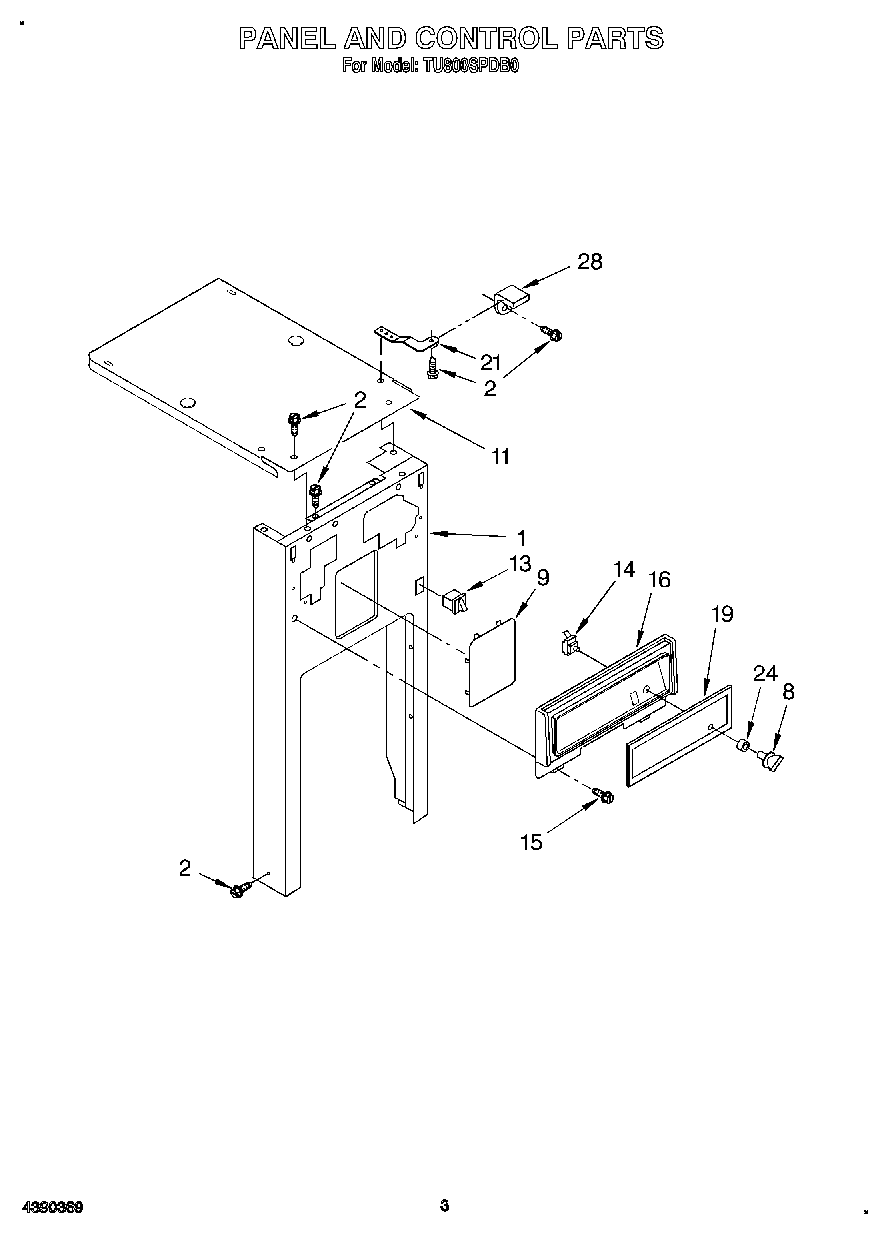

TU800SPDB0 03 – PANEL AND CONTROL

TU800SPDB0 03 – PANEL AND CONTROL

Written by

in

TU800SPDB0 03 – PANEL AND CONTROL

Products

PositionProduct
1Panel, Front Frame (Black)
1WP9870913 Whirlpool Cabinet
2WP489069 Whirlpool Compactor Screw
8Knob, Rotary Switch
99871160 Whirlpool Switch Plate
11Cover, Top
13WP4387911 Whirlpool Refrigerator Switch
14675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
15Screw, 6-20 x 3/8 (2)
16Escutcheon, Control
19Insert, Escutcheon
21W11729437 Whirlpool Retaining Bracket
24WP777383 Whirlpool Compactor Nut
28WP780239 Whirlpool Compactor Bracket Retainer
