TU800SPDB2 03 – PANEL AND CONTROL
Written by
in

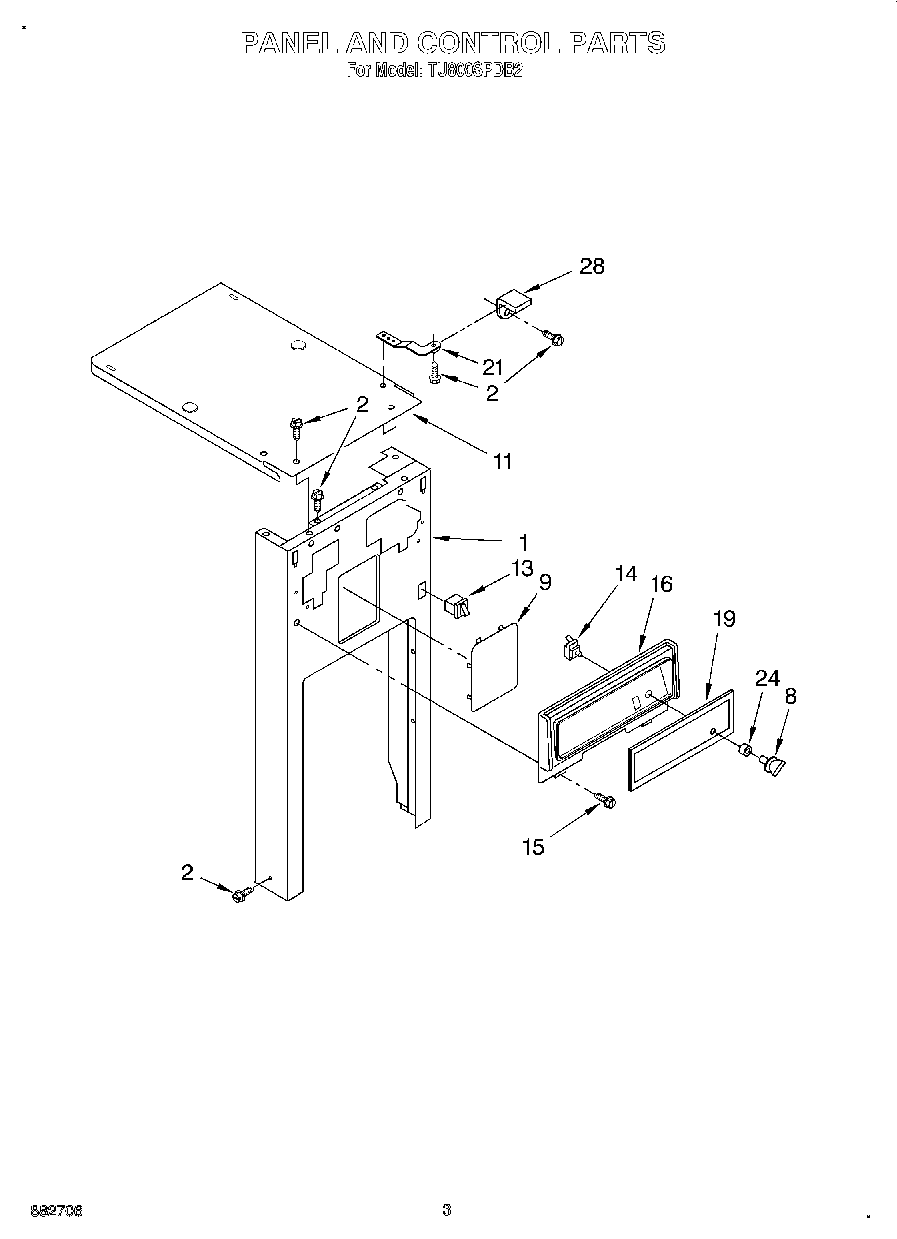

TU800SPDB2 03 – PANEL AND CONTROL
Products
Position
Product
1
Panel, Front Frame (Black)
2
WP489478 Whirlpool Refrigerator Screw
8
Knob, Rotary Switch
9
9871160 Whirlpool Switch Plate
11
Cover, Top
13
WP4387911 Whirlpool Refrigerator Switch
14
675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
15
777849 Whirlpool Compactor Screw
16
Escutcheon, Control
19
Insert, Escutcheon
21
W11729437 Whirlpool Retaining Bracket
24
WP777383 Whirlpool Compactor Nut
28
WP780239 Whirlpool Compactor Bracket Retainer
←
