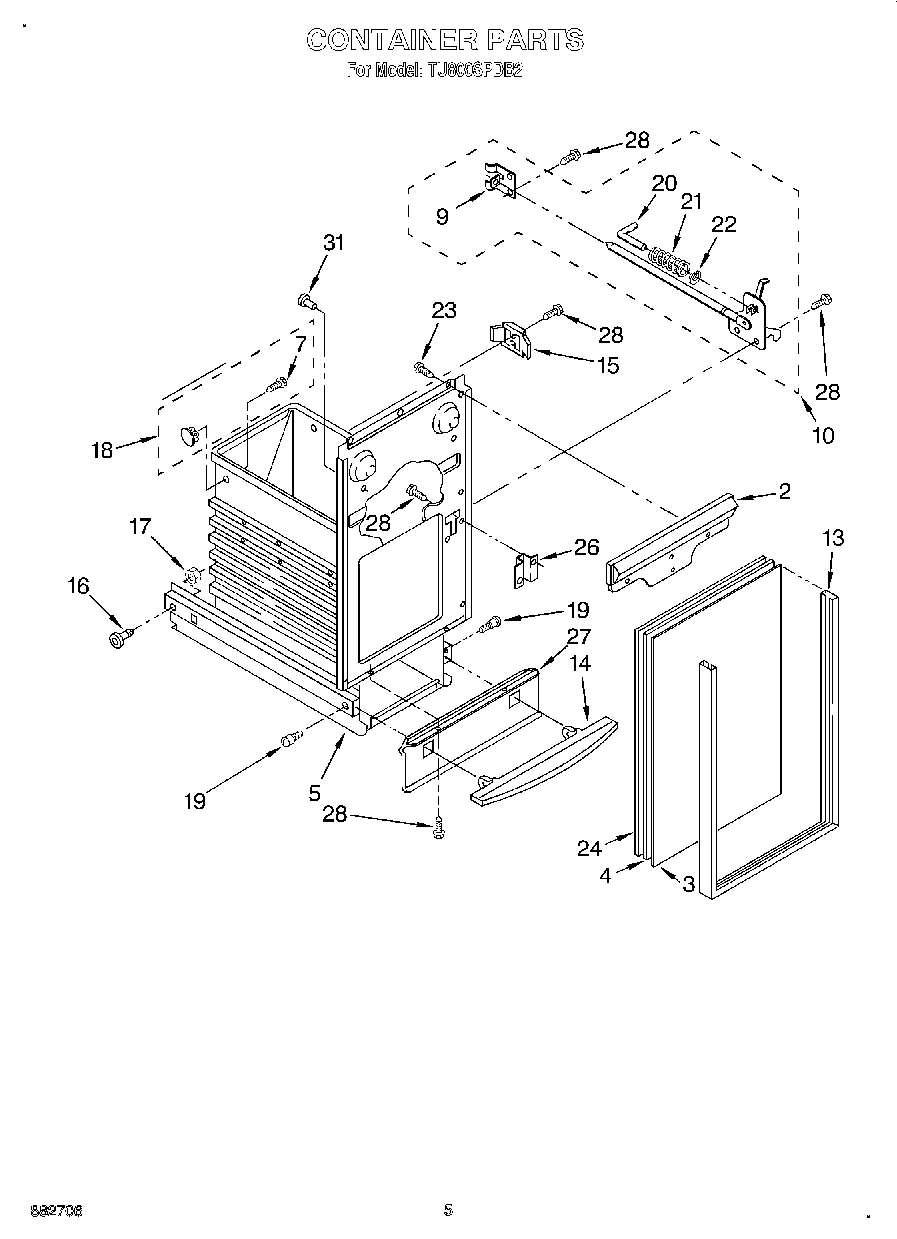

TU800SPDB2 05 – CONTAINER

Products

Position	Product
2	WP608732 Whirlpool Compactor Handle
3	Panel, Container Front (Black & White)
4	Spacer, Center Panel
5	Container Assembly
7	WP3196175 Whirlpool Screw
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
13	Trim, Container (Front)
14	W11679165 Whirlpool Foot Pedal
15	9871125 Whirlpool Compactor Actuator
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	RETAINER, BAG
19	WP780263 Whirlpool Compactor Screw
20	Pin
21	775736 Whirlpool Compactor Spring
22	Ring, “E“
23	WP489069 Whirlpool Compactor Screw
24	Spacer, Back Panel
26	775665 Whirlpool Compactor Plate Latch
27	WP777328 Whirlpool Compactor Guard
28	WP489478 Whirlpool Refrigerator Screw
31	Bumper, Container (2)
