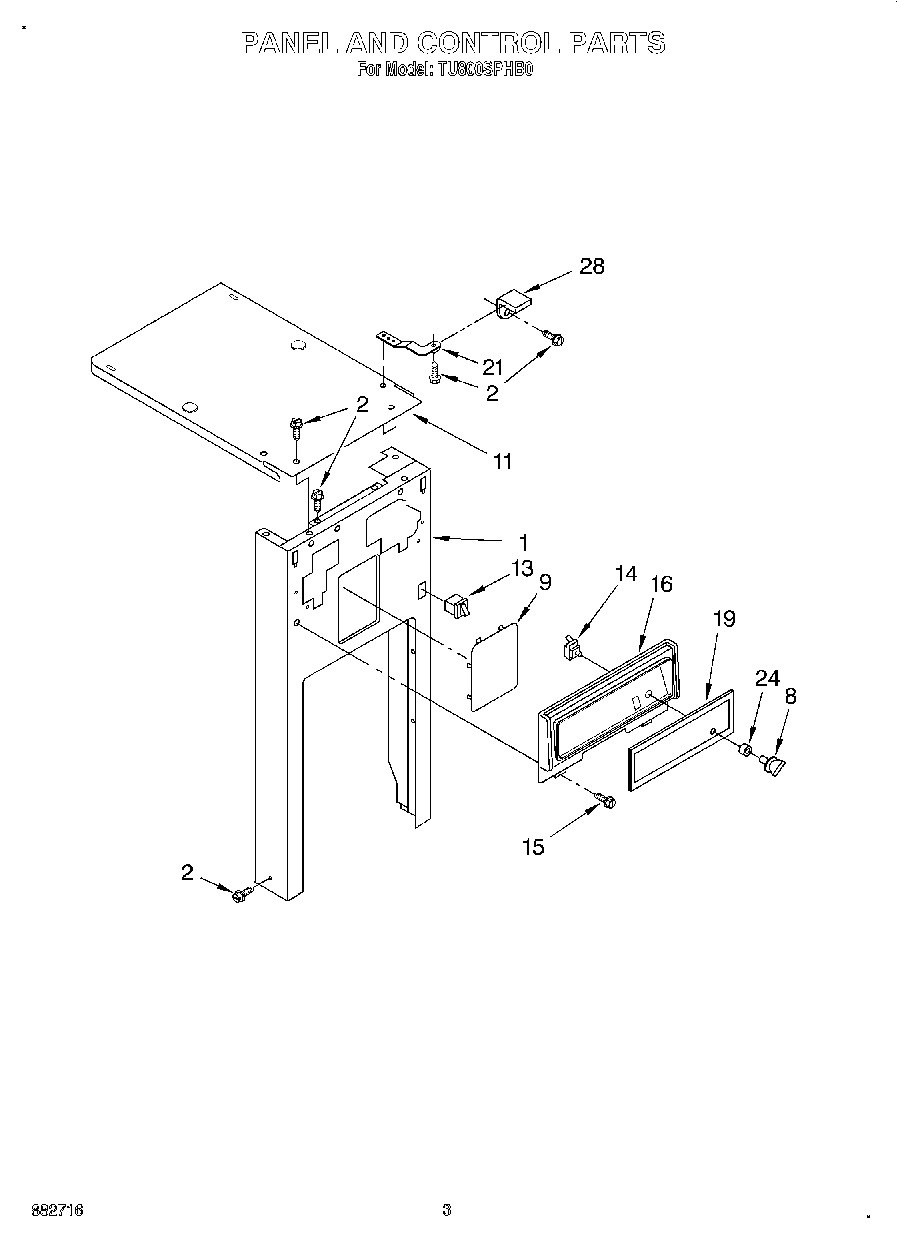

TU800SPHB0 03 – PANEL AND CONTROL

Products

PositionProduct
1Panel, Front Frame (Black)
2WP489478 Whirlpool Refrigerator Screw
8WP9870487 Whirlpool Compactor Switch Knob
99871160 Whirlpool Switch Plate
11Cover, Top
13WP4387911 Whirlpool Refrigerator Switch
14675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
15777849 Whirlpool Compactor Screw
16Escutcheon, Control
19Insert, Escutcheon
21W11729437 Whirlpool Retaining Bracket
24WP777383 Whirlpool Compactor Nut
28WP780239 Whirlpool Compactor Bracket Retainer
