TU800SPKB0 03 – PANEL AND CONTROL

TU800SPKB0 03 – PANEL AND CONTROL

Written by

in

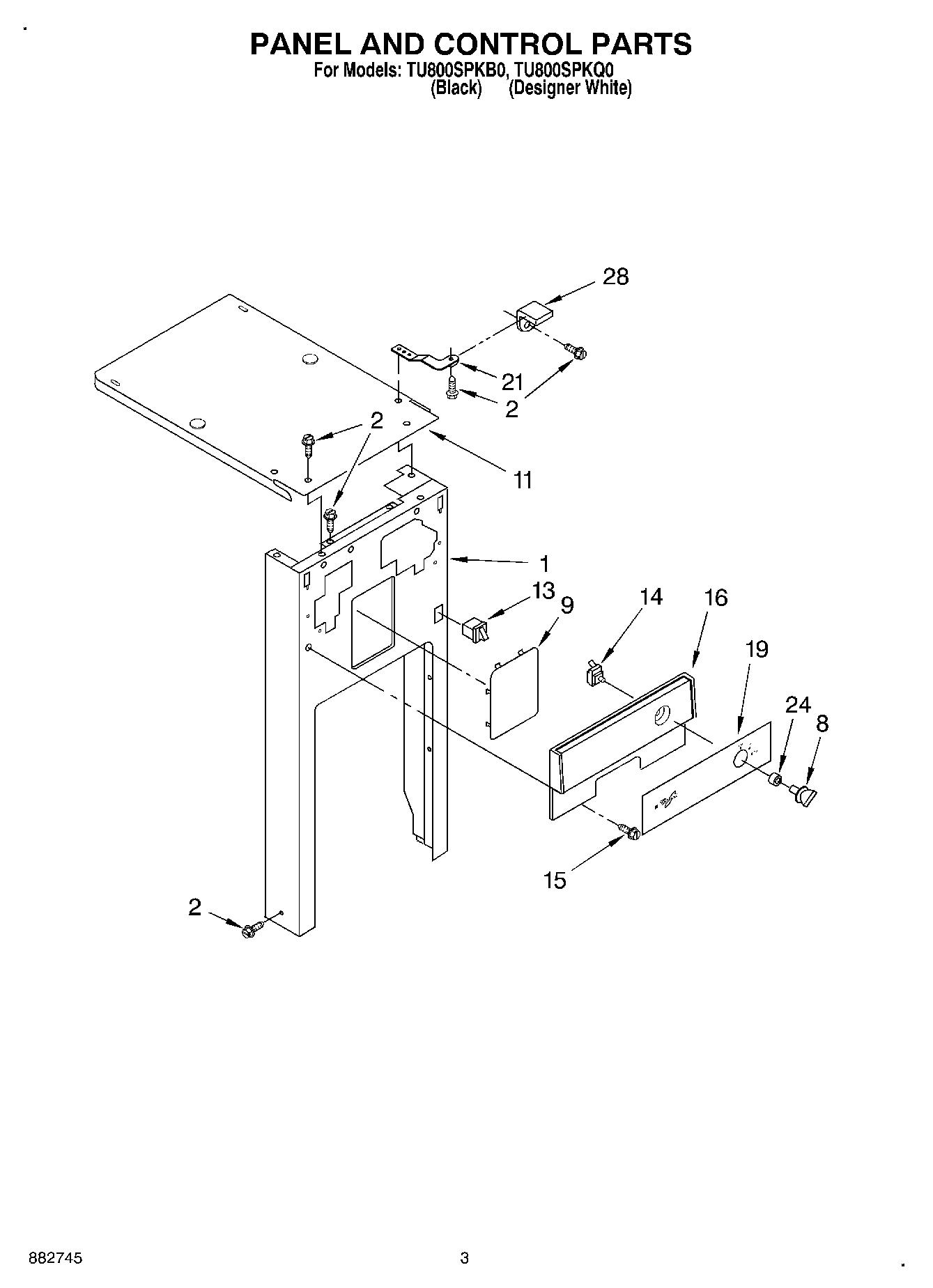

TU800SPKB0 03 – PANEL AND CONTROL

Products

PositionProduct
19871073 Whirlpool Compactor Panel
1Panel, Front Frame (Black)
2WP489478 Whirlpool Refrigerator Screw
8W10852377 Whirlpool Compactor Switch Knob
8WP9870487 Whirlpool Compactor Switch Knob
99871160 Whirlpool Switch Plate
9Plate, Cover (White)
11Cover, Top
139871829 Whirlpool Trash Compactor Door Switch
14675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
15777849 Whirlpool Compactor Screw
16Escutcheon, Control (White)
16WP9871839B Whirlpool Compactor Escutcheon
19Insert, Escutcheon
19Insert, (White Decorative)
21W11729437 Whirlpool Retaining Bracket
24WP777383 Whirlpool Compactor Nut
28WP780239 Whirlpool Compactor Bracket Retainer
