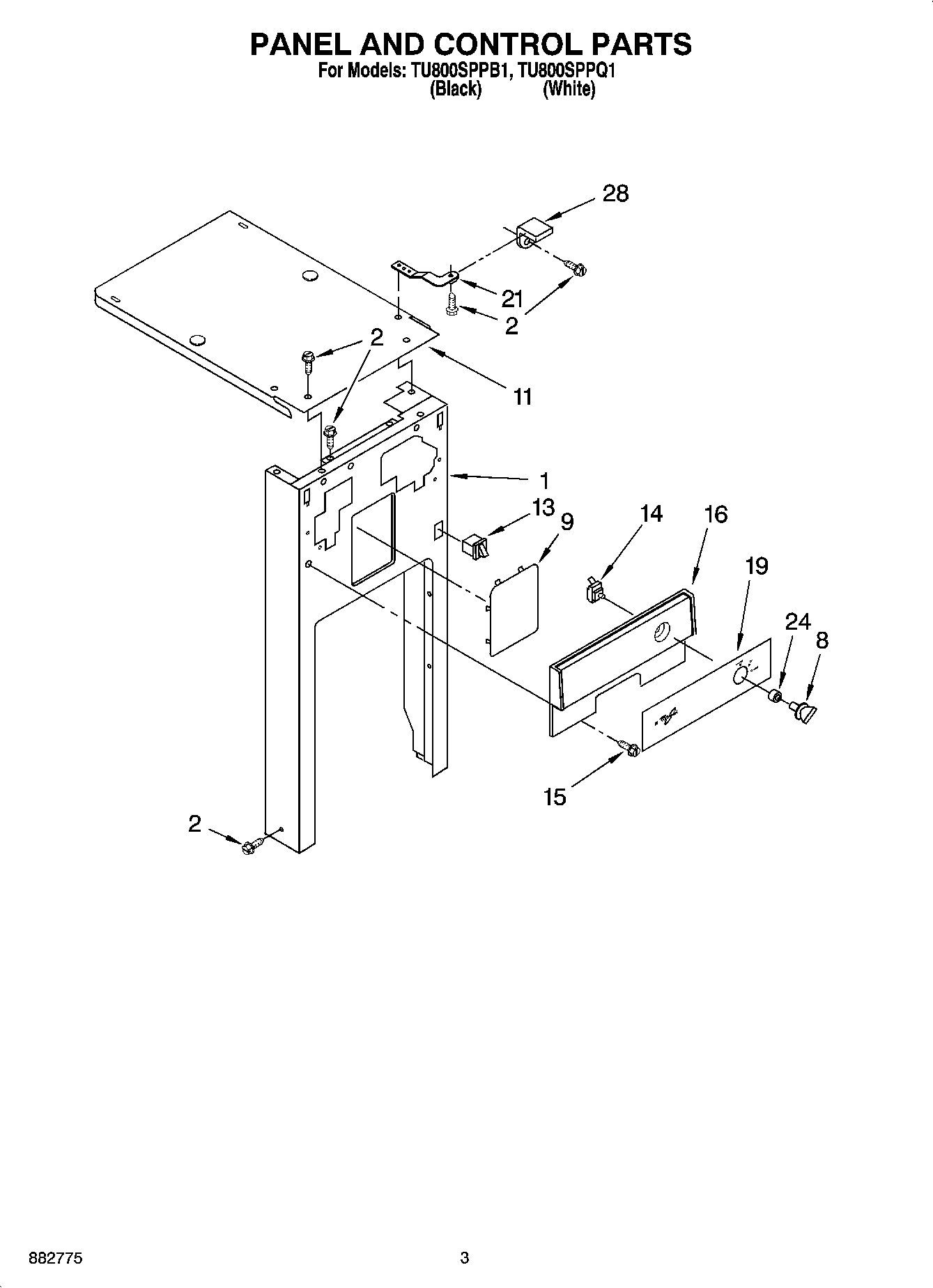

TU800SPPB1 03 – PANEL AND CONTROL PARTS

TU800SPPB1 03 – PANEL AND CONTROL PARTS

Written by

in

TU800SPPB1 03 – PANEL AND CONTROL PARTS

Products

PositionProduct
19871073 Whirlpool Compactor Panel
2WP489478 Whirlpool Refrigerator Screw
8WP9870487 Whirlpool Compactor Switch Knob
8W10852377 Whirlpool Compactor Switch Knob
9Plate, Cover (White)
99871160 Whirlpool Switch Plate
11Cover, Top
139871829 Whirlpool Trash Compactor Door Switch
14675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
15777849 Whirlpool Compactor Screw
16Escutcheon, Control (White)
16WP9871839B Whirlpool Compactor Escutcheon
19Insert, 9872078B Black (White Decorative)
21W11729437 Whirlpool Retaining Bracket
24WP777383 Whirlpool Compactor Nut
28WP780239 Whirlpool Compactor Bracket Retainer
