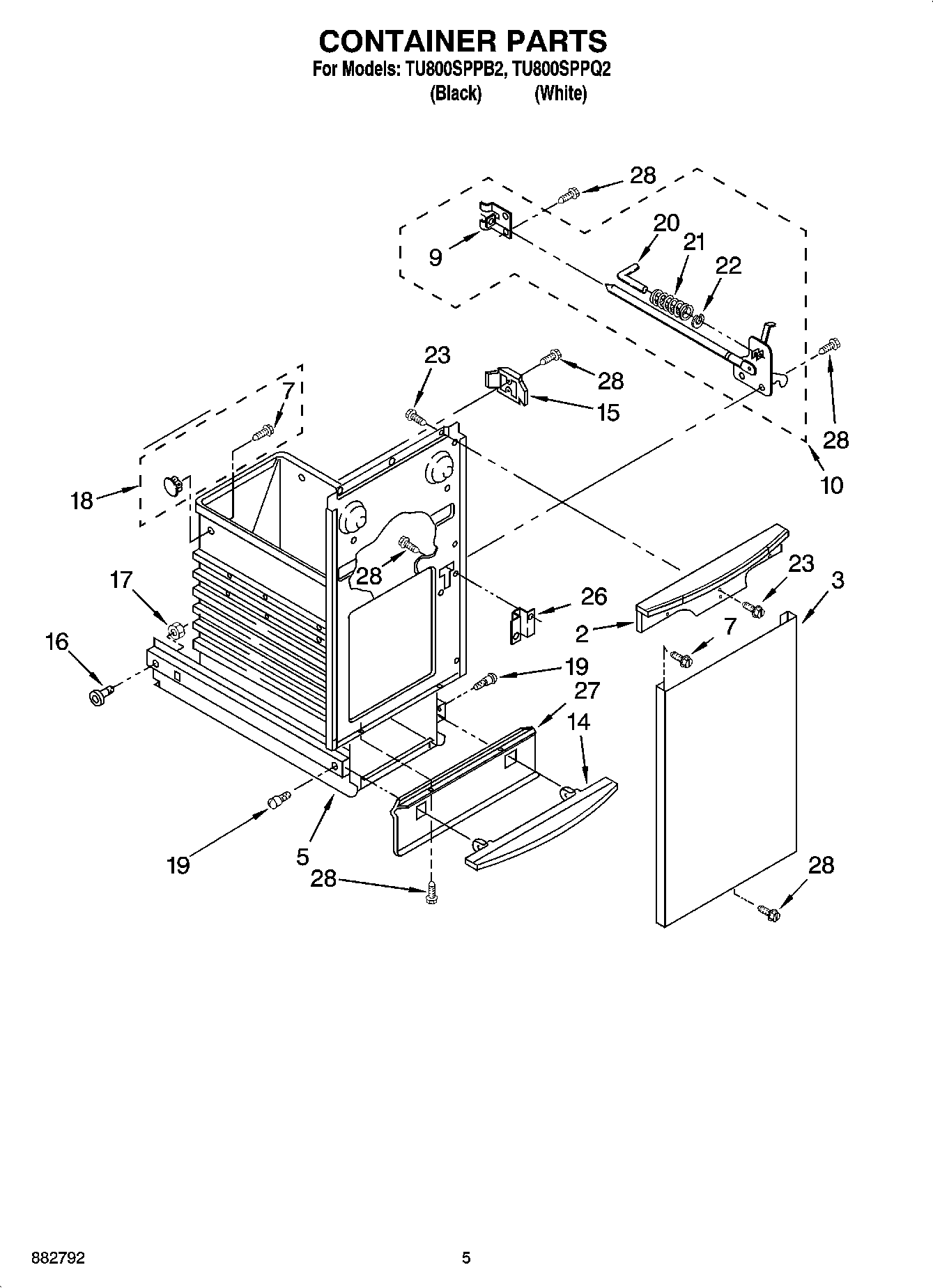

TU800SPPB2 05 – CONTAINER PARTS

Products

Position	Product
2	HANDLE
3	WP9871309 Whirlpool Compactor Panel
3	WP9871311 Whirlpool Compactor Panel
5	Container Assembly
7	WP3196175 Whirlpool Screw
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
14	W11679165 Whirlpool Foot Pedal
14	WP9871031 Whirlpool Compactor Foot Pedal
15	9871125 Whirlpool Compactor Actuator
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	RETAINER, BAG
19	WP780263 Whirlpool Compactor Screw
20	Pin
21	775736 Whirlpool Compactor Spring
22	Ring, ``E``
23	WP3400888 Whirlpool Compactor Screw
26	775665 Whirlpool Compactor Plate Latch
27	W10917704 Whirlpool Compactor Guard
27	WP777328 Whirlpool Compactor Guard
28	WP489478 Whirlpool Refrigerator Screw
