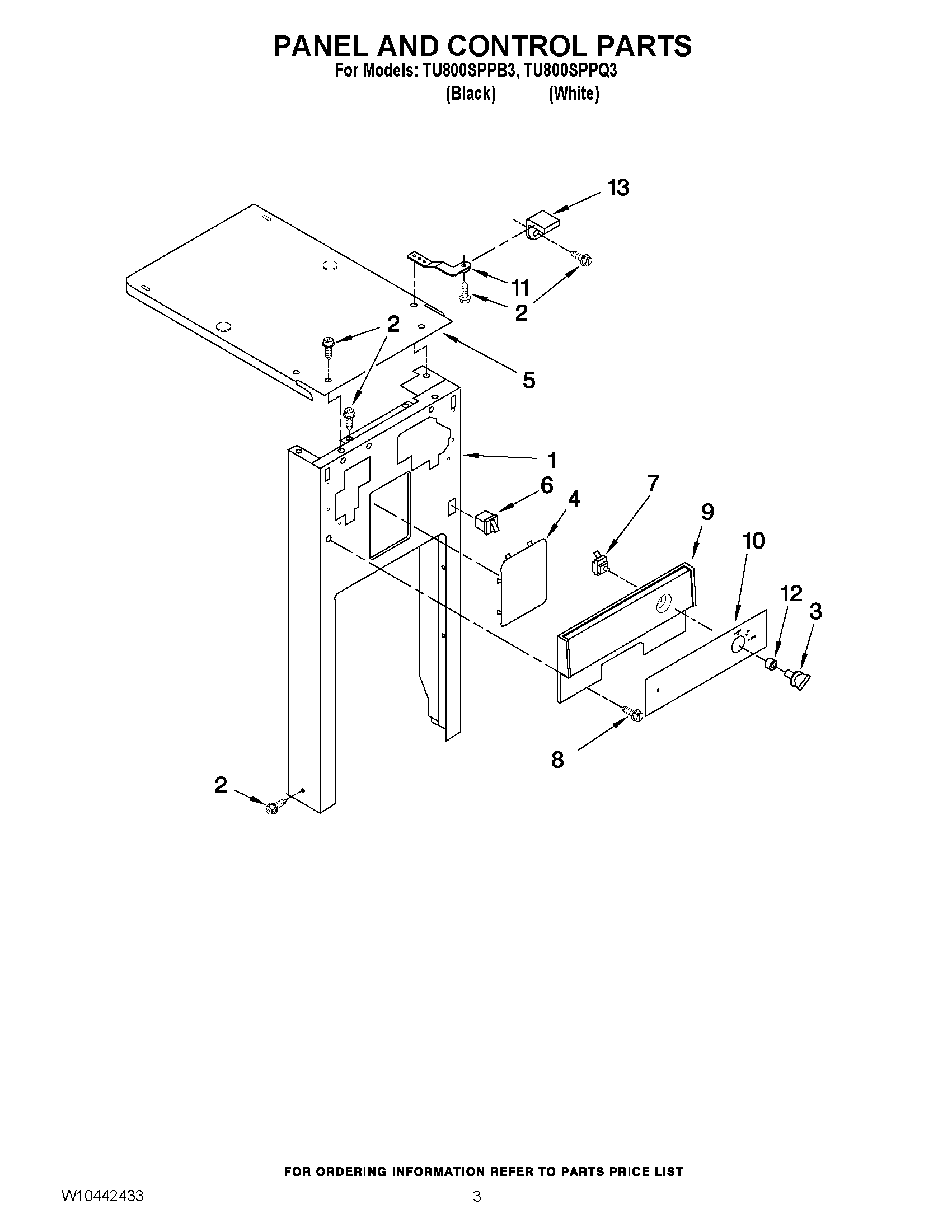

TU800SPPB3 03 – PANEL AND CONTROL PARTS

TU800SPPB3 03 – PANEL AND CONTROL PARTS

Written by

in

TU800SPPB3 03 – PANEL AND CONTROL PARTS

Products

PositionProduct
19871073 Whirlpool Compactor Panel
1Panel, Front Frame (Black)
2WP489478 Whirlpool Refrigerator Screw
3W10852377 Whirlpool Compactor Switch Knob
3WP9870487 Whirlpool Compactor Switch Knob
49871160 Whirlpool Switch Plate
4Plate, Cover (White)
5Cover, Top
69871829 Whirlpool Trash Compactor Door Switch
7675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
8777849 Whirlpool Compactor Screw
9Escutcheon, Control (White)
9WP9871839B Whirlpool Compactor Escutcheon
10Insert, 9872078B Black (White Decorative)
10INSERT, (BLACK)
11W11729437 Whirlpool Retaining Bracket
12WP777383 Whirlpool Compactor Nut
13WP780239 Whirlpool Compactor Bracket Retainer
