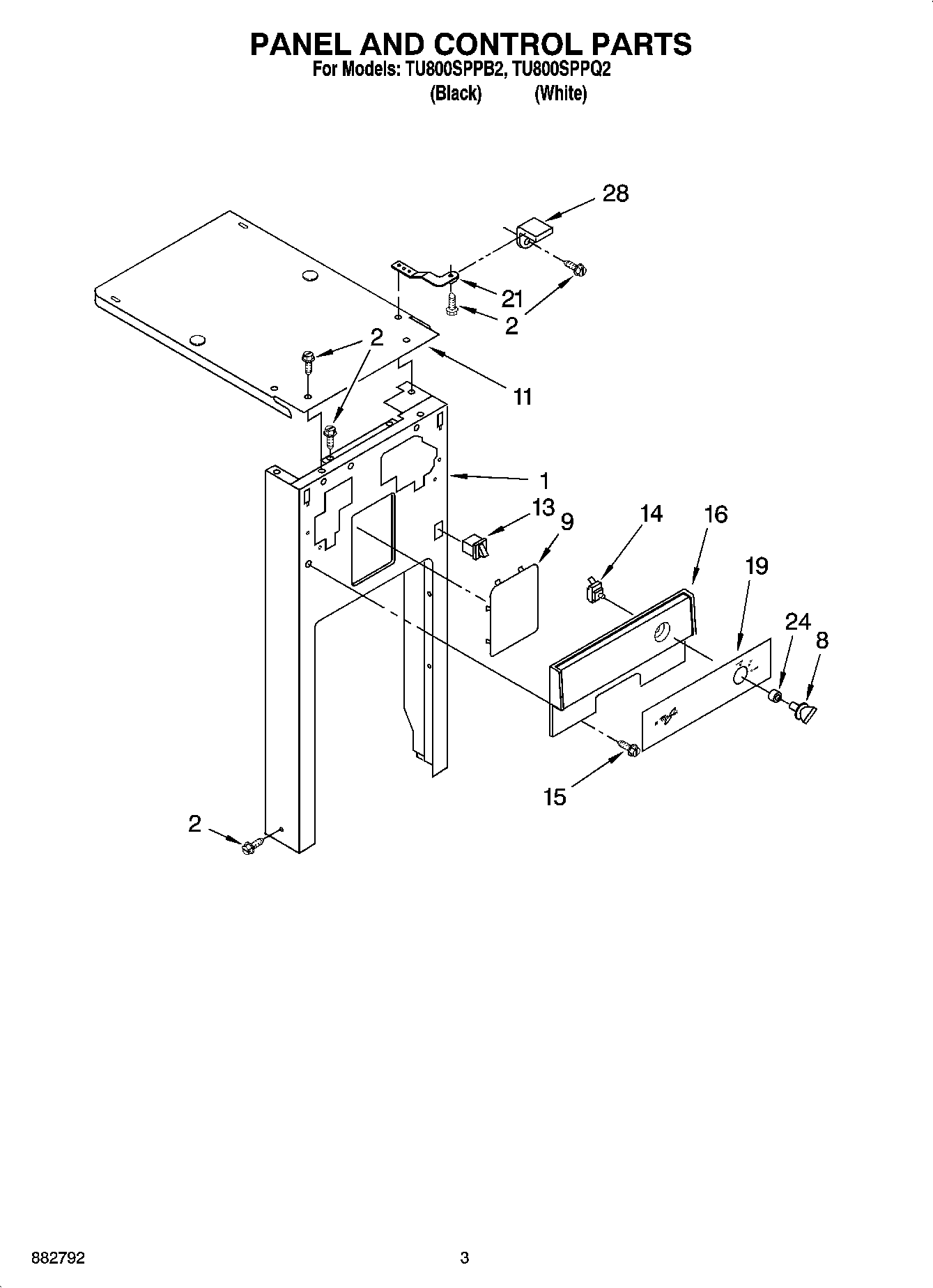

TU800SPPQ2 03 – PANEL AND CONTROL PARTS

Products

Position	Product
1	9871073 Whirlpool Compactor Panel
2	WP489478 Whirlpool Refrigerator Screw
8	WP9870487 Whirlpool Compactor Switch Knob
8	W10852377 Whirlpool Compactor Switch Knob
9	Plate, Cover (White)
9	9871160 Whirlpool Switch Plate
11	Cover, Top
13	9871829 Whirlpool Trash Compactor Door Switch
14	675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
15	777849 Whirlpool Compactor Screw
16	Escutcheon, Control (White)
16	WP9871839B Whirlpool Compactor Escutcheon
19	Insert, 9872078B Black (White Decorative)
21	W11729437 Whirlpool Retaining Bracket
24	WP777383 Whirlpool Compactor Nut
28	WP780239 Whirlpool Compactor Bracket Retainer
