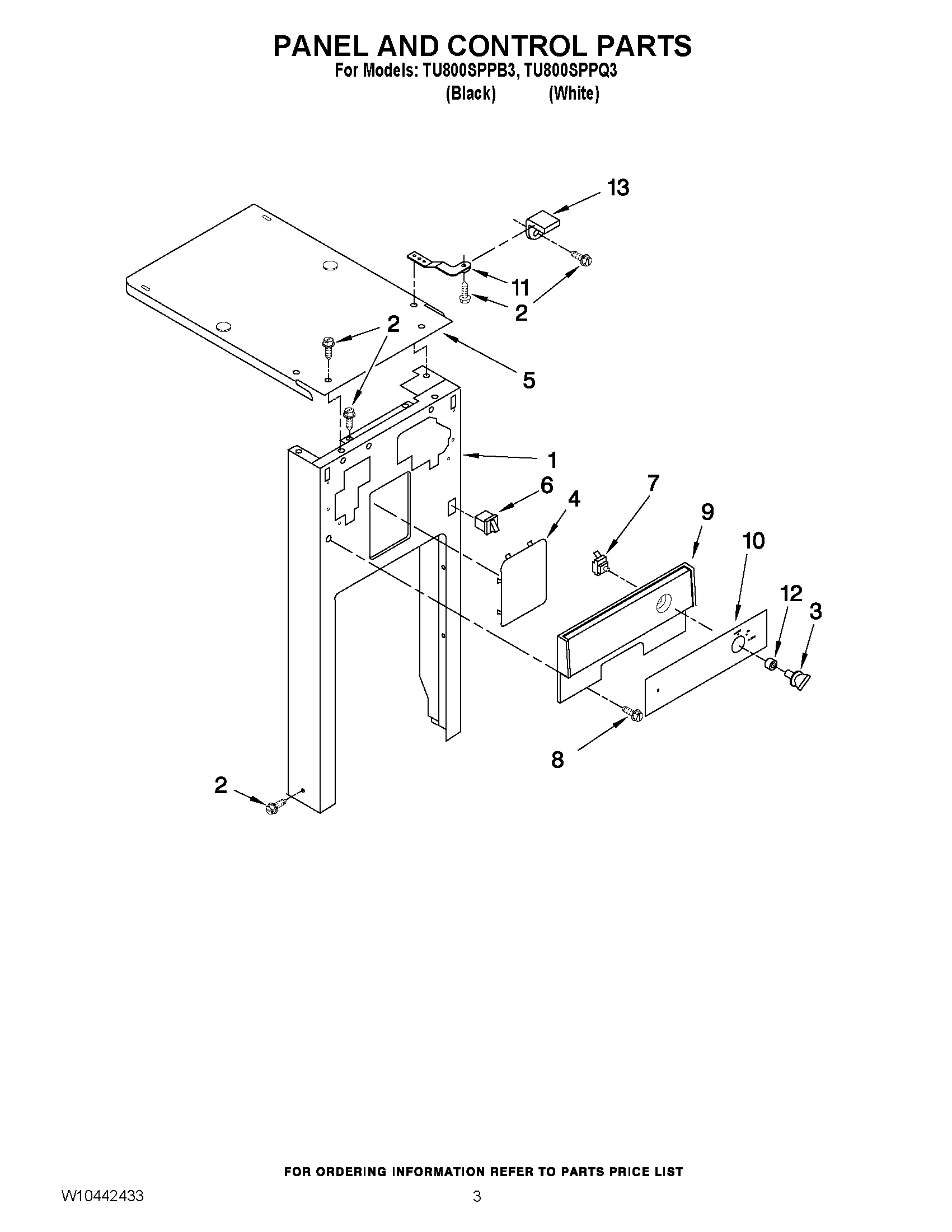

TU800SPPQ3 03 – PANEL AND CONTROL PARTS

Products

Position	Product
1	9871073 Whirlpool Compactor Panel
1	Panel, Front Frame (Black)
2	WP489478 Whirlpool Refrigerator Screw
3	W10852377 Whirlpool Compactor Switch Knob
3	WP9870487 Whirlpool Compactor Switch Knob
4	9871160 Whirlpool Switch Plate
4	Plate, Cover (White)
5	Cover, Top
6	9871829 Whirlpool Trash Compactor Door Switch
7	675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
8	777849 Whirlpool Compactor Screw
9	Escutcheon, Control (White)
9	WP9871839B Whirlpool Compactor Escutcheon
10	Insert, 9872078B Black (White Decorative)
10	INSERT, (BLACK)
11	W11729437 Whirlpool Retaining Bracket
12	WP777383 Whirlpool Compactor Nut
13	WP780239 Whirlpool Compactor Bracket Retainer
