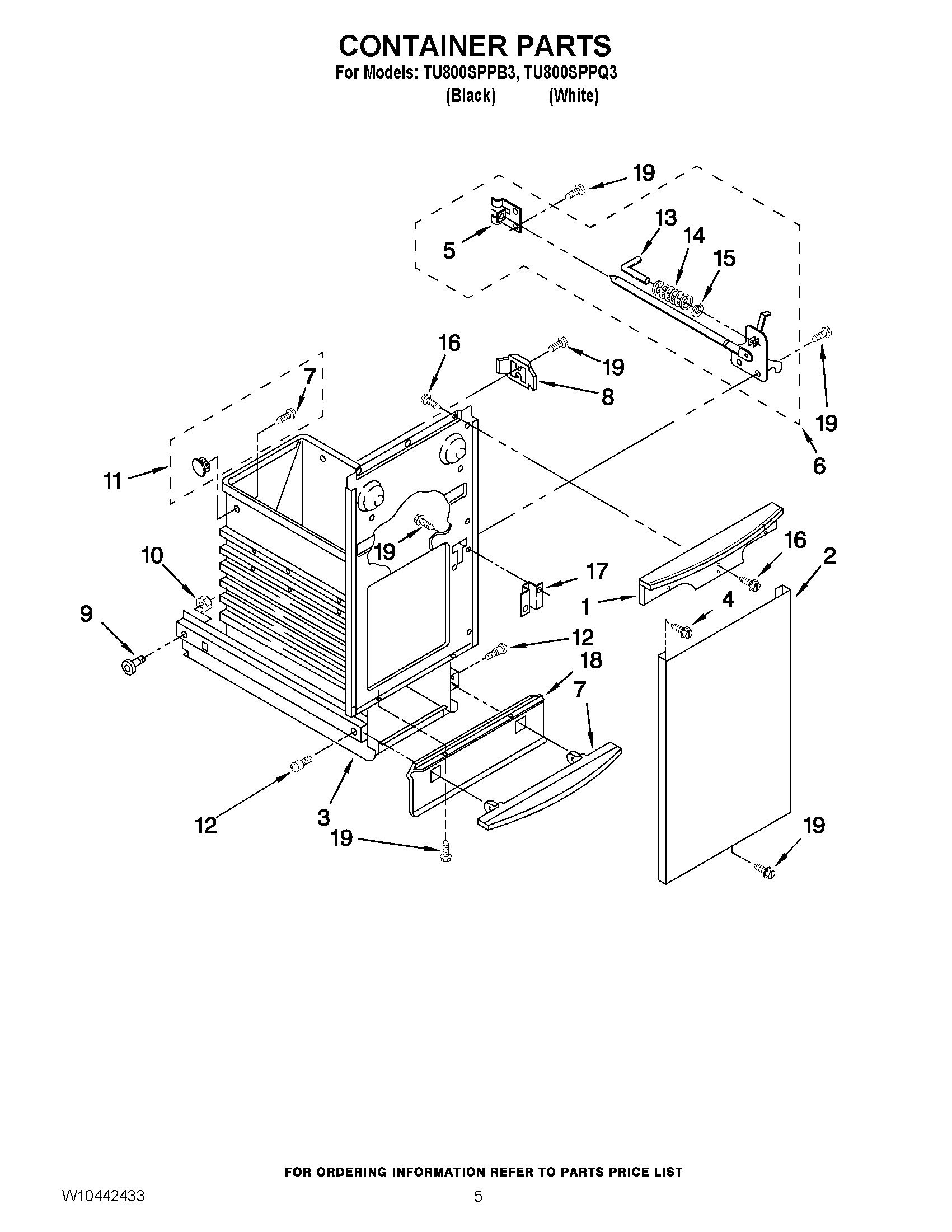

TU800SPPQ3 05 – CONTAINER PARTS

TU800SPPQ3 05 – CONTAINER PARTS

Written by

in

TU800SPPQ3 05 – CONTAINER PARTS

Products

PositionProduct
1HANDLE
2WP9871311 Whirlpool Compactor Panel
2WP9871309 Whirlpool Compactor Panel
3WPW10451276 Whirlpool Compactor Container
4WP3196175 Whirlpool Screw
5WP776395 Whirlpool Compactor Guide
6675379 Whirlpool Compactor Drawer Latch
7W11679165 Whirlpool Foot Pedal
7WP9871031 Whirlpool Compactor Foot Pedal
89871125 Whirlpool Compactor Actuator
9WP9871602 Whirlpool Compactor Bearing
10WP776356 Whirlpool Compactor Nut
11RETAINER, BAG
12WP780263 Whirlpool Compactor Screw
13Pin
14775736 Whirlpool Compactor Spring
15Ring, “E“
16SCREW
17775665 Whirlpool Compactor Plate Latch
18W10917704 Whirlpool Compactor Guard
18WP777328 Whirlpool Compactor Guard
19WP489478 Whirlpool Refrigerator Screw
