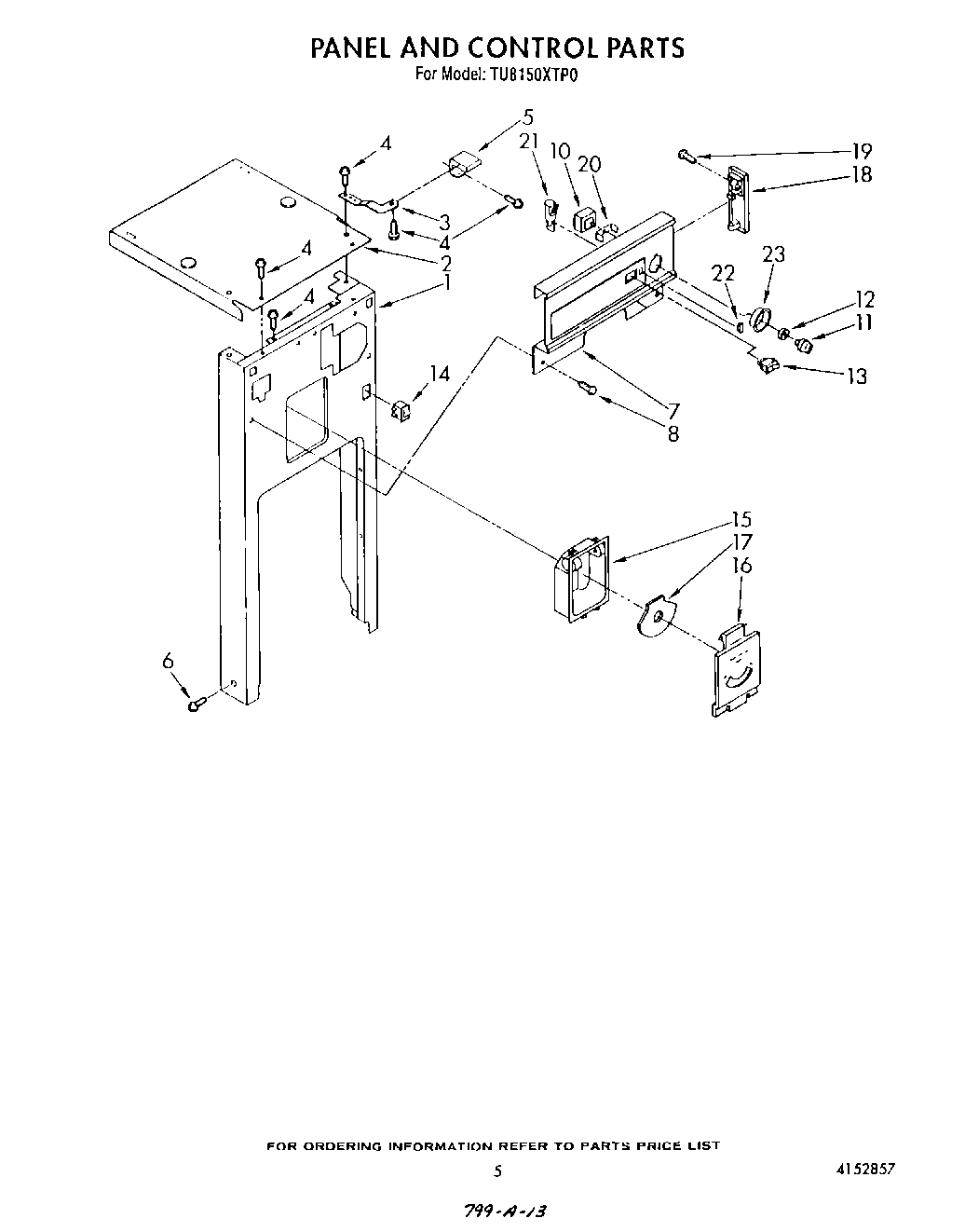

TU8150XTP0 05 – PANEL AND CONTROLadmin2025-04-26T12:58:57+00:00TU8150XTP0 05 – PANEL AND CONTROL
Products
| Position | Product |
|---|
| 1 | Panel, Front Frame |
| 2 | Cover, Top |
| 3 | W11729437 Whirlpool Retaining Bracket |
| 4 | WP302868 Whirlpool Screw |
| 5 | WP780239 Whirlpool Compactor Bracket Retainer |
| 6 | WP489069 Whirlpool Compactor Screw |
| 7 | Escutcheon, Control (White) |
| 8 | Screw, 6-20 x 3/8 (2) |
| 10 | 675382 Whirlpool Trash Compactor On Off Start Top Limit Switch |
| 11 | 776594 Whirlpool Power Switch Knob |
| 12 | WP777383 Whirlpool Compactor Nut |
| 13 | WP4314961 Whirlpool Lite Switch |
| 14 | WP4387911 Whirlpool Refrigerator Switch |
| 15 | Compartment, Air Flow |
| 16 | Cover, Air Flow |
| 17 | Dail, Air Flow |
| 18 | End Cap, R.H. |
| 18 | End Cap, L.H. |
| 20 | Bracket, Switch |
| 21 | Light, Indicator |
| 22 | Lens, Indicator |
| 23 | Bezel |
