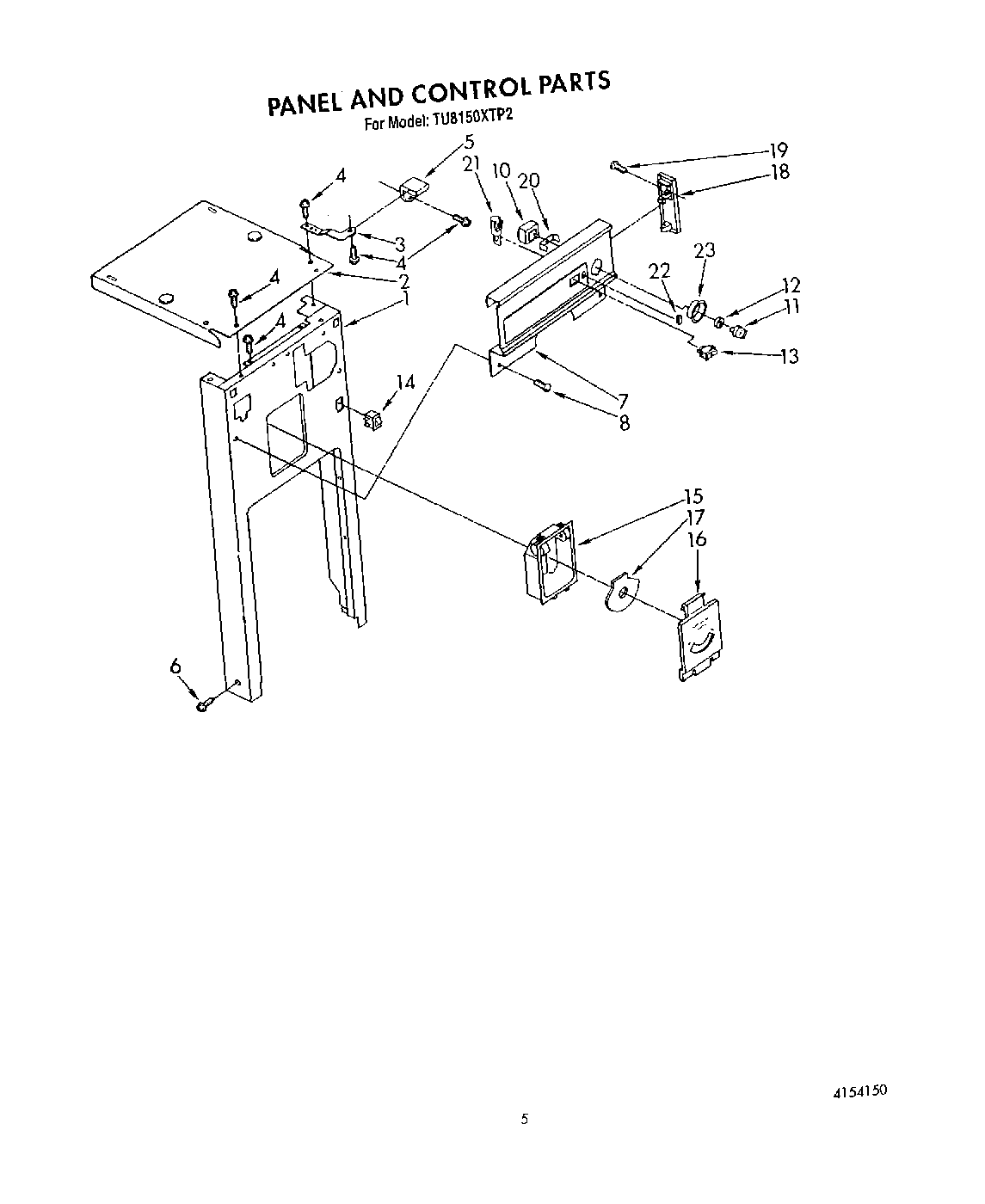

TU8150XTP2 05 – PANEL AND CONTROL

Products

Position	Product
1	Panel, Front Frame
2	Cover, Top
3	W11729437 Whirlpool Retaining Bracket
4	WP302868 Whirlpool Screw
5	WP780239 Whirlpool Compactor Bracket Retainer
6	WP489069 Whirlpool Compactor Screw
7	Escutcheon, Control (White)
8	Screw, 6-20 x 3/8 (2)
10	675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11	776594 Whirlpool Power Switch Knob
12	WP777383 Whirlpool Compactor Nut
13	WP4314961 Whirlpool Lite Switch
14	WP4387911 Whirlpool Refrigerator Switch
15	Compartment, Air Flow
16	Cover, Air Flow
17	Dail, Air Flow
18	End Cap, R.H.
18	End Cap, L.H.
20	Bracket, Switch
21	Light, Indicator
22	Lens, Indicator
23	Bezel (White)
