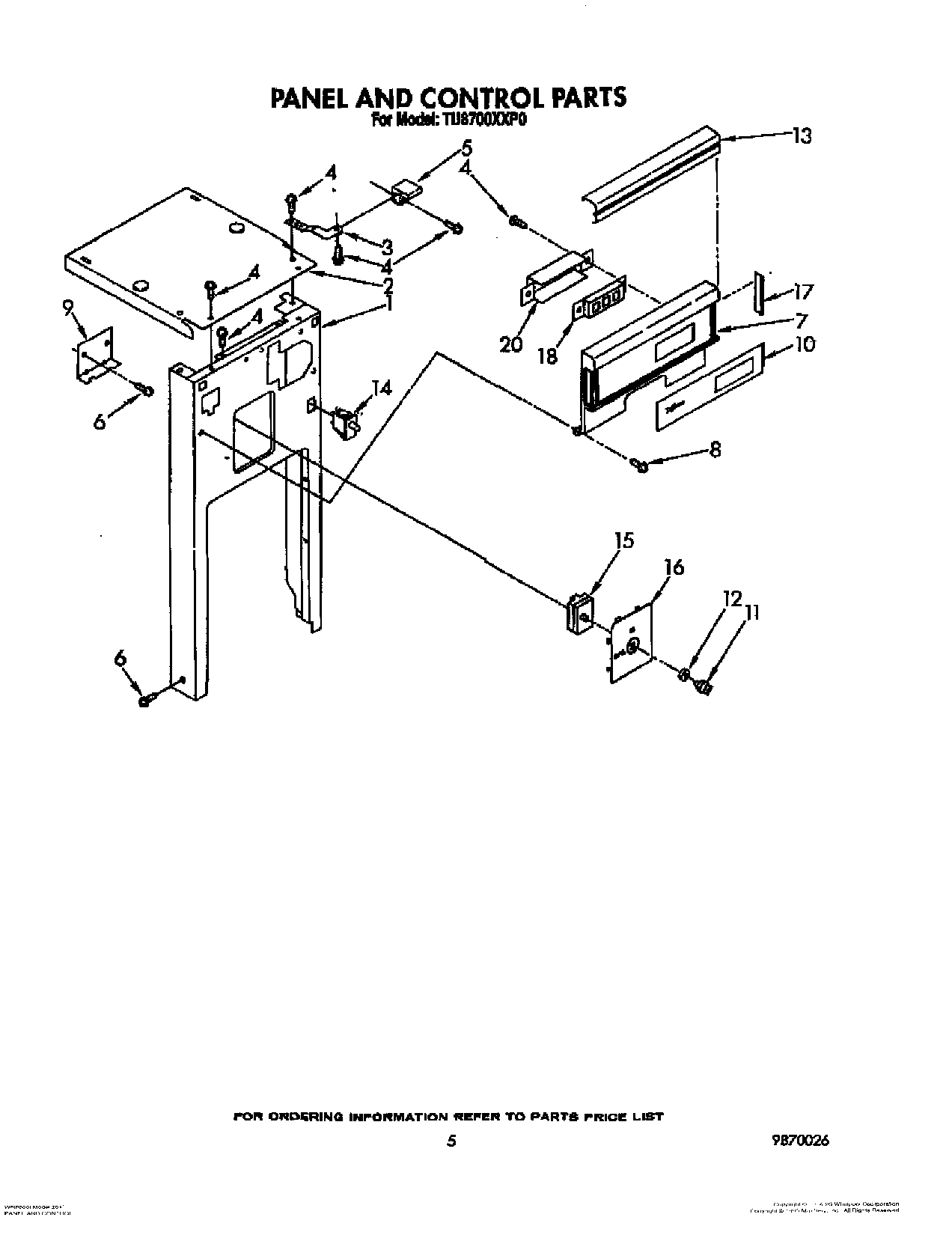

TU8700XXP0 05 – PANEL AND CONTROLadmin2025-04-26T12:58:42+00:00TU8700XXP0 05 – PANEL AND CONTROL
Products
| Position | Product |
|---|
| 1 | Panel, Front Frame |
| 2 | Cover, Top |
| 3 | W11729437 Whirlpool Retaining Bracket |
| 4 | Screw, 8-18 x 1/2 |
| 5 | WP780239 Whirlpool Compactor Bracket Retainer |
| 6 | WP489069 Whirlpool Compactor Screw |
| 7 | Escutcheon, Control |
| 8 | Screw, 6-20 x 3/8 (2) |
| 9 | Bracket, Protector |
| 10 | Insert, Decorative |
| 11 | WP4155141 Whirlpool Compactor Switch Knob |
| 12 | WP777383 Whirlpool Compactor Nut |
| 13 | Trim, Top |
| 14 | WP4387911 Whirlpool Refrigerator Switch |
| 15 | 777380 Whirlpool Compactor Switch |
| 16 | 9871161 Whirlpool Compactor Switch Plate |
| 17 | Trim, Side |
| 18 | W10856868 Whirlpool Compactor OFF Switch |
| 20 | Shield, Switch |
