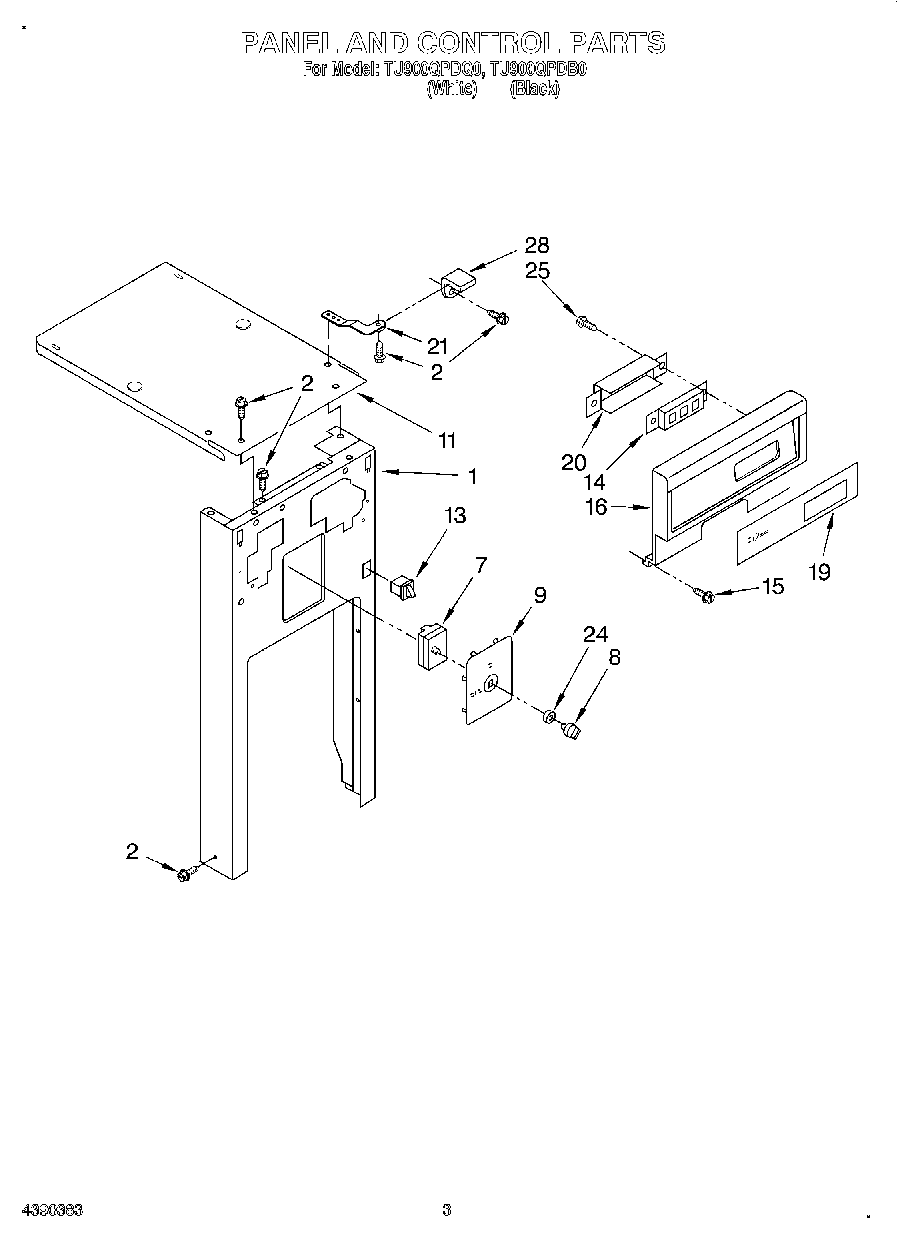

TU900QPDB0 03 – PANEL AND CONTROL
Written by
in
TU900QPDB0 03 – PANEL AND CONTROL
Products
Position
Product
1
9871073 Whirlpool Compactor Panel
1
Panel, Front Frame (Black)
2
WP489069 Whirlpool Compactor Screw
7
777380 Whirlpool Compactor Switch
8
WP4155141 Whirlpool Compactor Switch Knob
9
9870356 Whirlpool Compactor Switch Plate
9
9871161 Whirlpool Compactor Switch Plate
11
Cover, Top
13
WP4387911 Whirlpool Refrigerator Switch
14
Assembly, Switch (White)
14
Assembly, Switch (Black)
15
Screw, 6-20 x 3/8 (2)
16
Escutcheon, Control (Black)
16
Escutcheon, Control (White)
19
Insert, Decorative (White)
19
Insert, Decorative (Black)
20
Shield, Switch
21
W11729437 Whirlpool Retaining Bracket
24
WP777383 Whirlpool Compactor Nut
25
Screw, 8-18 x 1/2
28
WP780239 Whirlpool Compactor Bracket Retainer
←
