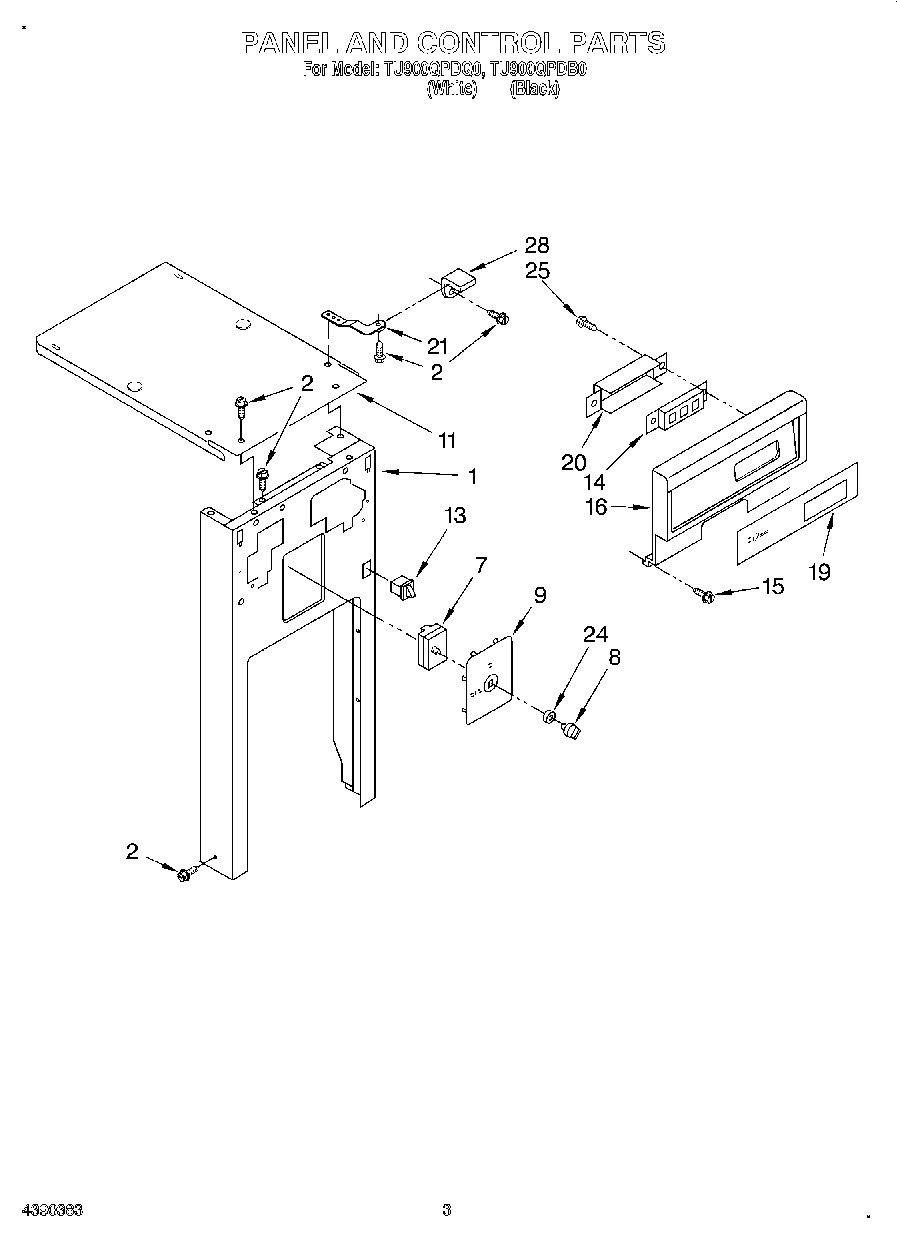

TU900QPDQ0 03 – PANEL AND CONTROL

Products

PositionProduct
19871073 Whirlpool Compactor Panel
1Panel, Front Frame (Black)
2WP489069 Whirlpool Compactor Screw
7777380 Whirlpool Compactor Switch
8WP4155141 Whirlpool Compactor Switch Knob
99870356 Whirlpool Compactor Switch Plate
99871161 Whirlpool Compactor Switch Plate
11Cover, Top
13WP4387911 Whirlpool Refrigerator Switch
14Assembly, Switch (White)
14Assembly, Switch (Black)
15Screw, 6-20 x 3/8 (2)
16Escutcheon, Control (Black)
16Escutcheon, Control (White)
19Insert, Decorative (White)
19Insert, Decorative (Black)
20Shield, Switch
21W11729437 Whirlpool Retaining Bracket
24WP777383 Whirlpool Compactor Nut
25Screw, 8-18 x 1/2
28WP780239 Whirlpool Compactor Bracket Retainer
