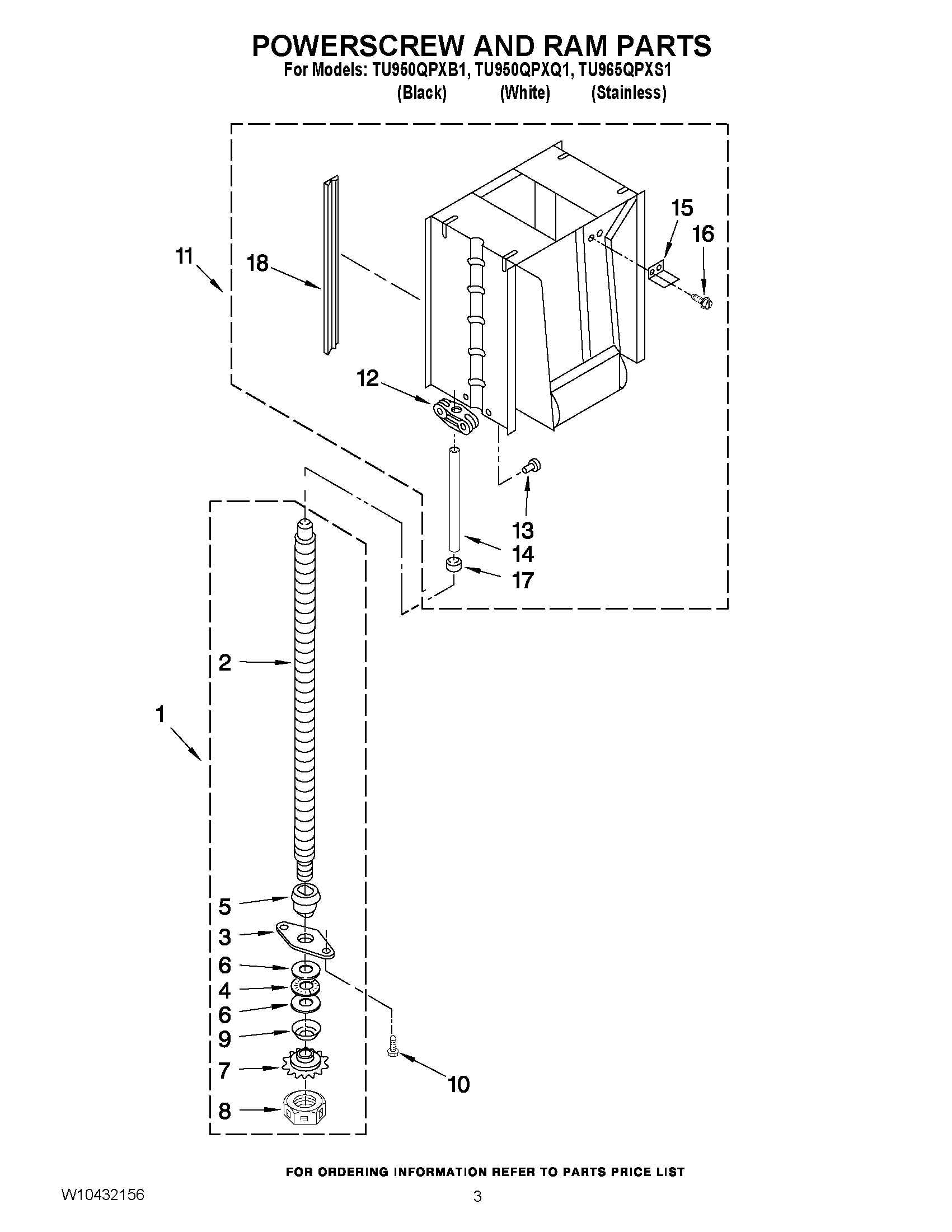

TU950QPXQ1 03 – POWERSCREW AND RAM PARTS

Products

Position	Product
1	WPW10451272 Whirlpool Trash Compactor Power Screw
2	CABINET (NOT A SERVICEABLE PART)
3	779121 Whirlpool Compactor Plate
4	W10917043 Whirlpool Compactor Bearing
5	776941 Whirlpool Compactor Power Crew Hub
6	775481 Whirlpool Compactor Bearing
7	SPROCKET
8	4154842 Whirlpool Compactor Nut
9	WP777332 Whirlpool Compactor Washer
10	WP8204624 Whirlpool Bolt
11	W11696573 Whirlpool Ram
12	WP9870163 Whirlpool Compactor Trunnion Nut
13	882694 Whirlpool Compactor Stud
14	WP9870037 Whirlpool Ram Stop
15	Bracket, Top Limit Switch
16	WP489399 Whirlpool Refrigerator Screw
17	WP9870775 Whirlpool Compactor Power Screw Cap
18	W10917246 Whirlpool Compactor RAM Slide
